FVAE2884A*B200

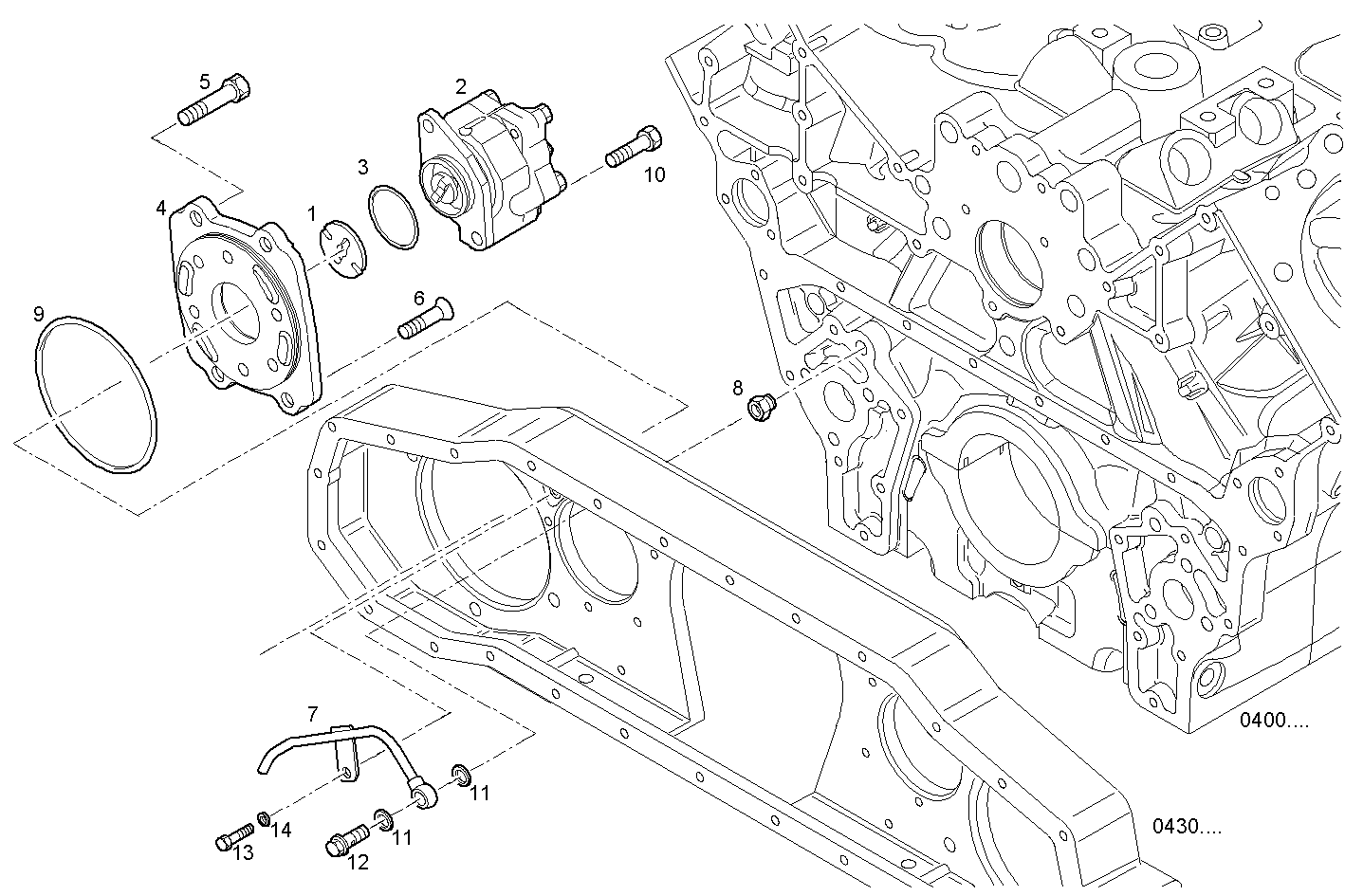

4270.003 POWER STEERING PUMP - 25dm3
| Item |
Part number |
Description |
|
1 |
504058399 |
FLEXIBLE COUPLING |
|
2 |
504102375 |
OIL PUMP-STEERING |
|
3 |
500324249 |
O-RING Ø46 MM |
|
4 |
504164274 |
SPACING BAR |
|
5 |
16588125 |
HEXAGON BOLT M12X35 MM |
|
6 |
17345924 |
C'SUNK SCREW |
|
7 |
504101003 |
OIL LINE |
|
8 |
504049545 |
THREADED UNION M10X1,5 |
|
9 |
17292581 |
O-RING Ø3,53X136,1 MM |
|
10 |
16675735 |
HEXAGON BOLT M10X25 MM |
|
11 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
12 |
4864079 |
SCREW CONNECTOR M10X1 |
|
13 |
16596924 |
HEXAGON BOLT M6X10 MM |
|
14 |
17094724 |
WASHER Ø6X12 MM |
