FVAE2884A*B201

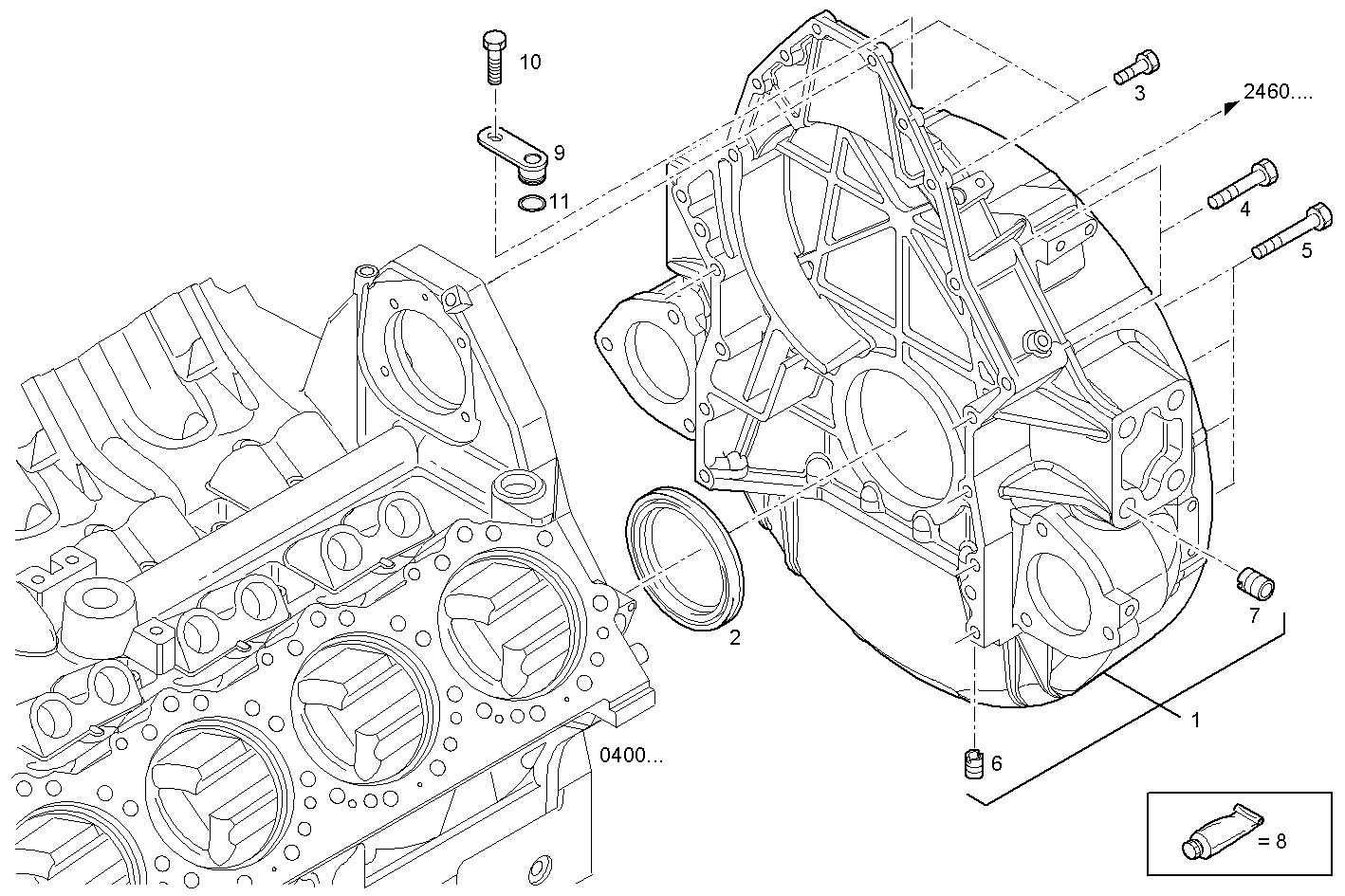

0435.005 FLYWHEEL HOUSING

Iveco/FPT FLYWHEEL HOUSING

Item Part number Description
1 504058121 REAR C.CASE COVER ASSY
2 504036095 SHAFT SEAL Ø135X160X13/14
3 16677935 HEXAGON BOLT
4 16681335 HEXAGON BOLT M14X90
5 16681534 HEXAGON BOLT M14X2X110
6 17873371 THREADED INSERT M10X1,5
7 500323467 THREADED INSERT
8 2992504 ADHESIVE/STICKER LOCTITE
9 504090317 COVER
10 16597925 HEXAGON BOLT M8X14 MM
11 17281681 O-RING Ø13,9 MM SP=2,6 MM
