FVAE2884A*B201

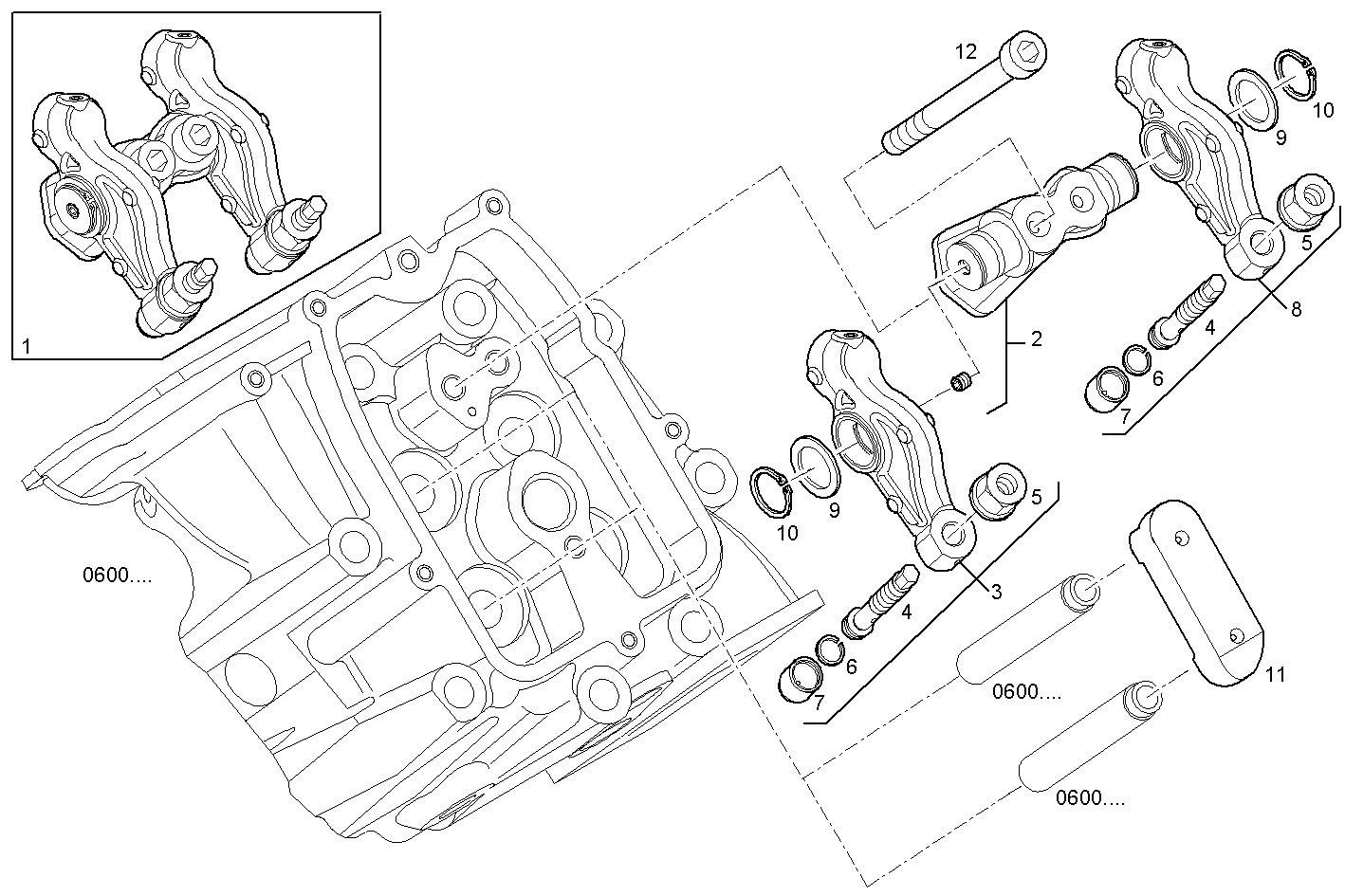

0668.013 ROCKER SHAFT
Item | Part number | Description |
---|---|---|
1 | 504089770 | ROCKER SHAFT ASSY |
2 | 504089771 | ROCKER BRACKET |
3 | 504089775 | ROCKER ARM EXHAUST |
4 | 98498411 | ROCKER ARM SCREW |
5 | 504076270 | ADJUSTING NUT |
6 | 17084376 | SPRING LOCKWASHER Ø52X2 |
7 | 500300903 | SLIDING SHOE |
8 | 504089773 | ROCKER ARM INTAKE |
9 | 504083339 | GASKET |
10 | 16866973 | SPRING LOCKWASHER Ø32 MM |
11 | 504027421 | VALVE BRIDGE |
12 | 504083443 | HEXAGON BOLT |
