FVAE2884A*B201

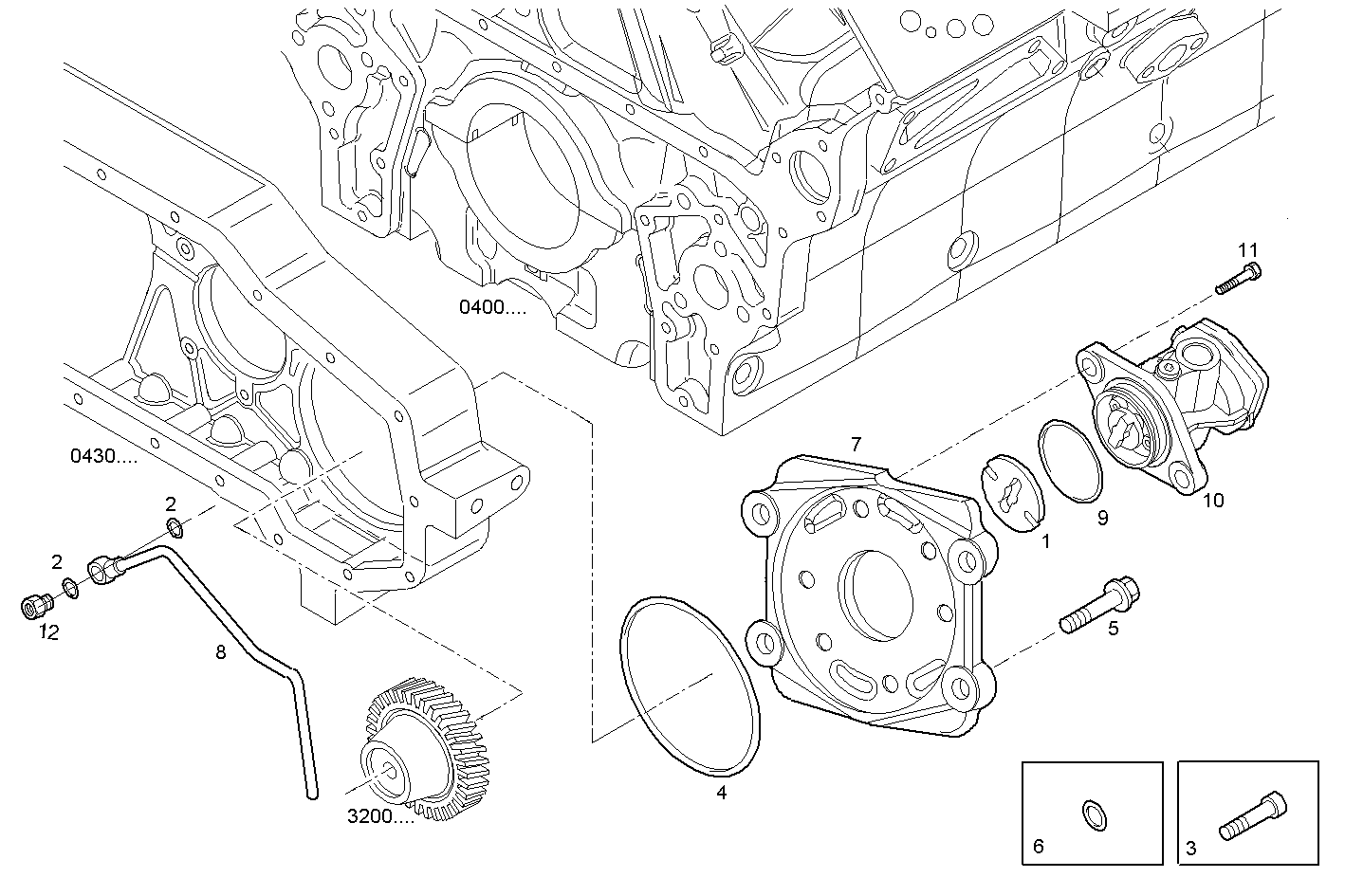

2010.056 FUEL PUMP - low pressure

Iveco/FPT FUEL PUMP

Item Part number Description
1 504058399 FLEXIBLE COUPLING
2 98474305 WASHER Ø10X17 MM SP=2,3
3 16596924 HEXAGON BOLT M6X10 MM
4 17292581 O-RING Ø3,53X136,1 MM
5 16588125 HEXAGON BOLT M12X35 MM
6 17094724 WASHER Ø6X12 MM
7 504088838 SPACING BAR
8 504101003 OIL LINE
9 504060288 O-RING
10 504129158 FUEL PUMP
11 16675735 HEXAGON BOLT M10X25 MM
12 504049545 THREADED UNION M10X1,5
