FVAE2884A*B201

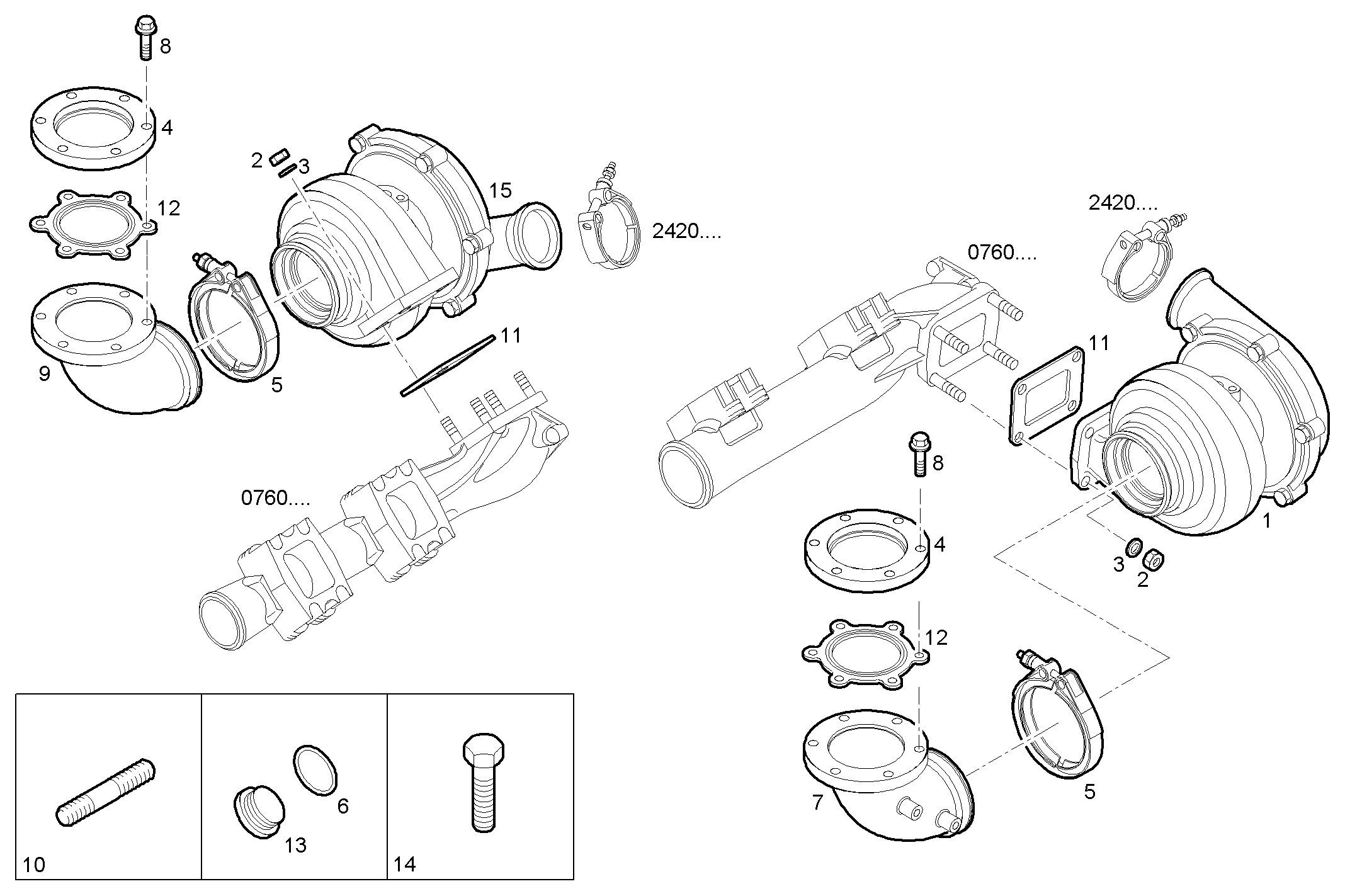

2400.272/01 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504193328 | TURBOCHARGER LEFT ASSY |
| 2 | 500300795 | HEXAGON NUT M10X1,5 |
| 3 | 17095024 | SPRING WASHER Ø10X18 MM |
| 4 | 504135410 | FLANGE |
| 5 | 500339542 | PIPE CLIP |
| 6 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 7 | 504225247 | EXHAUST PIPE LEFT |
| 8 | 99453959 | SCREW |
| 9 | 504225720 | EXHAUST PIPE RIGHT |
| 10 | 16729434 | STUD M8X25 MM |
| 11 | 504103435 | GASKET |
| 12 | 500387050 | GASKET |
| 13 | 16992315 | THREADED PLUG M14X1,5 |
| 14 | 16586577 | HEXAGON BOLT M8X30 MM |
| 15 | 504193327 | TURBOCHARGER RIGHT ASSY |
