FVAE2884A*B201

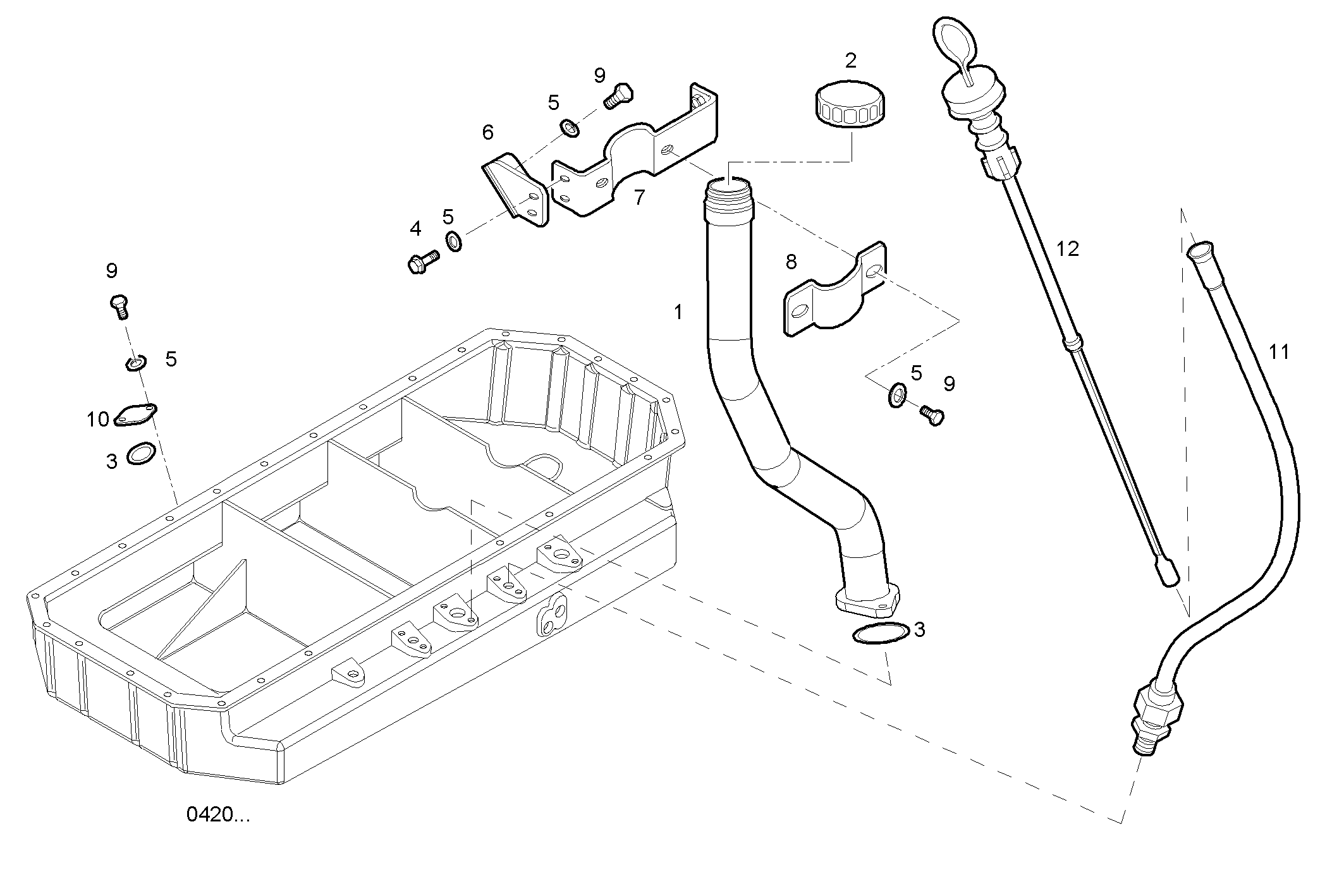

2700.010 OIL DIPSTICK & FILLER PIPE
Item | Part number | Description |
---|---|---|
1 | 8043087 | OIL FILLER PIPE |
2 | 98429552 | OIL FILLER PLUG |
3 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
4 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 8041233 | FASTENING BRACKET |
7 | 8043174 | RETAINER |
8 | 8043185 | RETAINER |
9 | 16605524 | HEXAGON BOLT M8X20 MM |
10 | 8041327 | FLANGE |
11 | 504204533 | OIL LEVEL TUBE |
12 | 504204534 | OIL DIPSTICK |
