FVAE2884A*B201

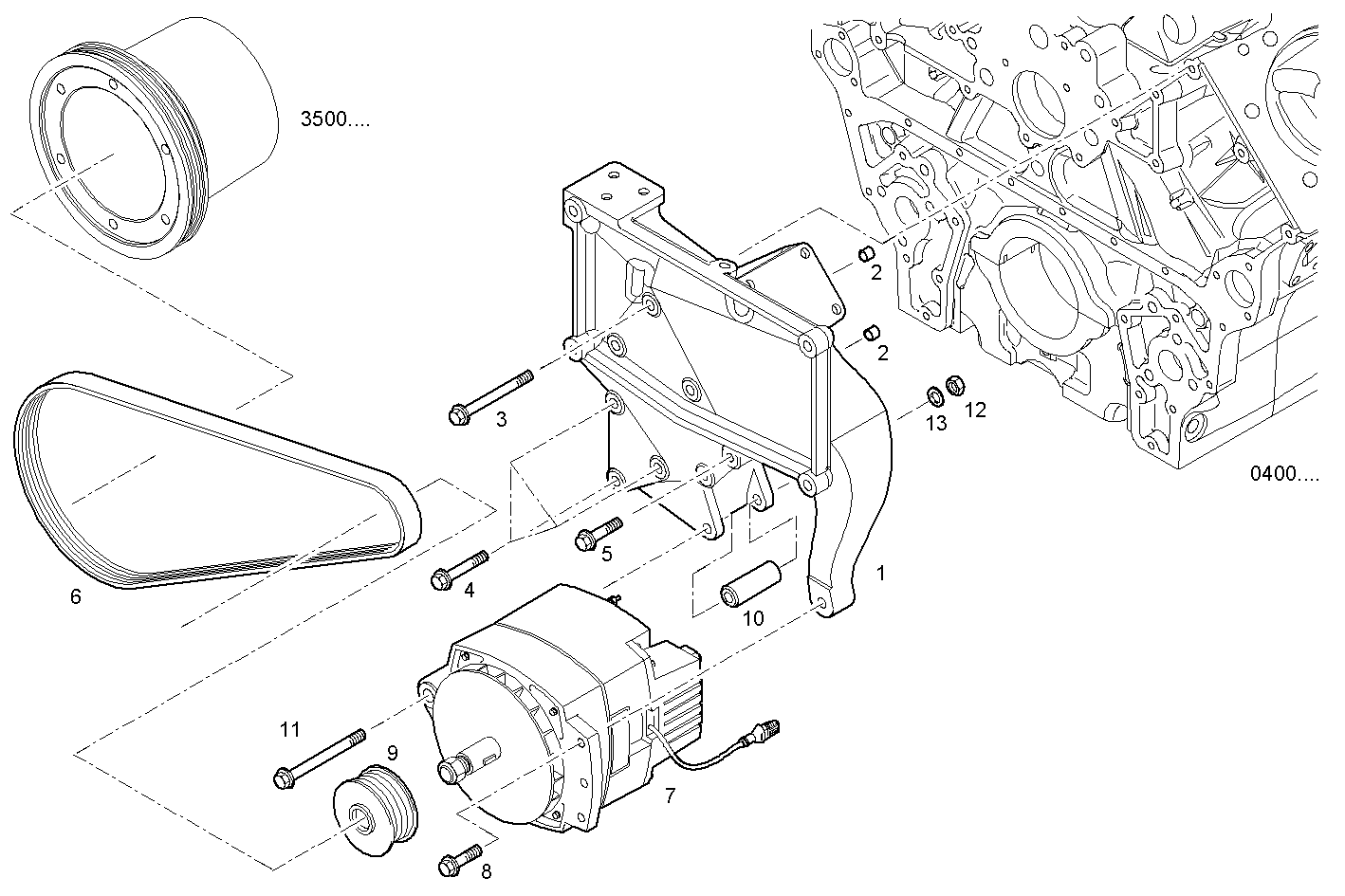

4000.194 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 504113909 | GENERATOR SUPPORT |
| 2 | 98405462 | DOWEL PIN Ø10,2 MM |
| 3 | 16677534 | HEXAGON BOLT M10X140 MM |
| 4 | 16676635 | HEXAGON BOLT M10X60 MM |
| 5 | 16675935 | HEXAGON BOLT M10X35 MM |
| 6 | 504113903 | ALTERNATOR BELT |
| 7 | 504204510 | ALTERNATOR |
| 8 | 504122237 | HEXAGON BOLT |
| 9 | 504113905 | GENERATOR PULLEY |
| 10 | 504042883 | SPACING BAR |
| 11 | 16600024 | HEXAGON BOLT M12X160 MM |
| 12 | 17038425 | HEXAGON NUT M12 (8) |
| 13 | 17095324 | WASHER Ø12X24 MM |
