FVAE2884X*B200

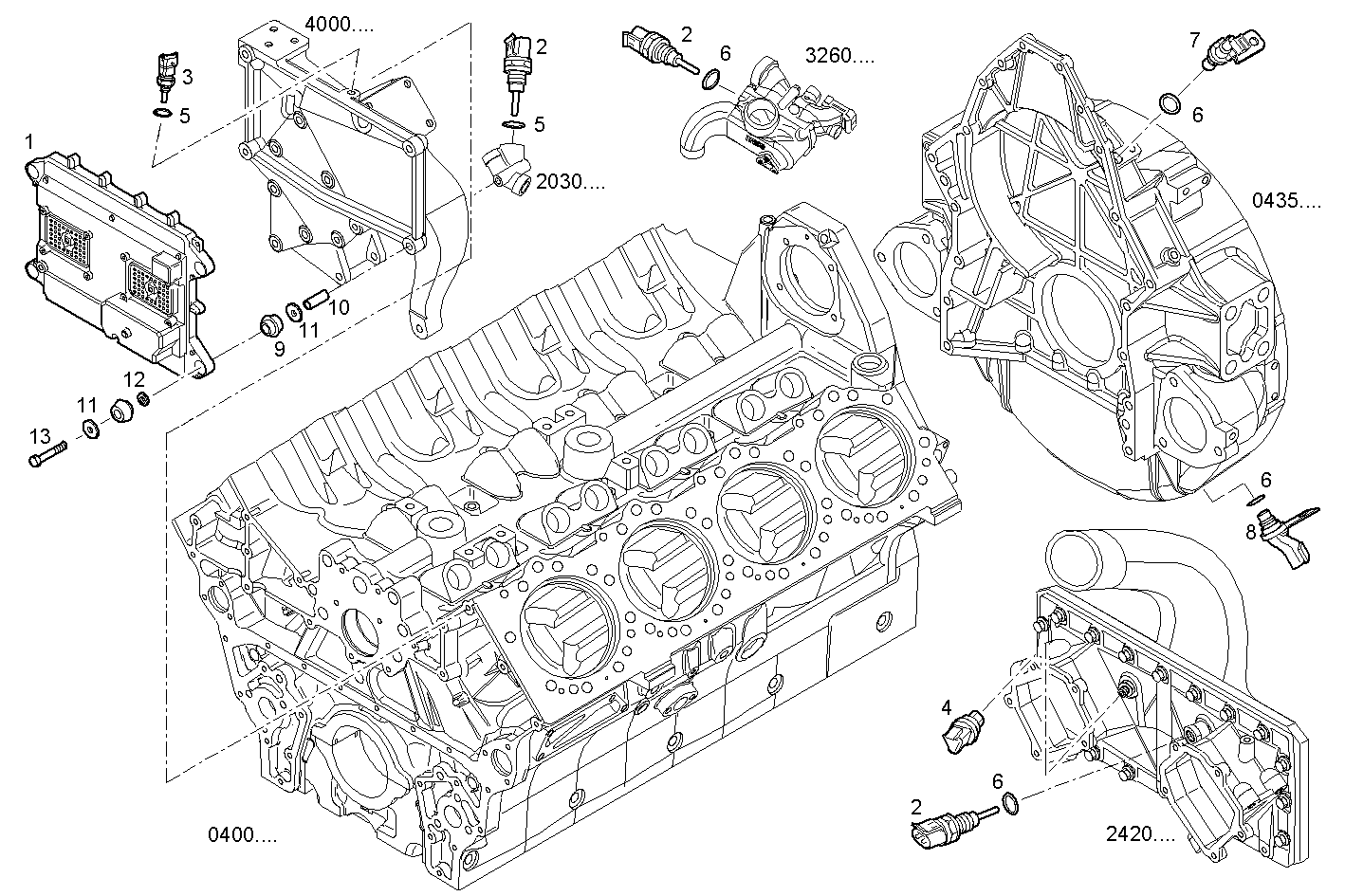

1700.067 ELECTRONIC CONTROL UNIT
| Item | Part number | Description |
|---|---|---|
| 1 | 504100097 | ELECTR.CONTR.UNIT |
| 2 | 504046224 | TEMP. TRANSMITTER 3/4" |
| 3 | 504046895 | TRANSMITTER Atmospheric pressure |
| 4 | 504046807 | TRANSMITTER Air pressure |
| 5 | 504047906 | SEAL GASKET |
| 6 | 504046225 | SEAL GASKET |
| 7 | 504037536 | TRANSMITTER Impulse |
| 8 | 504037537 | TRANSMITTER Impulse |
| 9 | 504050286 | RUBBER PAD |
| 10 | 504050285 | SPACING BAR |
| 11 | 504050287 | WASHER |
| 12 | 17281681 | O-RING Ø13,9 MM SP=2,6 MM |
| 13 | 16597924 | HEXAGON BOLT M8X14 MM |
