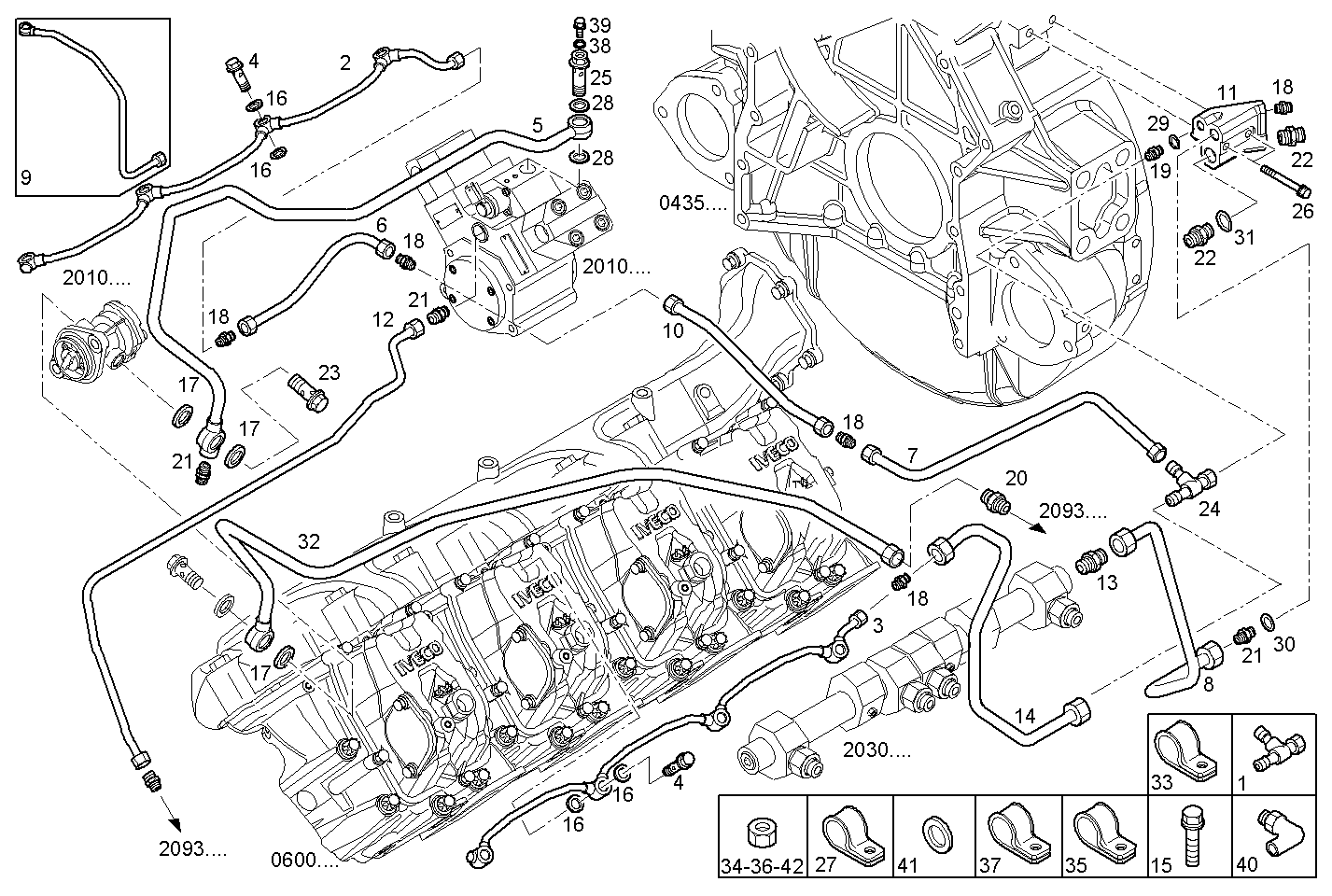

| Item |
Part number |
Description |
|
1 |
16504811 |
T-COUPLING |
|
2 |
504071550 |
FUEL LINE RIGHT |
|
3 |
504071551 |
FUEL LINE LEFT |
|
4 |
504034362 |
SCREW CONNECTOR M10X1,5 |
|
5 |
504147766 |
FUEL LINE from HPP to LPP |
|
6 |
504079220 |
FUEL LINE fuel return line |
|
7 |
504074221 |
FUEL LINE fuel return line |
|
8 |
504074227 |
FUEL LINE fuel return line |
|
9 |
504074230 |
FUEL LINE fuel return line |
|
10 |
504079223 |
FUEL LINE fuel return line |
|
11 |
504074653 |
CHOCK |
|
12 |
504230998 |
FUEL LINE from filter to HPP |
|
13 |
504074830 |
PIPE SOCKET M18 |
|
14 |
504074224 |
FUEL LINE fuel return line |
|
15 |
16592225 |
HEXAGON BOLT M8X55 MM |
|
16 |
99489016 |
SEAL GASKET Ø10X17 MM SP =1,5 |
|
17 |
99489020 |
SEAL GASKET Ø18X26 MM SP=1,5 MM |
|
18 |
16501611 |
PIPE SOCKET M14X1,5 |
|
19 |
16500114 |
THREADED UNION M12X1,5 - M14X1,5 |
|
20 |
16500214 |
THREADED UNION M14X1,5/M16X1,5 |
|
21 |
41031569 |
THREADED UNION M16X1,5 - M18X1,5 MM" |
|
22 |
16500514 |
THREADED UNION M22X1,5 - M26X1,5 |
|
23 |
4864085 |
SCREW CONNECTOR M18X1,5 |
|
24 |
16504614 |
T-COUPLING M14X1,5 |
|
25 |
504121629 |
SCREW CONNECTOR |
|
26 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
27 |
10450090 |
PIPE CLIP Ø8 MM |
|
28 |
99469378 |
WASHER Ø22X30 MM |
|
29 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
30 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
31 |
99489022 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
|
32 |
504231356 |
FUEL LINE from LPP to filter |
|
33 |
17316590 |
PIPE CLIP Ø12 MM |
|
34 |
16506915 |
NUT M18X1,5 |
|
35 |
10450590 |
PIPE CLIP Ø18 MM |
|
36 |
17044735 |
NUT M8 |
|
37 |
17316690 |
FASTENING BRACKET Ø20,5 MM |
|
38 |
99489017 |
SEAL GASKET Ø12X20 MM SP=1,5 MM |
|
39 |
504144621 |
THREADED PLUG M12X1 |
|
40 |
16502714 |
ELBOW COUPLING M16X1,5 |
|
41 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
42 |
16508815 |
NUT |
