FVAE2884X*B200

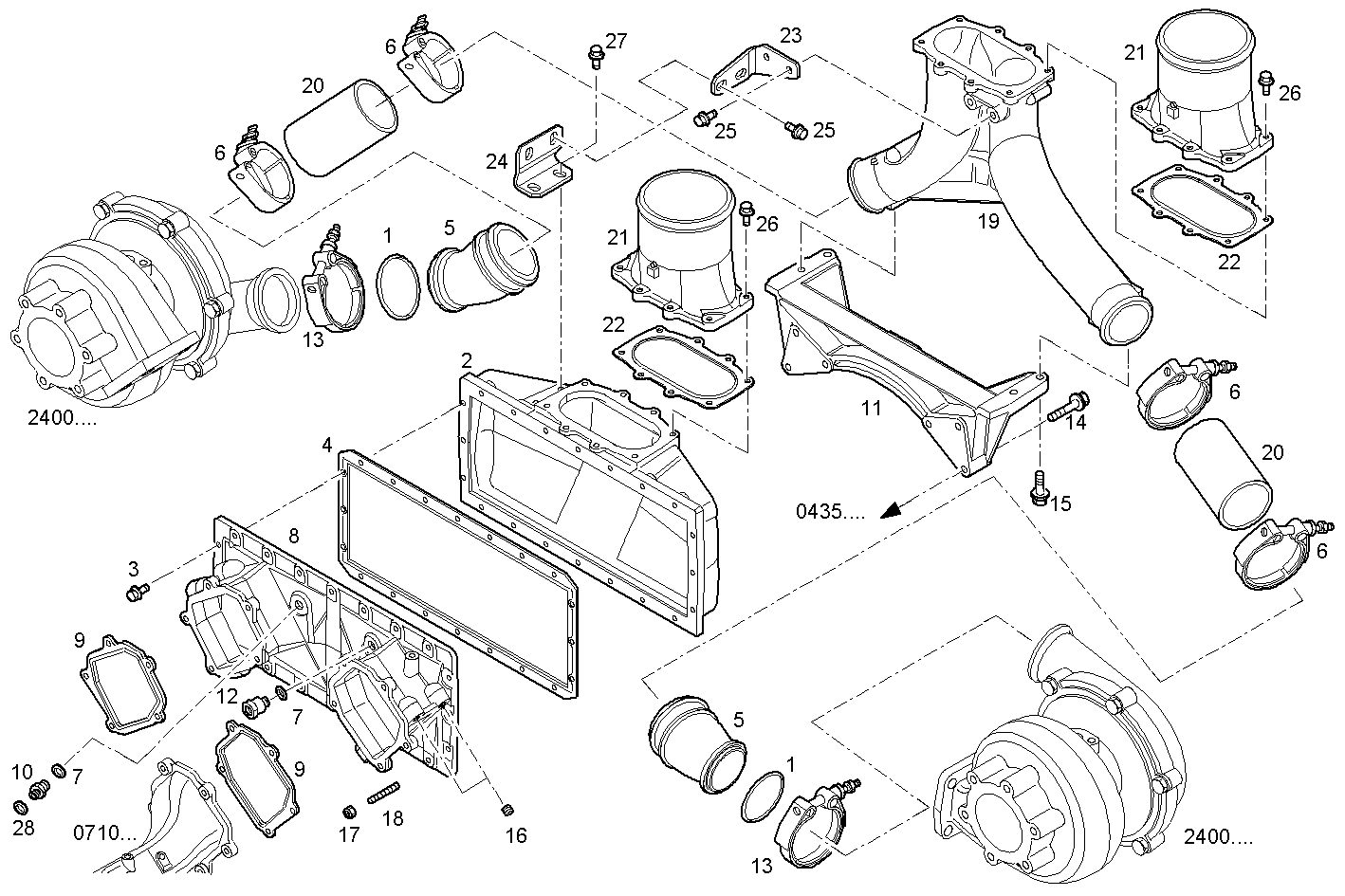

2420.256 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
2 504113882 AIR HOOD
3 504049513 HEXAGON BOLT
4 504044894 GASKET
5 504090263 AIR PIPE/DUCT
6 17769094 CLIP
7 99489019 WASHER Ø16X24 MM SP=1,5 MM
8 504074096 AIR HOOD
9 504048947 GASKET
10 504044568 THREADED UNION M16X1,5-7/16"
11 504086170 SUPPORT
12 504044567 THREADED UNION
13 504073342 CLIP
14 16587825 HEXAGON BOLT M10X1,5X60 MM
15 16587325 HEXAGON BOLT M10X35 MM
16 17847870 THREADED INSERT M8
17 17044725 HEXAGON NUT M8
18 16729424 STUD M8X1,25X25
19 504113895 AIR HOOD
20 504104715 RUBBER SLEEVE
21 504113884 AIR PIPE/DUCT
22 504117545 FLAT ENGINE GASKET
23 504117957 SUPPORT
24 504117969 SUPPORT
25 16600224 HEXAGON BOLT M8X1,25X18 MM
26 16673735 HEXAGON BOLT M8X25 MM
27 16673635 HEXAGON BOLT M8X1.25X20
28 504046227 SEAL GASKET
