FVAE2884X*B200

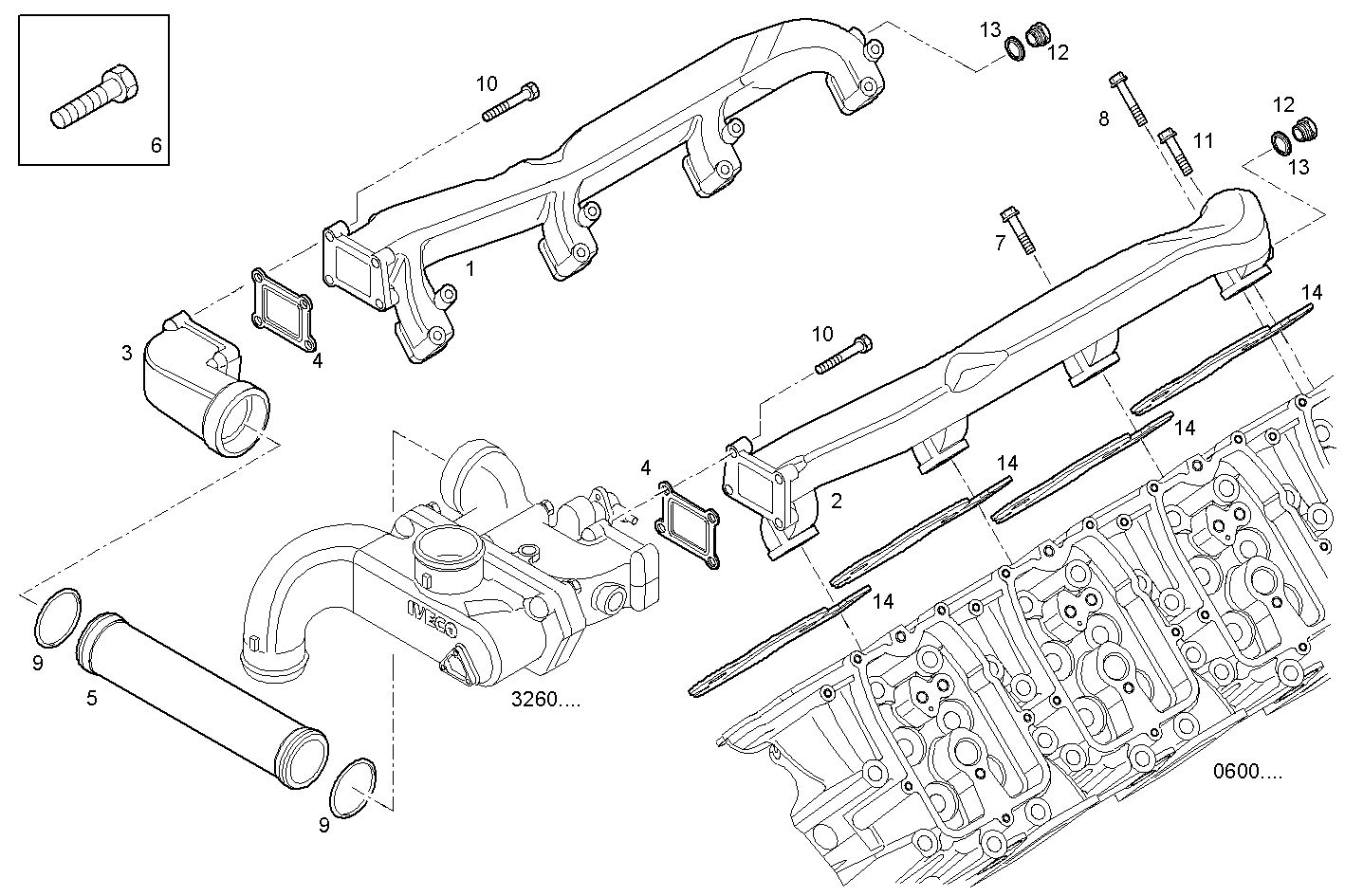

3230.040 WATER PIPE - water manifold
| Item | Part number | Description |
|---|---|---|
| 1 | 504208988 | WATER MANIFOLD RIGHT |
| 2 | 504208989 | WATER MANIFOLD LEFT |
| 3 | 504044298 | WATER PIPE |
| 4 | 504049041 | INTAKE ELBOW GASK. |
| 5 | 504096325 | WATER PIPE |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 504067723 | HEXAGON BOLT M8X1,25X60 MM |
| 8 | 504067722 | HEXAGON BOLT M8X1,25X75 MM |
| 9 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
| 10 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 11 | 16592424 | HEXAGON BOLT M8X65 MM |
| 12 | 16992315 | THREADED PLUG M14X1,5 |
| 13 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 14 | 504044304 | INTAKE ELBOW GASK. |
