FVAE2884X*B200

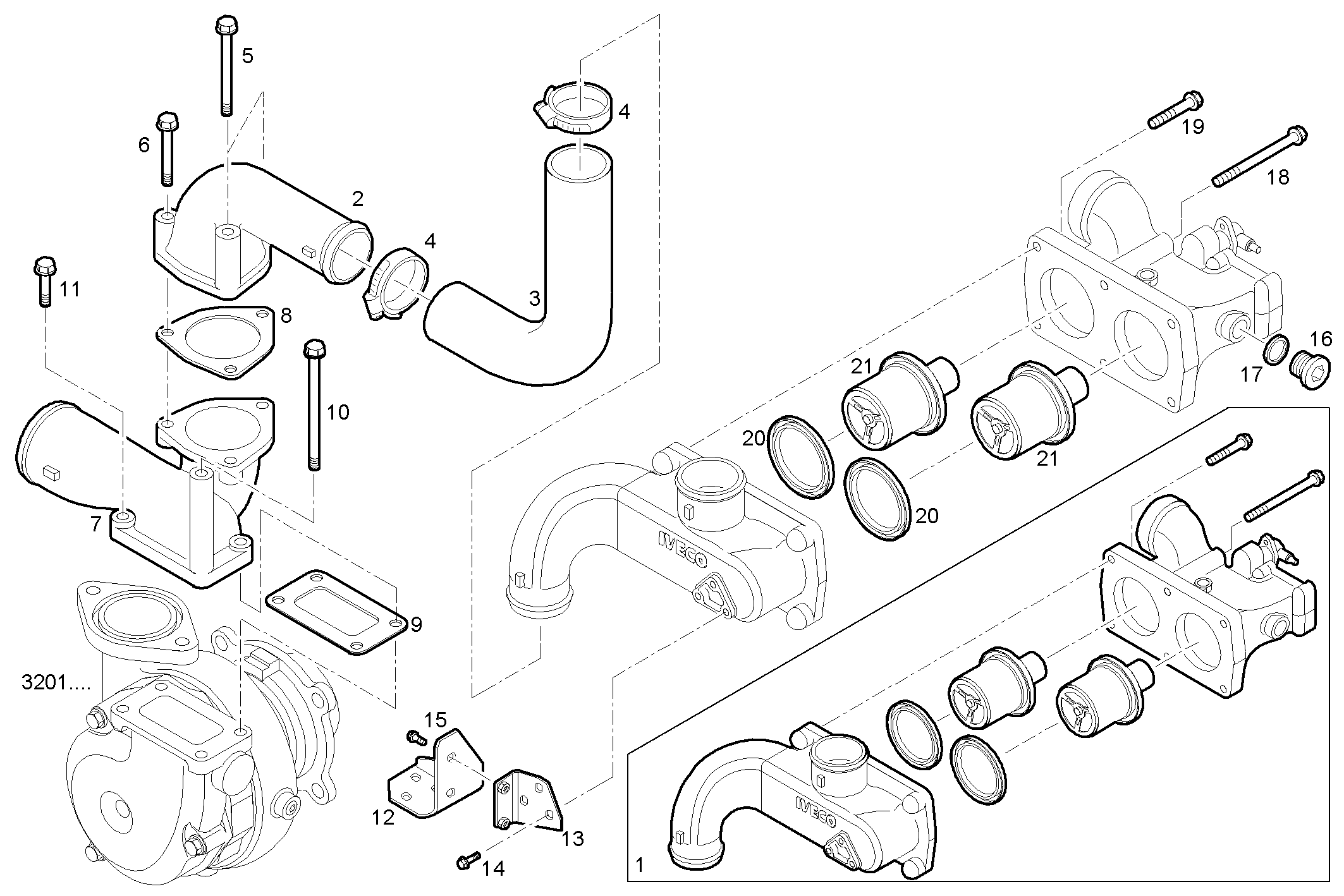

3260.011 TEMPERATURE REGULATOR

Iveco/FPT TEMPERATURE REGULATOR

Item Part number Description
1 504114244 THERMOSTAT BODY
2 504096035 WATER PIPE
3 504095578 WATER HOSE
4 18088392 CLIP Ø16/25 MM
5 16592525 HEXAGON BOLT M8X70 MM
6 16586725 HEXAGON BOLT M8X1.25X40 MM
7 504096634 WATER PIPE
8 504096749 FLAT ENGINE GASKET
9 504065725 FLAT ENGINE GASKET
10 16673735 HEXAGON BOLT M8X25 MM
11 16598224 HEXAGON BOLT M8X90 MM
12 504117010 SUPPORT
13 504117048 SUPPORT
14 16586225 HEXAGON BOLT M8X1,25X16 MM
15 16600224 HEXAGON BOLT M8X1,25X18 MM
16 16993311 THREADED PLUG M18X1,5
17 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
18 16592625 HEXAGON BOLT M8X80 MM
20 8039230 WASHER
21 504114246 THERMOSTAT
