FVAE2884X*B200

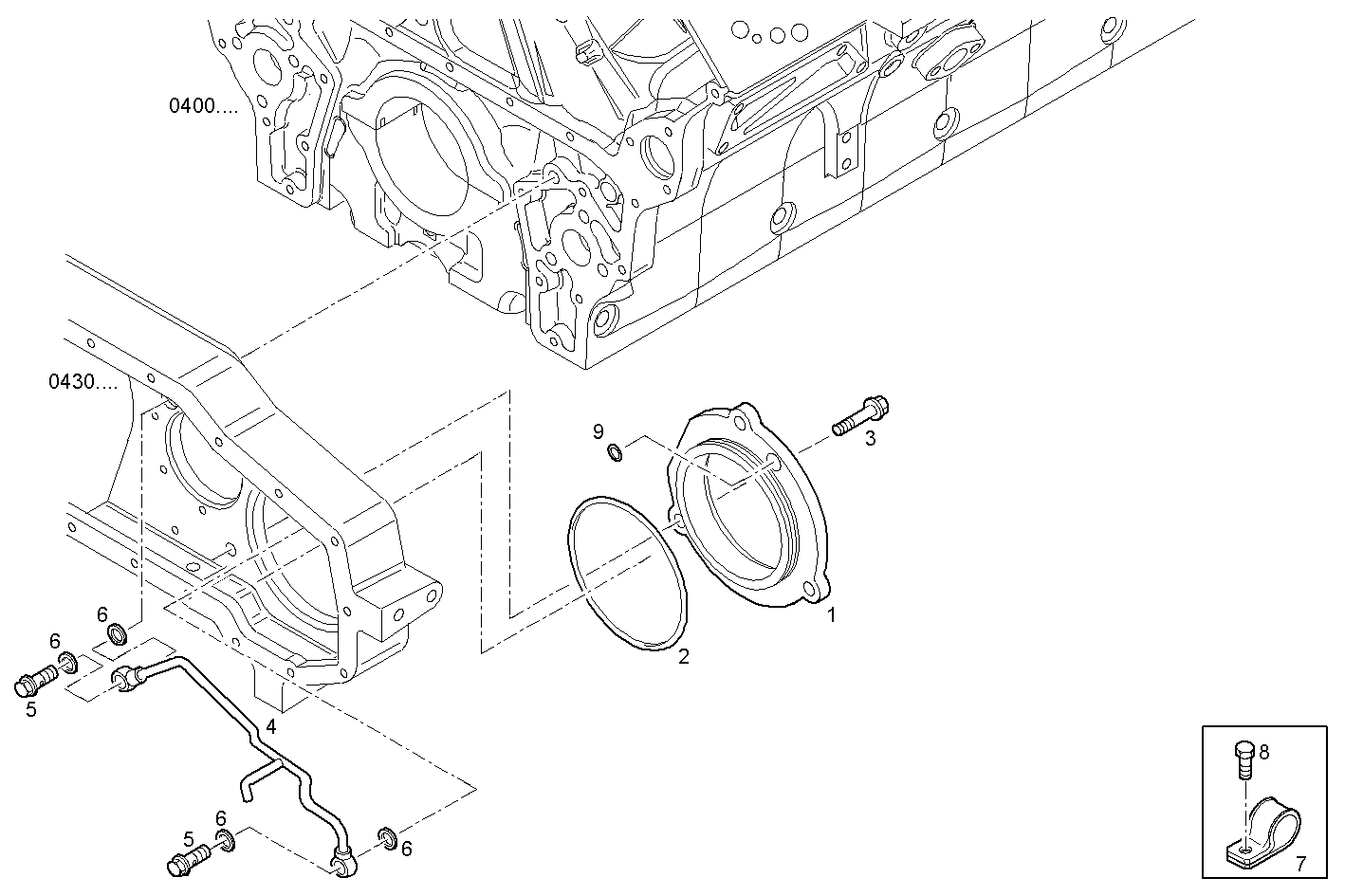

3800.048 AIR COMPRESSOR - without compressor
| Item | Part number | Description |
|---|---|---|
| 1 | 504093845 | COVER |
| 2 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
| 3 | 16587925 | HEXAGON BOLT |
| 4 | 504050100 | OIL LINE |
| 5 | 4864079 | SCREW CONNECTOR M10X1 |
| 6 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
| 7 | 17314590 | RETAINER Ø6 MM |
| 8 | 16596924 | HEXAGON BOLT M6X10 MM |
| 9 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
