Catalogue Menu

FVAE2885X*A100

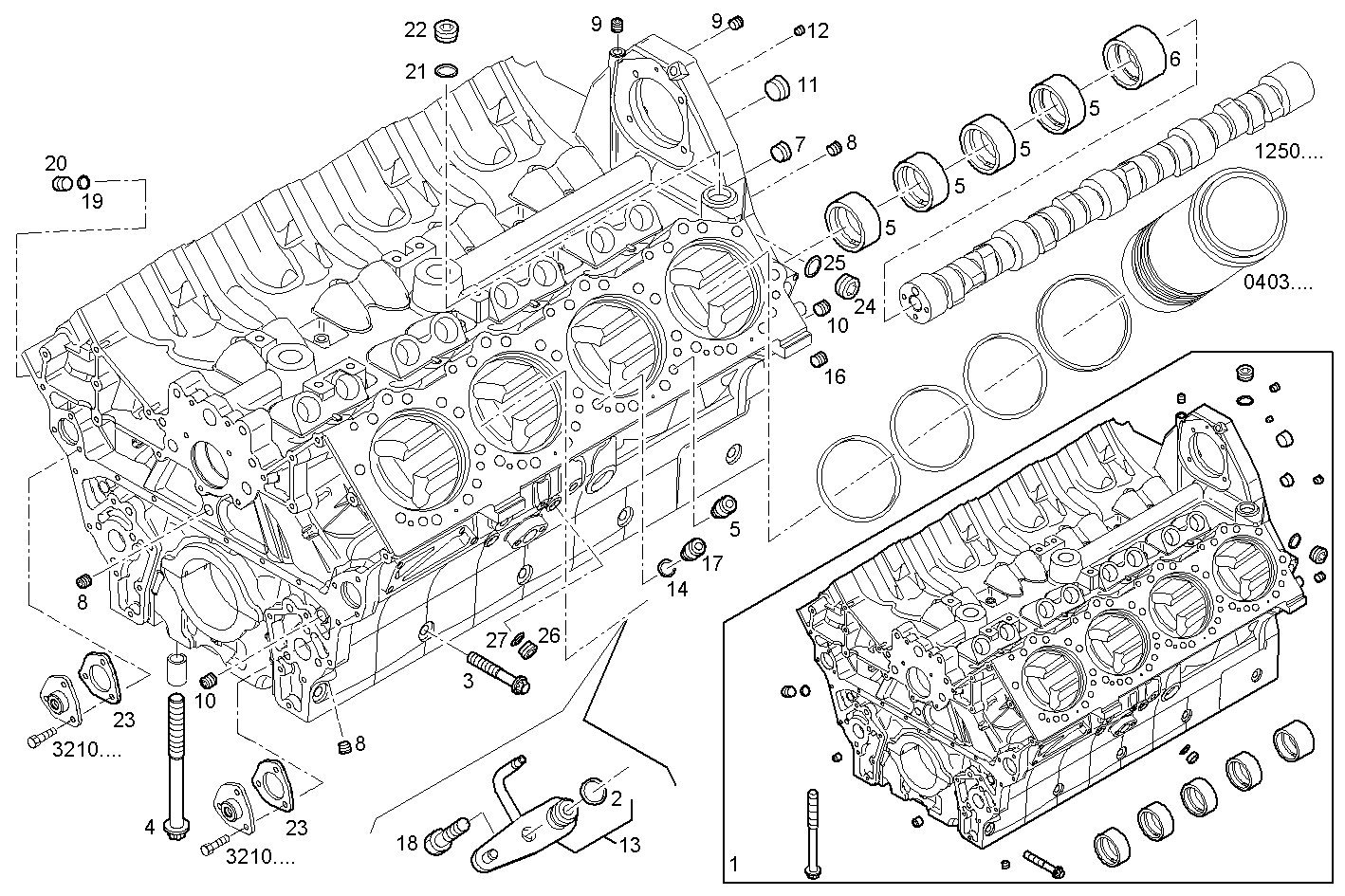

0401.048 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 504116336 CRANKCASE ASSY
2 17278081 O-RING Ø10,82X1,78 MM
3 504030440 HEXAGON BOLT
4 504116246 CRAHKSFT.BEAR.STUD
5 504029407 CAMSHAFT BEARING
6 504029406 CAMSHAFT BEARING
7 98475100 THREADED PLUG R3/4x12
8 504051237 THREADED PLUG DIAM=1/4"
9 504051236 THREADED PLUG DIAM=1/8"
10 504051238 THREADED PLUG DIAM=3/8"
11 16995111 THREADED PLUG M35X1,5
12 504036758 SCREW
13 504034779 OIL NOZZLE
14 17277981 O-RING 1,78x9,25
15 17275610 DOWEL PIN
16 10838010 DOWEL PIN Ø16 MM
17 4671990 DOWEL PIN
18 16586225 HEXAGON BOLT M8X1,25X16 MM
19 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
20 16993315 THREADED PLUG
21 99469380 SEAL GASKET Ø35 MM
22 16993715 THREADED PLUG
23 504045914 FLAT ENGINE GASKET
