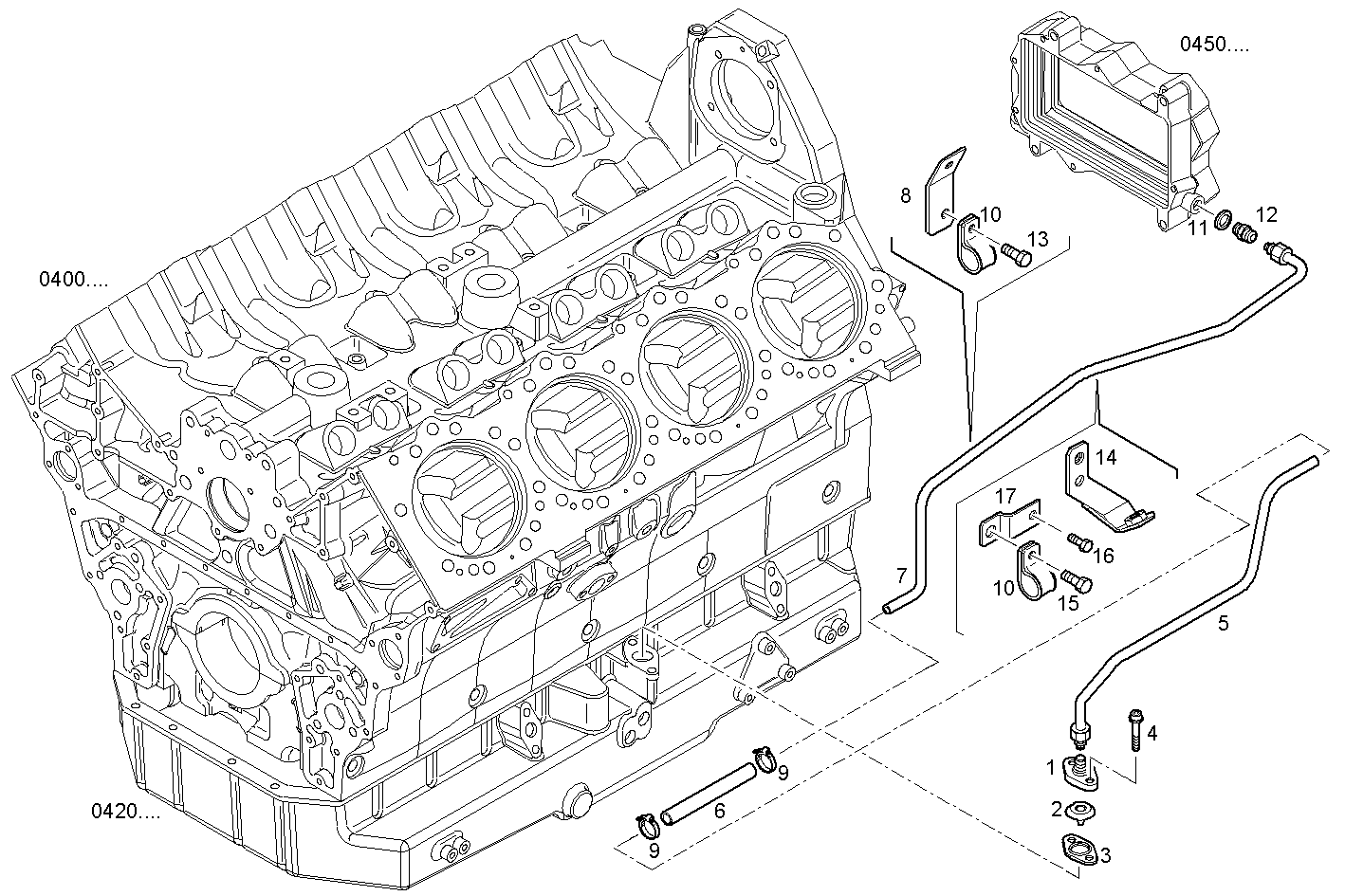

| Item |
Part number |
Description |
|
1 |
504075263 |
PIPE SOCKET |
|
2 |
504036532 |
VALVE |
|
3 |
504075235 |
FLAT ENGINE GASKET |
|
4 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
5 |
504090876 |
PIPE |
|
6 |
504085915 |
RUBBER SLEEVE |
|
7 |
504090877 |
PIPE |
|
8 |
504090878 |
RETAINER |
|
9 |
18088392 |
CLIP Ø16/25 MM |
|
10 |
17316592 |
PIPE CLIP |
|
11 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
12 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
|
13 |
18138325 |
HEXAGON BOLT M8X16 MM |
|
14 |
504093757 |
SUPPORT |
|
15 |
16586225 |
HEXAGON BOLT M8X1,25X16 MM |
|
16 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
17 |
99481827 |
FASTENING BRACKET |
