FVQE2883X*A201

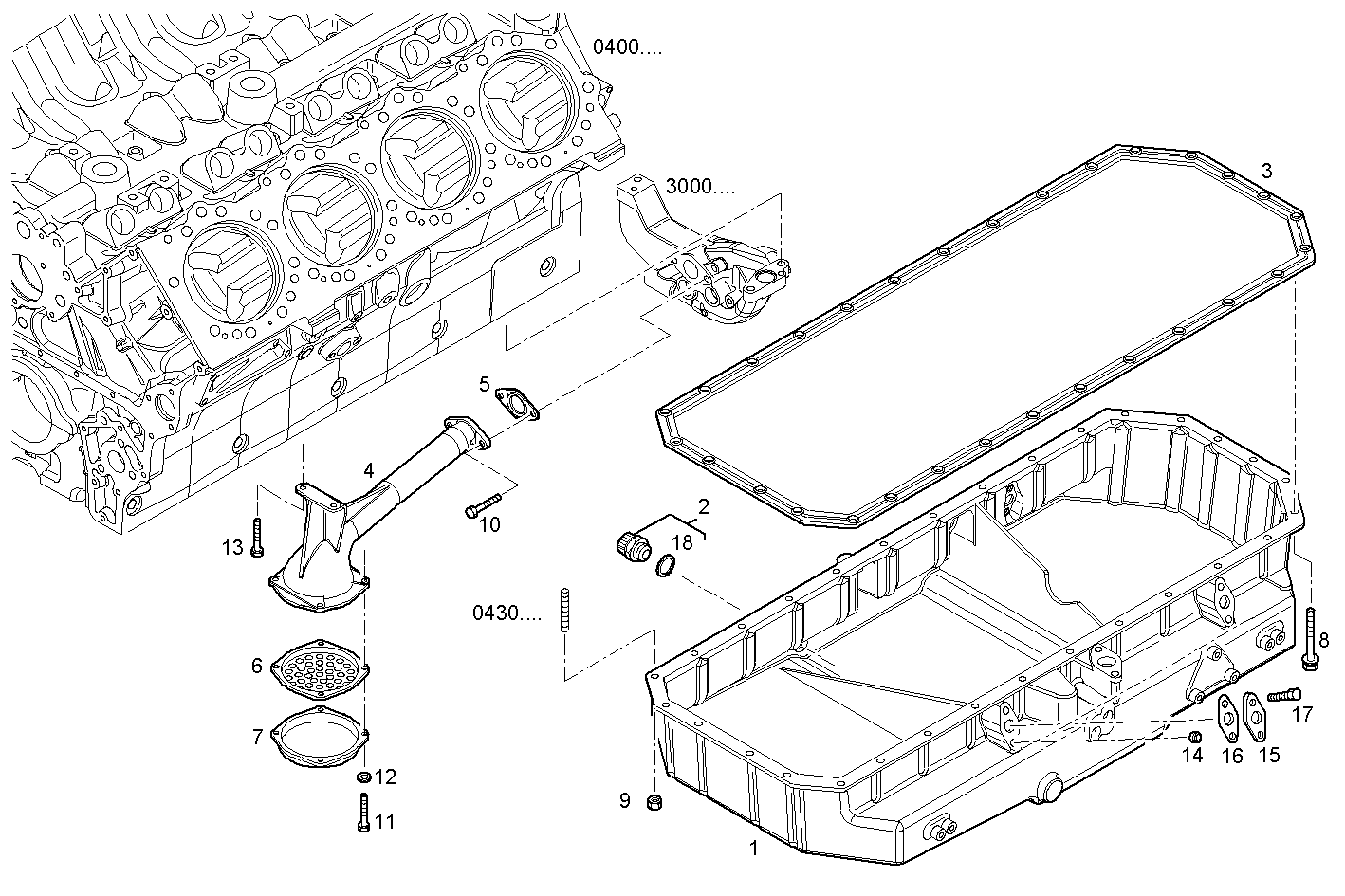

0420.166 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504037385 | OIL SUMP |
| 2 | 504053131 | PLUG |
| 3 | 504041342 | OIL SUMP GASKET |
| 4 | 504036732 | SUCTION STRAINER |
| 5 | 504043473 | FLAT ENGINE GASKET |
| 6 | 4673581 | FILTER |
| 7 | 4673582 | FASTENING RING |
| 8 | 504049517 | SCREW M10X1,5X90 MM |
| 9 | 17044825 | HEXAGON NUT M10 |
| 10 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 11 | 16605534 | HEXAGON BOLT M8X20 MM (10.9) |
| 12 | 1708957C | WASHER Ø8X16 MM |
| 13 | 16673735 | HEXAGON BOLT M8X25 MM |
| 14 | 17847870 | THREADED INSERT M8 |
| 15 | 4798805 | COVER |
| 16 | 4864034 | FLAT ENGINE GASKET |
| 17 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 18 | 18064760 | GASKET Ø30X36 MM |
