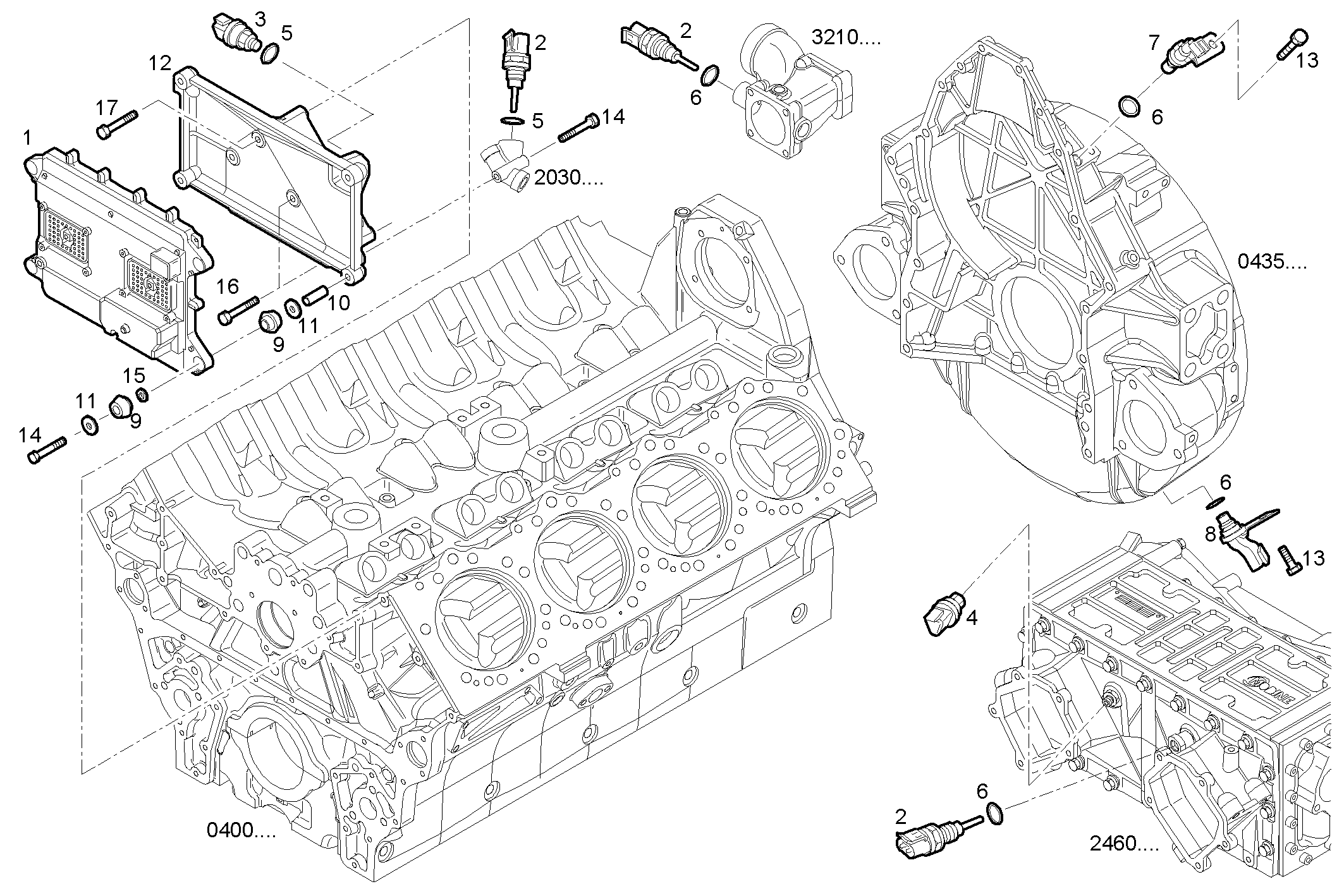

| Item |
Part number |
Description |
|
1 |
504100097 |
ELECTR.CONTR.UNIT |
|
2 |
504046224 |
TEMP. TRANSMITTER 3/4" |
|
3 |
504046895 |
TRANSMITTER Atmospheric pressure |
|
4 |
504046807 |
TRANSMITTER Air pressure |
|
5 |
504047906 |
SEAL GASKET |
|
6 |
504046225 |
SEAL GASKET |
|
7 |
504037536 |
TRANSMITTER Impulse |
|
8 |
504037537 |
TRANSMITTER Impulse |
|
9 |
504050286 |
RUBBER PAD |
|
10 |
504050285 |
SPACING BAR |
|
11 |
504050287 |
WASHER |
|
12 |
504065616 |
SUPPORT |
|
13 |
16597925 |
HEXAGON BOLT M8X14 MM |
|
14 |
16586825 |
HEXAGON BOLT M8X1.25X45 MM |
|
15 |
17281681 |
O-RING Ø13,9 MM SP=2,6 MM |
|
16 |
16593125 |
HEXAGON BOLT M10X100 MM |
|
17 |
16598325 |
HEXAGON BOLT M8X100 MM |
