FVQE2883X*A201

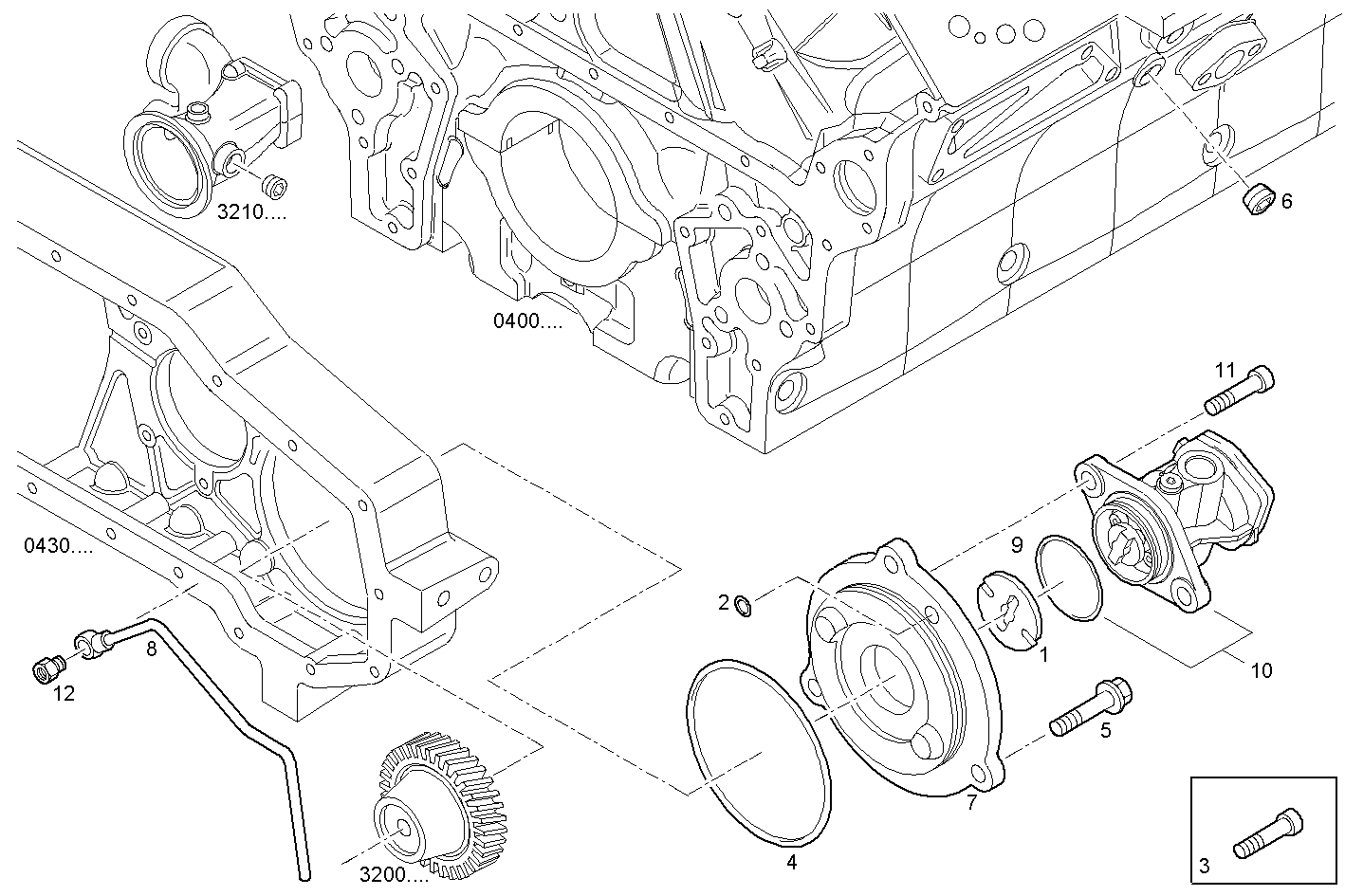

2010.041 FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504058399 | FLEXIBLE COUPLING |
| 2 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 3 | 16693924 | CYLIND-HEAD SCREW M12X35MM |
| 4 | 17292381 | O-RING Ø129,8 MM SP=3,53 MM |
| 5 | 16596924 | HEXAGON BOLT M6X10 MM |
| 6 | 504060846 | THREADED UNION |
| 7 | 504058403 | SPACING BAR |
| 8 | 504059218 | OIL LINE ASSY |
| 9 | 504060288 | O-RING |
| 10 | 504129158 | FUEL PUMP |
| 11 | 16675934 | HEXAGON BOLT |
| 12 | 504049545 | THREADED UNION M10X1,5 |
