FVQE2883X*A201

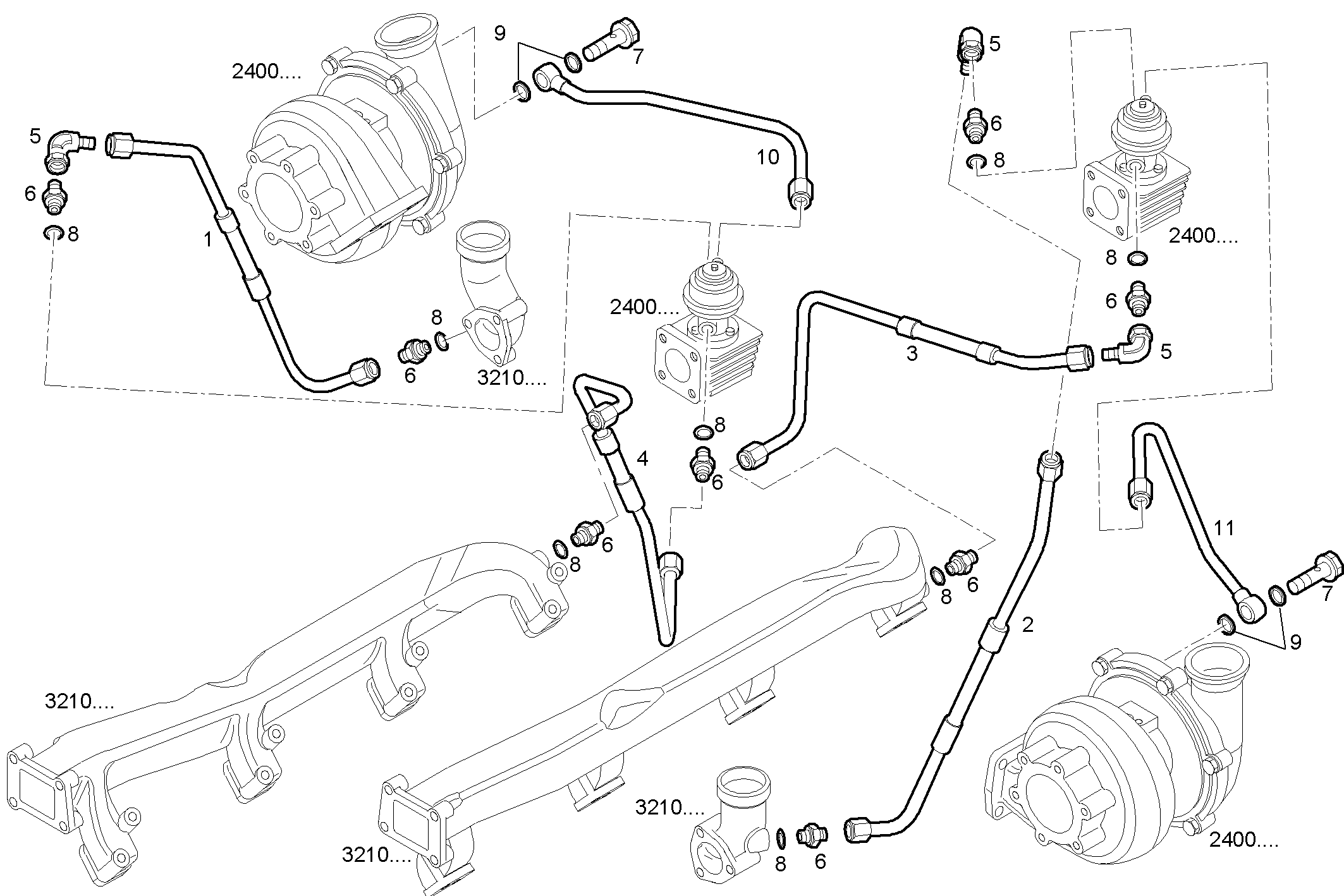

2400.192/03 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 504168117 | WATER PIPE |
| 2 | 504168114 | WATER PIPE |
| 3 | 504168116 | WATER PIPE |
| 4 | 504168115 | WATER PIPE |
| 5 | 16504015 | ELBOW COUPLING M16X1,5 |
| 6 | 16500214 | THREADED UNION M14X1,5/M16X1,5 |
| 7 | 504078369 | SCREW CONNECTOR M8 |
| 8 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 9 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 10 | 504079888 | AIR PIPE/DUCT |
| 11 | 504079885 | AIR PIPE/DUCT |
