FVQE2883X*A201

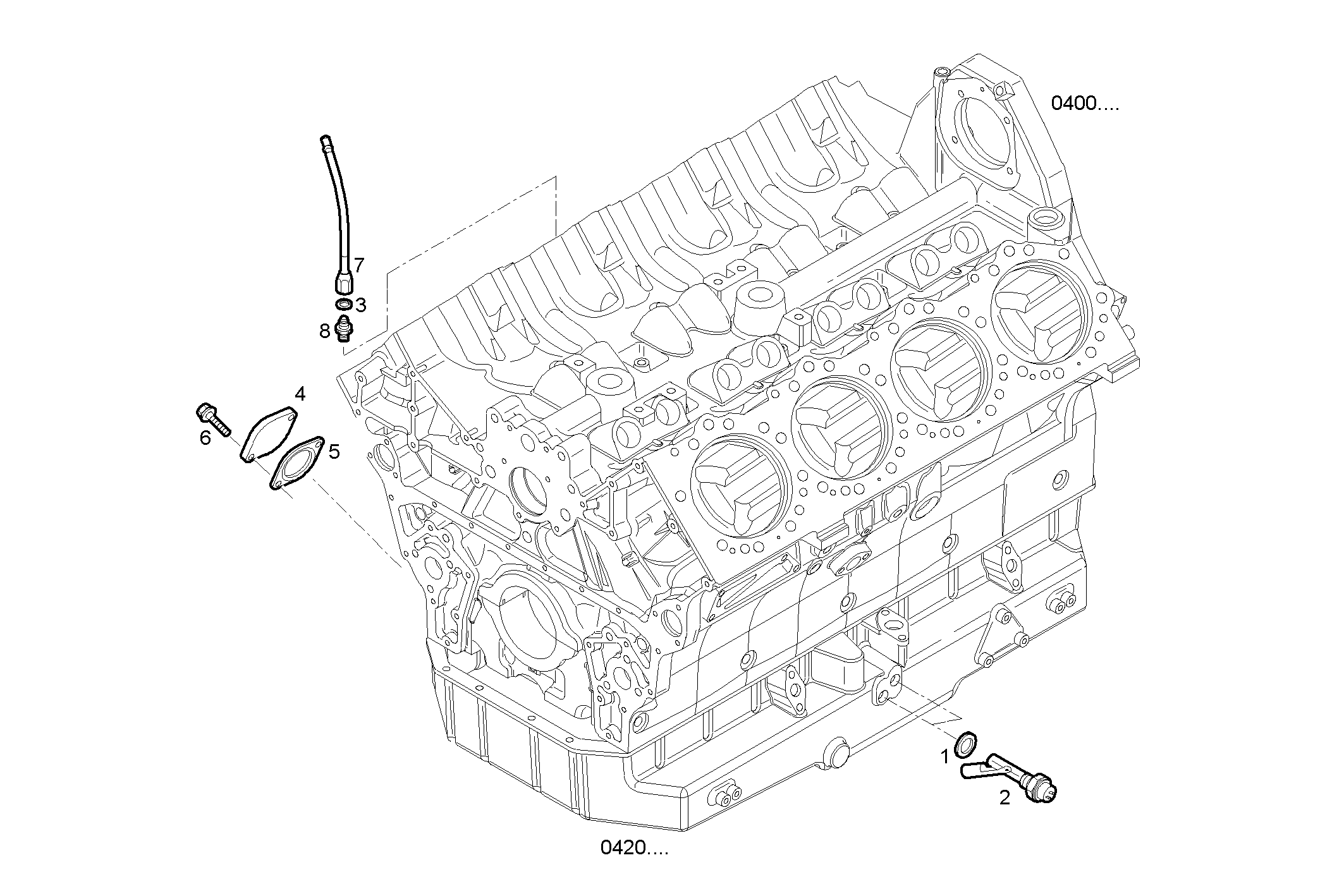

2710.142 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 17281981 O-RING Ø18,7 MM SP=2,6 MM
2 504055244 SENSOR
3 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
4 504069978 COVER
5 504064628 GASKET
6 16600224 HEXAGON BOLT M8X1,25X18 MM
7 504101883 OIL LEVEL TUBE
8 504101284 PIPE SOCKET
