FVQE2883X*A201

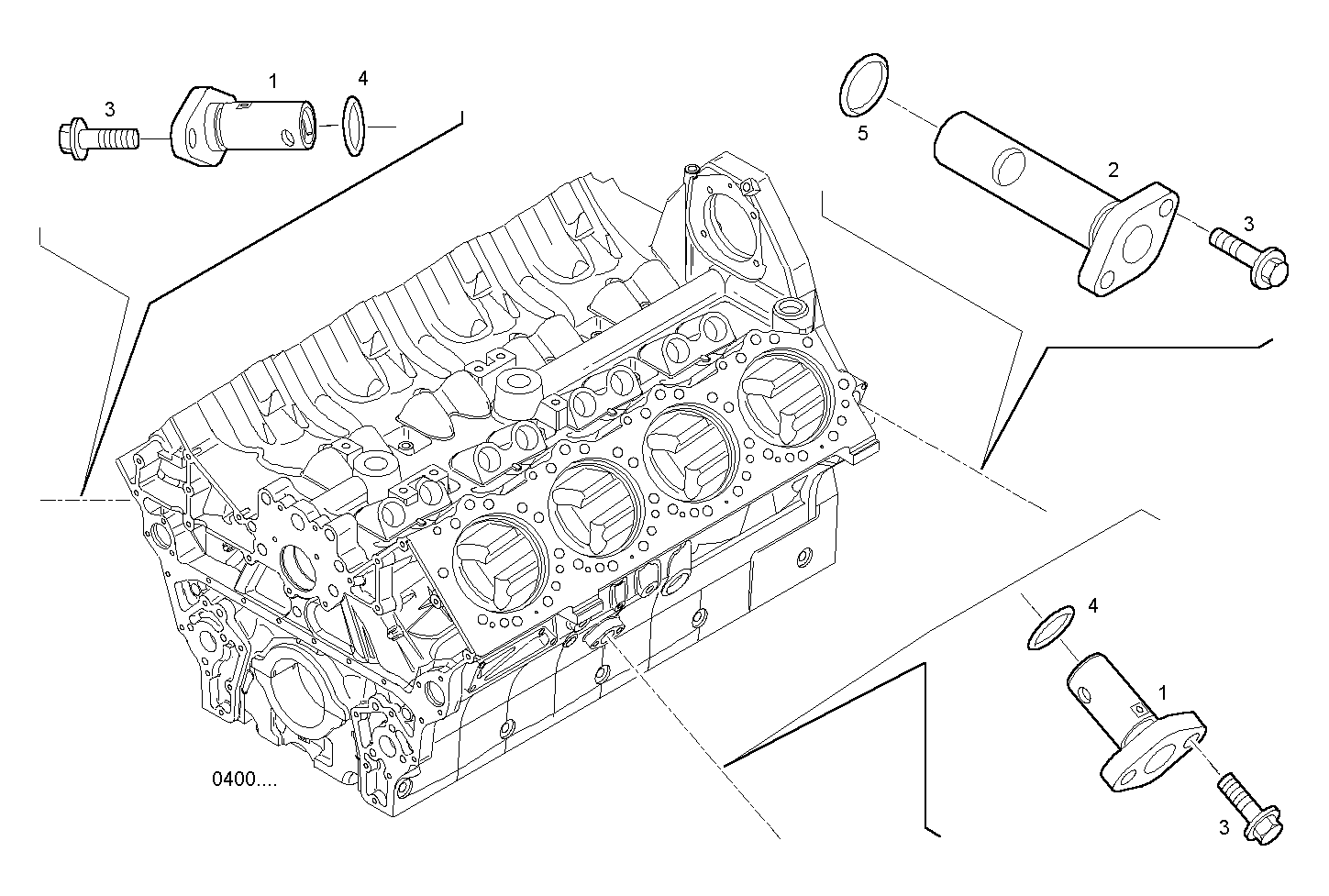

3030.053 OIL PRESSURE VALVE
Item | Part number | Description |
---|---|---|
1 | 504073339 | VALVE OIL PRESSURE |
2 | 504032634 | VALVE OIL PRESSURE |
3 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
4 | 14462981 | O-RING Ø20,2 MM SP=3,5 MM |
5 | 17288581 | O-RING Ø23,3 MM SP=3,5 MM |
