FVQE2883X*A201

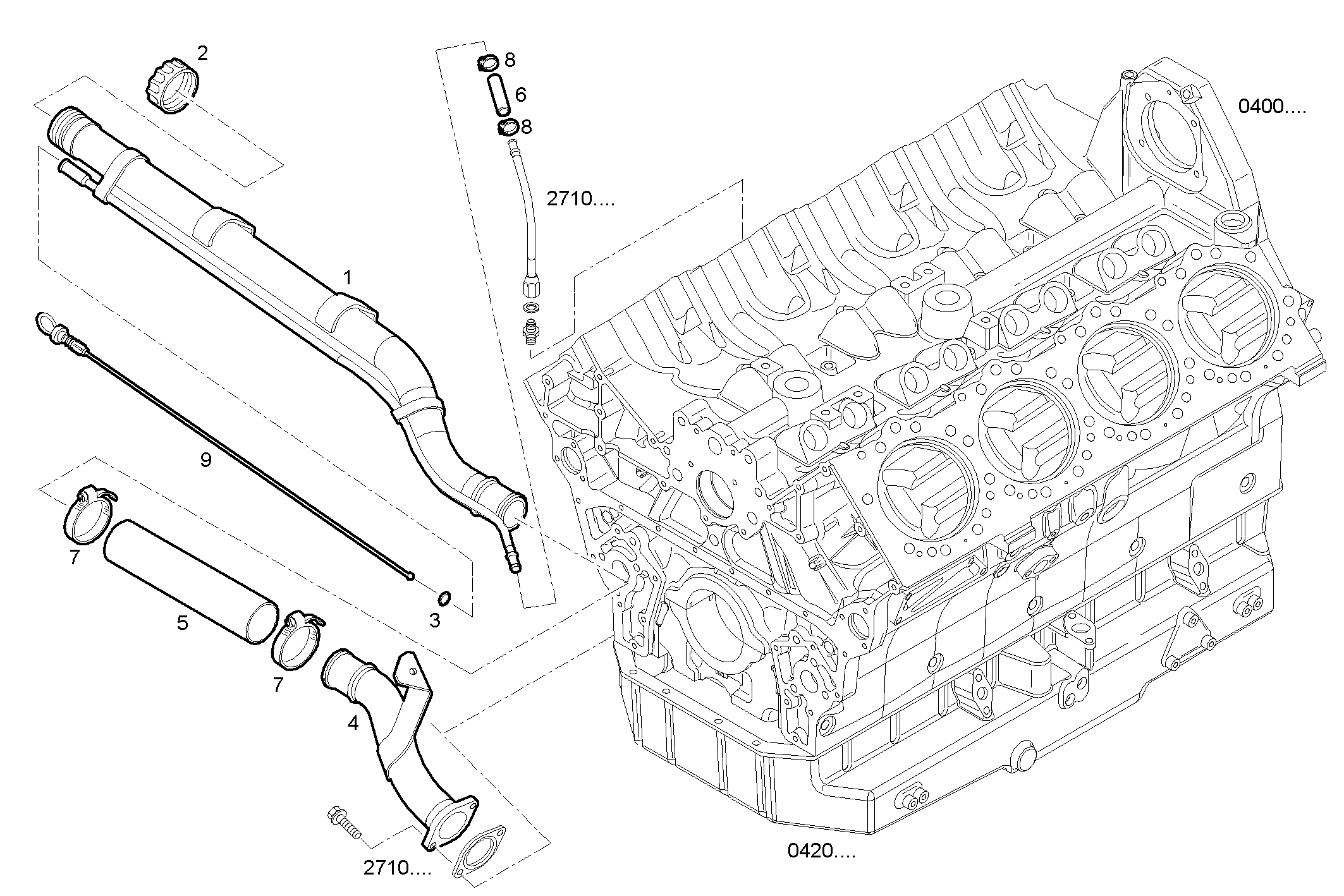

8600.136/03 ACCESSORIES
Item | Part number | Description |
---|---|---|
1 | 504085928 | OIL LEVEL TUBE |
2 | 98429552 | OIL FILLER PLUG |
3 | 17277981 | O-RING 1,78x9,25 |
4 | 504085911 | OIL FILLER PIPE |
5 | 504085914 | RUBBER SLEEVE |
6 | 504085915 | RUBBER SLEEVE |
7 | 17764892 | PIPE CLIP Ø40-60 MM |
8 | 18088294 | CLIP |
9 | 504253229 | OIL DIPSTICK |
