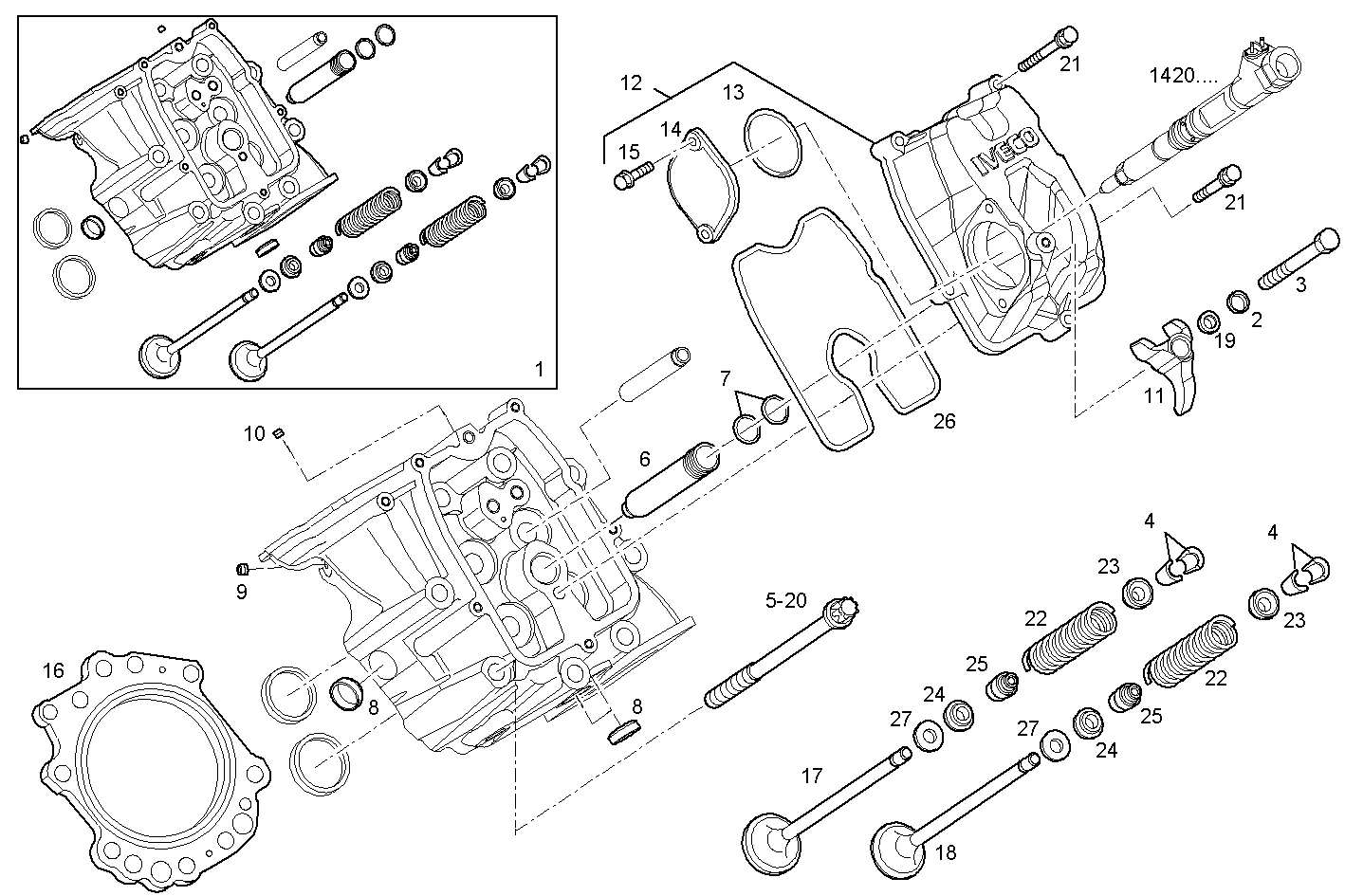

| Item |
Part number |
Description |
|
1 |
504162554 |
CYLINDER HEAD ASSY |
|
2 |
504046374 |
SPRING WASHER |
|
3 |
16709634 |
CYLIND-HEAD SCREW NM10X70 MM |
|
4 |
4833051 |
VALVE CONE |
|
5 |
504076961 |
HEXAGON BOLT M15X170 MM |
|
6 |
504030171 |
NOZZLE HOLDER SEAT |
|
7 |
17278881 |
O-RING Ø23,5 MM SP=1,7 MM |
|
8 |
16990670 |
LOCK PLUG Ø22 MM |
|
9 |
504051236 |
THREADED PLUG DIAM=1/8" |
|
10 |
17318511 |
THREADED PLUG M6X1 |
|
11 |
504027856 |
FASTENING BRACKET |
|
12 |
504044100 |
CYL. HEAD COVER ASSY |
|
13 |
17284581 |
O-RING Ø59,99 x 2,62 MM |
|
13 |
17280381 |
O-RING Ø60,05 x 1,78 MM |
|
14 |
504039531 |
COVER int. Ø 60,70 MM |
|
14 |
504155657 |
COVER int. Ø 62,52 MM |
|
15 |
18137825 |
HEXAGON BOLT M6X16 |
|
16 |
504029013 |
CYL.HEAD GASKET |
|
17 |
504120722 |
INLET VALVE |
|
18 |
504078483 |
EXHAUST VALVE |
|
19 |
504046468 |
WASHER |
|
20 |
504076783 |
HEXAGON BOLT M15X185 MM |
|
21 |
504049514 |
HEXAGON BOLT M8X1,25X40 MM |
|
22 |
4814897 |
ENGINE VALV.SPRING |
|
23 |
4675983 |
SPRING CAP TOP |
|
24 |
98458427 |
SPRING CAP BOTTOM |
|
25 |
40101874 |
SHAFT SEAL |
|
26 |
98481105 |
HEAD COVER GASKET |
|
27 |
504133817 |
SPACING BAR |
