FVQE2883Z*C200

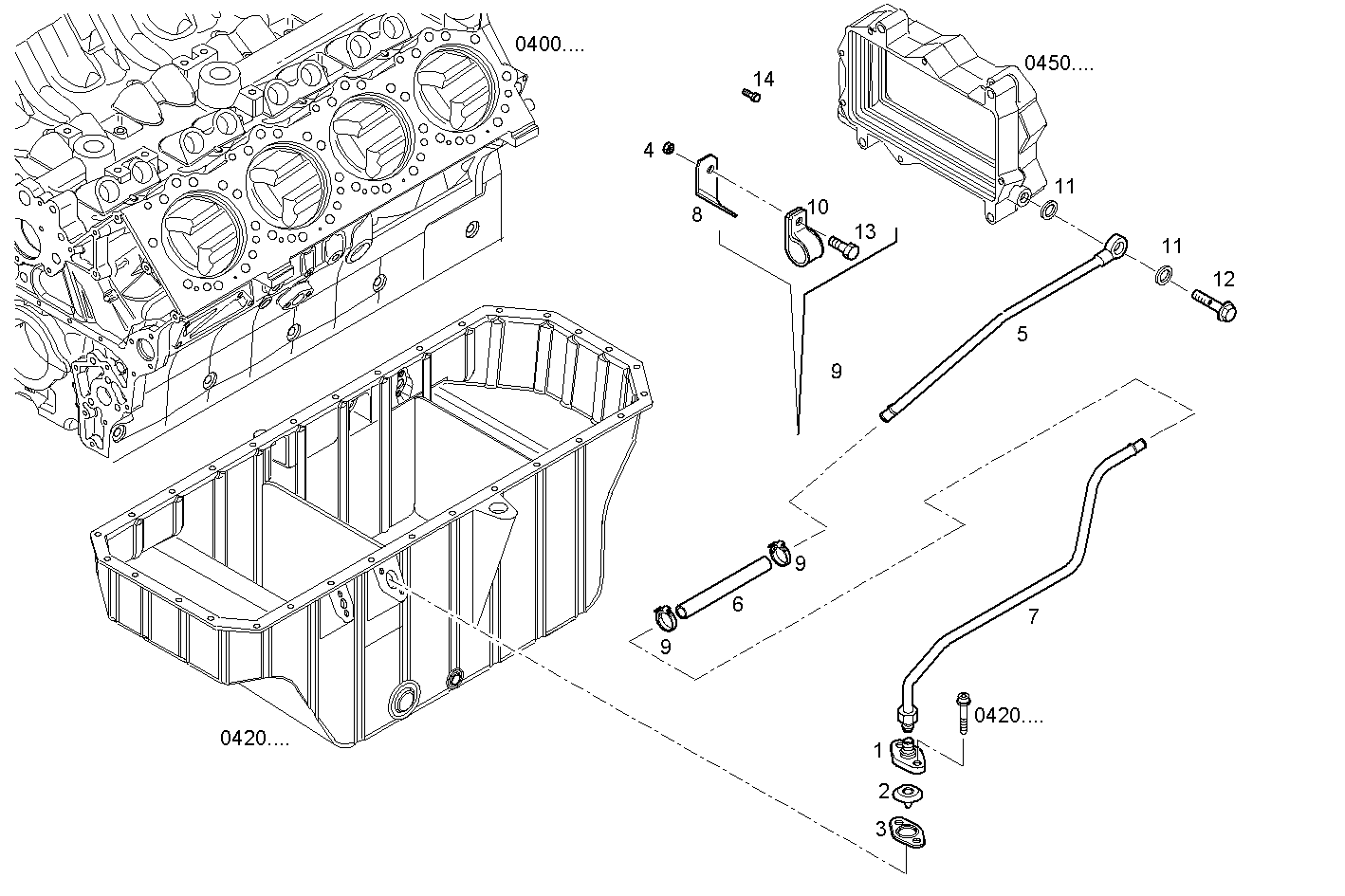

0473.003/03 COALESCE. FILTER GROUP
| Item | Part number | Description |
|---|---|---|
| 1 | 504075263 | PIPE SOCKET |
| 2 | 504036532 | VALVE |
| 3 | 504075235 | FLAT ENGINE GASKET |
| 4 | 16750125 | HEXAGON NUT M6 |
| 5 | 504130849 | PIPE |
| 6 | 504347771 | RUBBER SLEEVE |
| 7 | 504347772 | BREATHER PIPE |
| 8 | 504347774 | RETAINER |
| 9 | 18088392 | CLIP Ø16/25 MM |
| 10 | 17316592 | PIPE CLIP |
| 11 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 12 | 16511414 | SCREW CONNECTOR |
| 13 | 18138325 | HEXAGON BOLT M8X16 MM |
| 14 | 16677734 | HEXAGON BOLT M12X25 MM |
