FVQE2883Z*C200

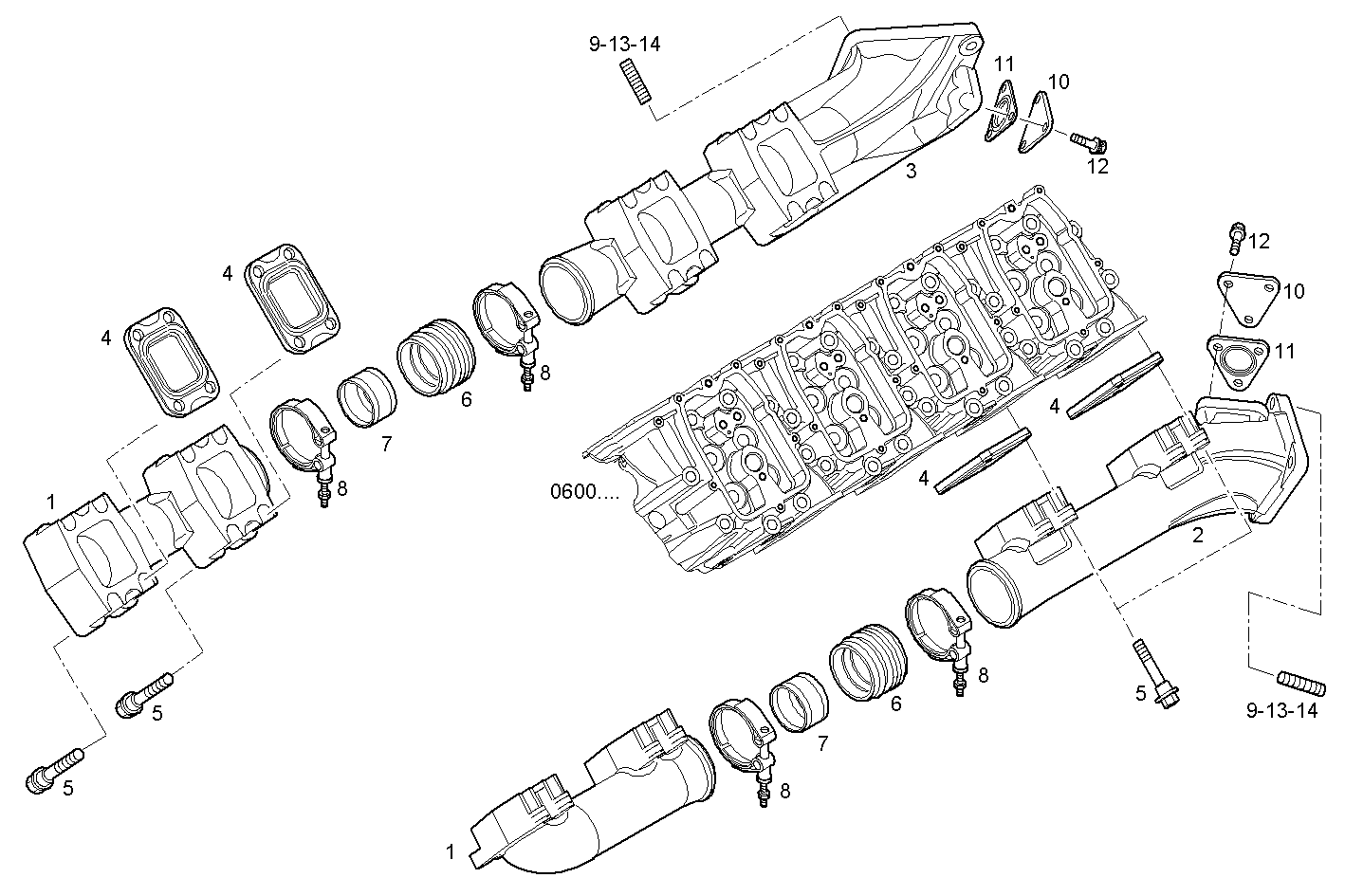

0780.066 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504055335 | EXHAUST MANIFOLD front side |
| 2 | 504349184 | EXHAUST MANIFOLD LEFT |
| 3 | 504349185 | EXHAUST MANIFOLD RIGHT |
| 4 | 504082422 | EXH. MANIFOLD GKT |
| 5 | 504224027 | HEXAGON BOLT M10X1,5 |
| 6 | 504035132 | CONNECTOR SLEEVE |
| 7 | 504034976 | RING |
| 8 | 504073805 | CLIP |
| 9 | 16731370 | STUD M10X30 MM |
| 10 | 504093971 | COVER |
| 11 | 504054952 | GASKET |
| 12 | 16600277 | HEXAGON BOLT M8X18 MM |
| 13 | 16732170 | STUD M10X70 MM |
| 14 | 16731570 | STUD M10X40 MM |
