FVQE2883Z*C200

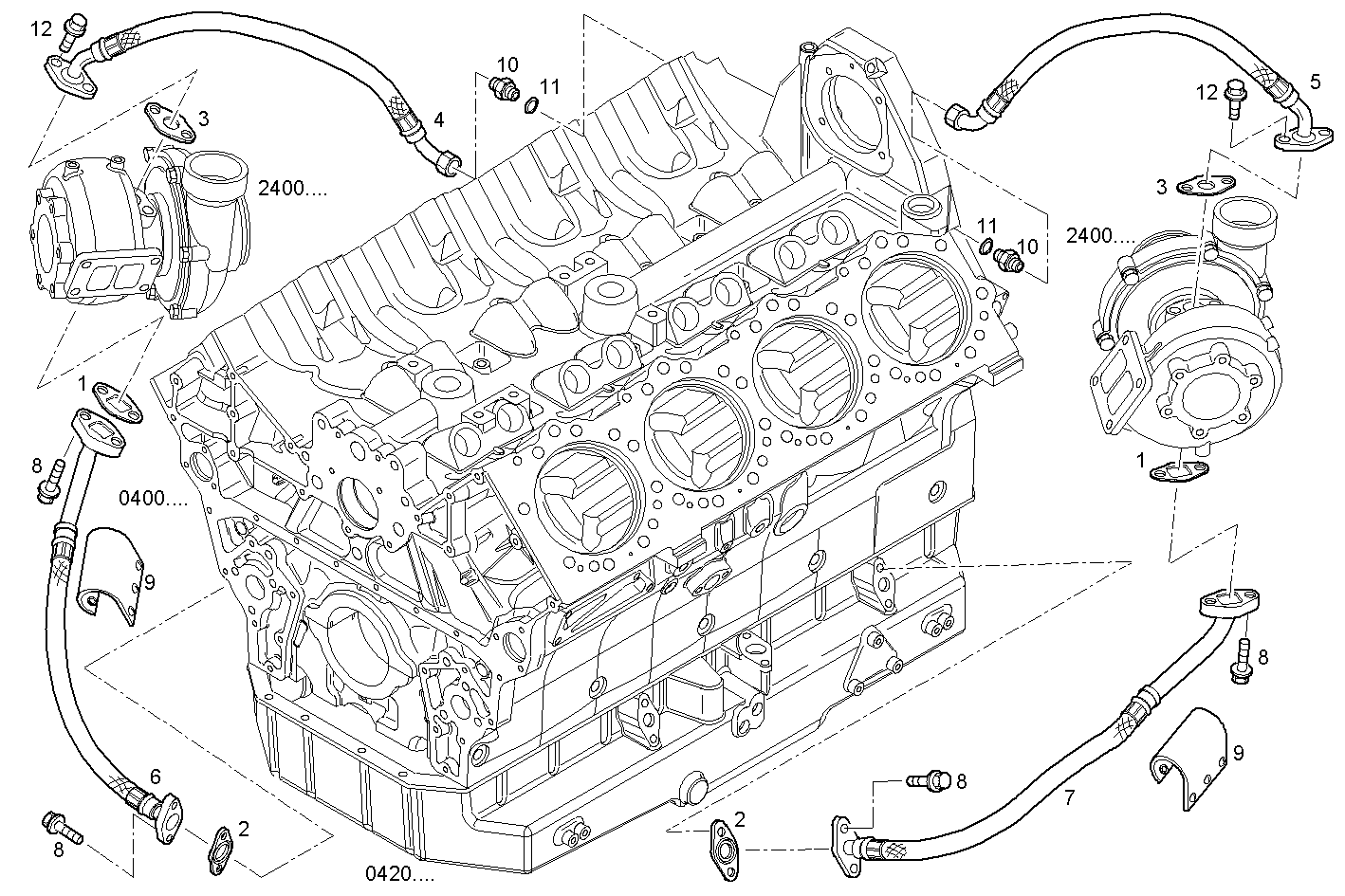

2400.179/04 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 98412509 | FLAT ENGINE GASKET |
| 2 | 99475979 | FLAT ENGINE GASKET |
| 3 | 61318303 | GASKET |
| 4 | 504042531 | OIL LINE Inlet turbo |
| 5 | 504042532 | OIL LINE Inlet turbo |
| 6 | 504042533 | OIL LINE outlet turbo |
| 7 | 504042534 | OIL LINE outlet turbo |
| 8 | 16586577 | HEXAGON BOLT M8X30 MM |
| 9 | 504116052 | PROTECTION |
| 10 | 504142313 | SCREW CONNECTOR |
| 11 | 99489017 | SEAL GASKET Ø12X20 MM SP=1,5 MM |
| 12 | 16600277 | HEXAGON BOLT M8X18 MM |
