FVQE2883Z*C200

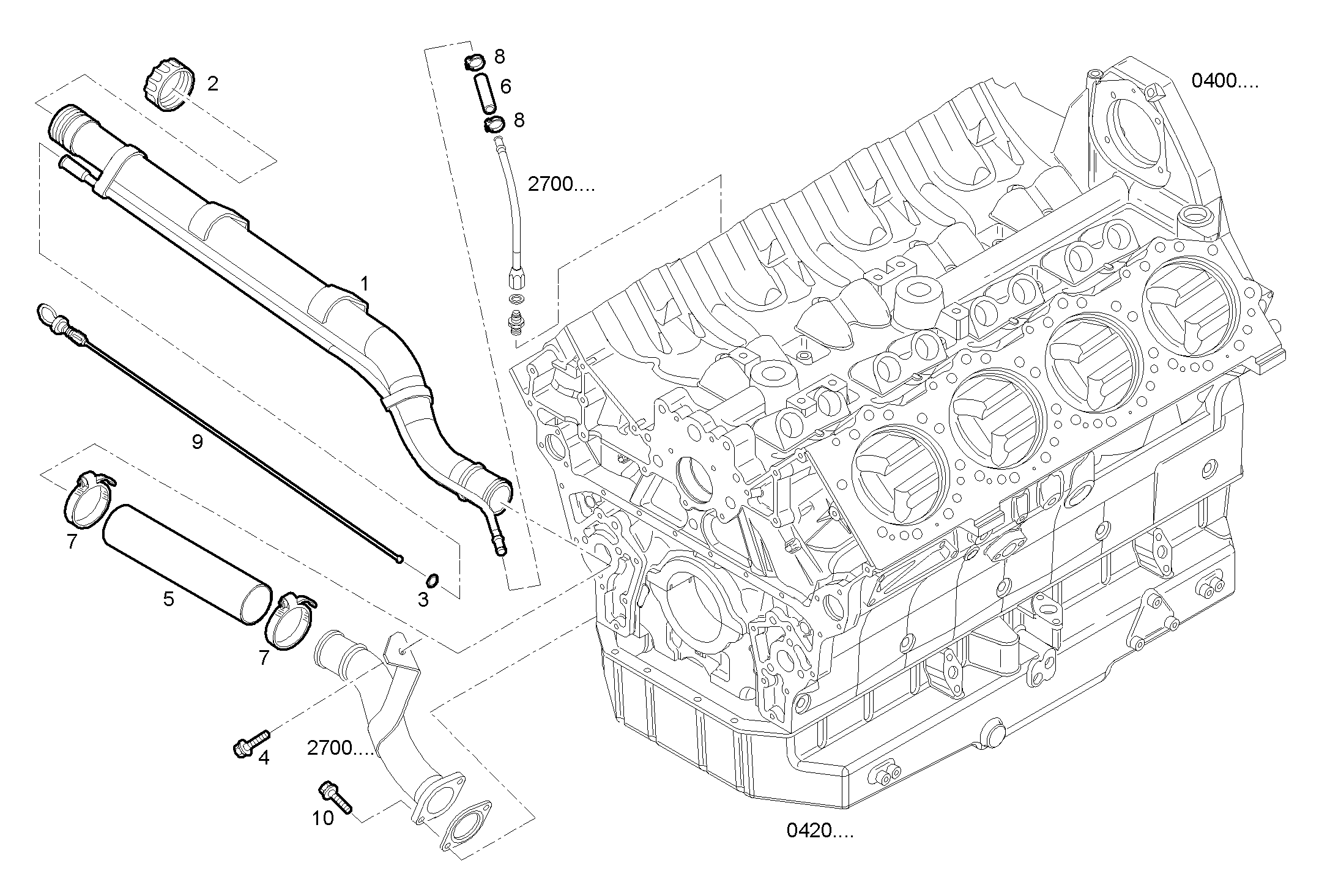

8600.127/03 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 504350487 | OIL LEVEL TUBE |
| 2 | 98429552 | OIL FILLER PLUG |
| 3 | 17277981 | O-RING 1,78x9,25 |
| 4 | 16587124 | HEXAGON BOLT M10X25 MM |
| 5 | 504350505 | RUBBER SLEEVE |
| 6 | 504085915 | RUBBER SLEEVE |
| 7 | 17764892 | PIPE CLIP Ø40-60 MM |
| 8 | 18088294 | CLIP |
| 9 | 504350485 | OIL DIPSTICK |
| 10 | 16673635 | HEXAGON BOLT M8X1.25X20 |
