GE7450G86.05A71E

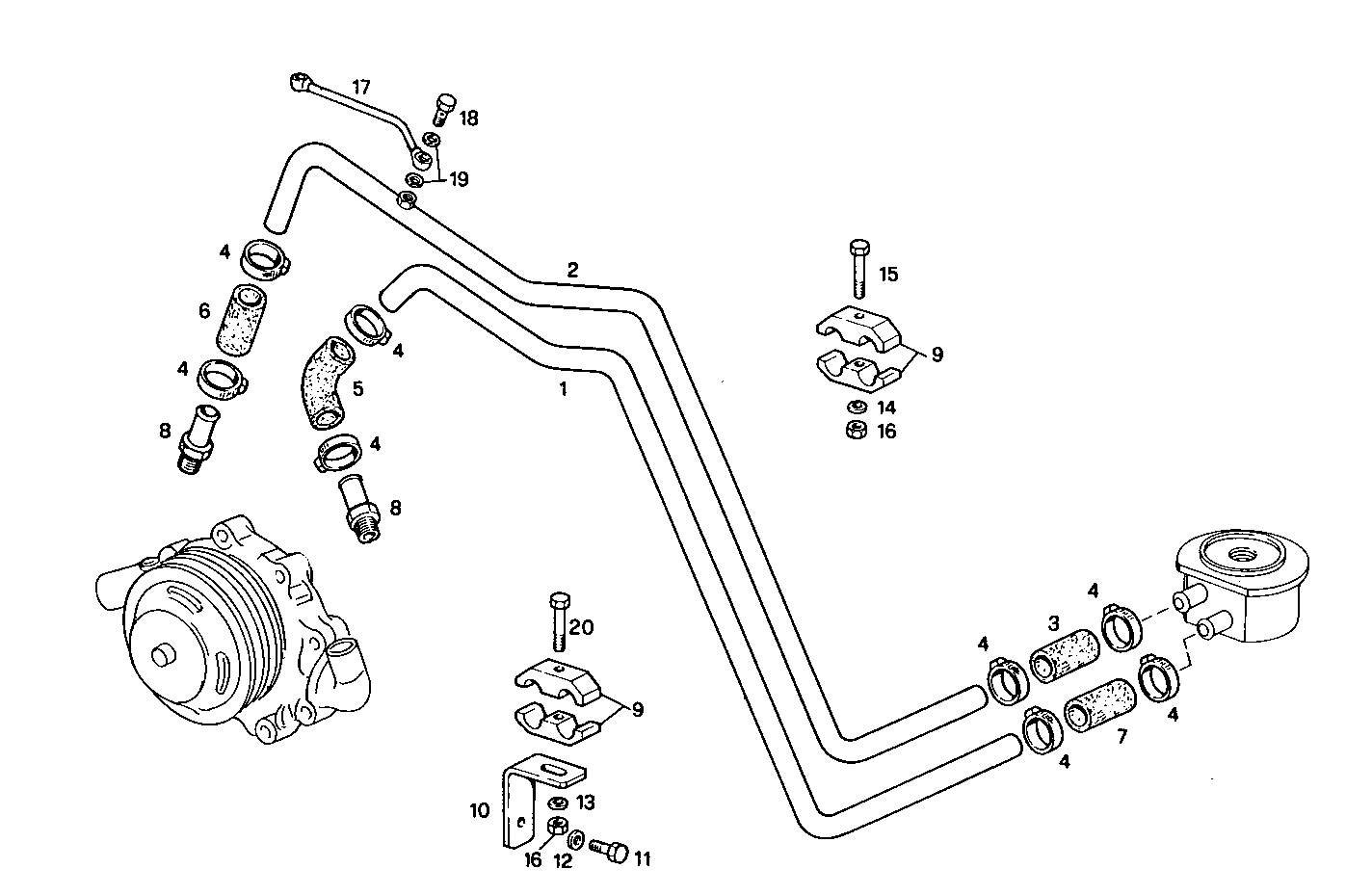

3210.065 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8014067 WATER PIPE
2 8014068 WATER PIPE
3 17736987 WATER HOSE
4 17764592 CLIP Ø20/32 MM
5 98443339 WATER HOSE
6 17737187 WATER HOSE
7 98418717 WATER HOSE Ø18 MM
8 8015361 PIPE SOCKET
9 8010505 CLAMP Ø16 MM
10 8100819 RETAINER
11 8014502 SCREW
12 17090174 SPRING WASHER Ø10X20 MM
13 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605824 HEXAGON BOLT M8X35 MM
16 17037931 HEXAGON NUT M8X1,25
17 8015166 WATER PIPE
18 4864078 BANJO BOLT M8X1,25
19 98474303 WASHER Ø8X14 MM SP=2,3 MM
20 16605924 SCREW M8X40 MM
