GE7450i15.05A905

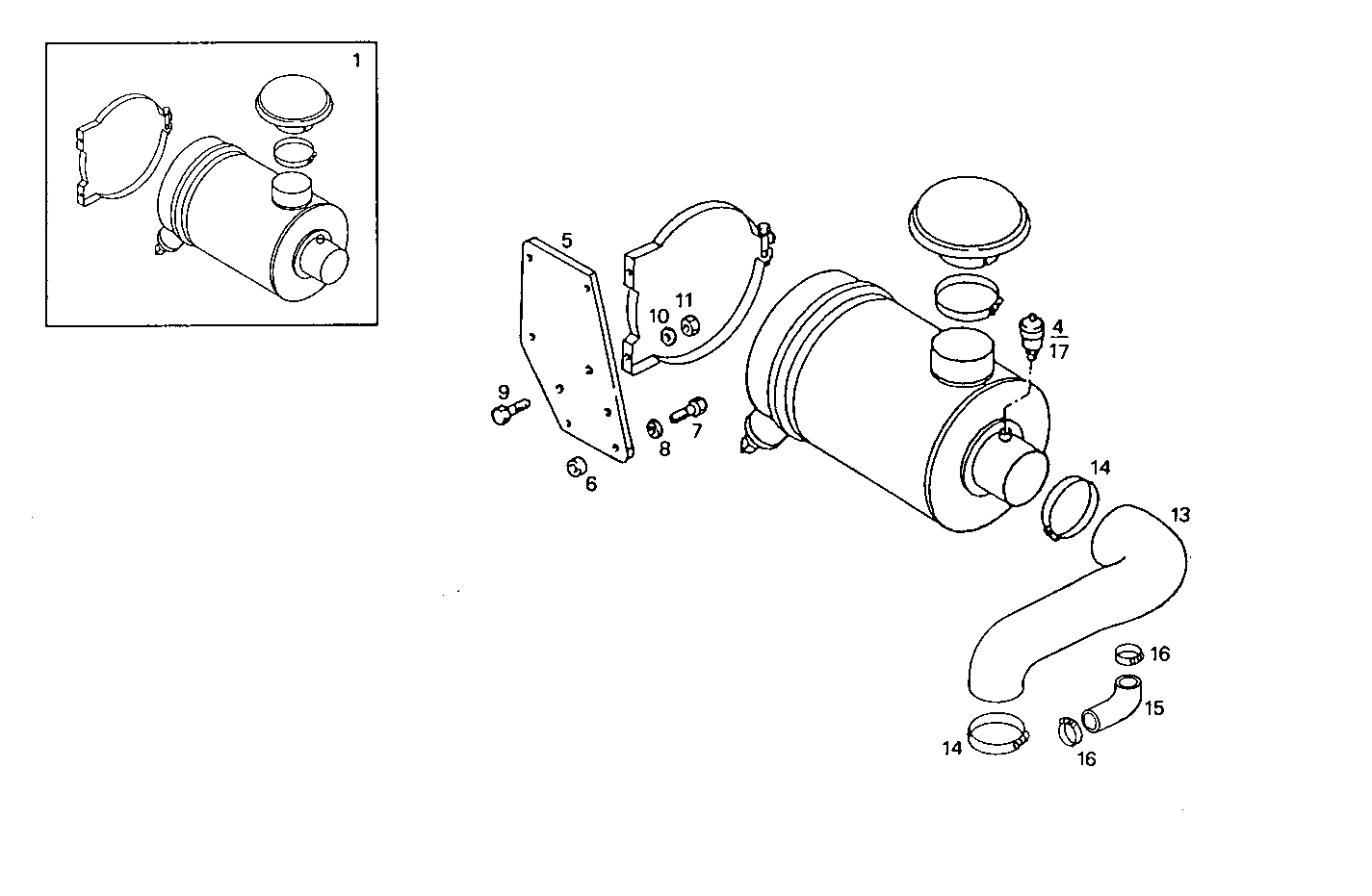

A21210007 DRY AIR CLEANER - with mechanical clogging gauge - genset
Item | Part number | Description |
---|---|---|
1 | 8013301 | AIR CLEANER ASSY |
4 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
5 | 8019989 | PLATE |
6 | 8014162 | SPACING BAR |
7 | 8114495 | SCREW |
8 | 17091074 | WASHER Ø12X24X2,8 MM |
9 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
11 | 17037931 | HEXAGON NUT M8X1,25 |
13 | 8015251 | FILTER HOSE |
14 | 17765291 | CLIP Ø80/100 MM |
15 | 8013466 | WATER HOSE [up to 03-97] |
16 | 17764592 | CLIP Ø20/32 MM |
17 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
