GE7450i16.05A905

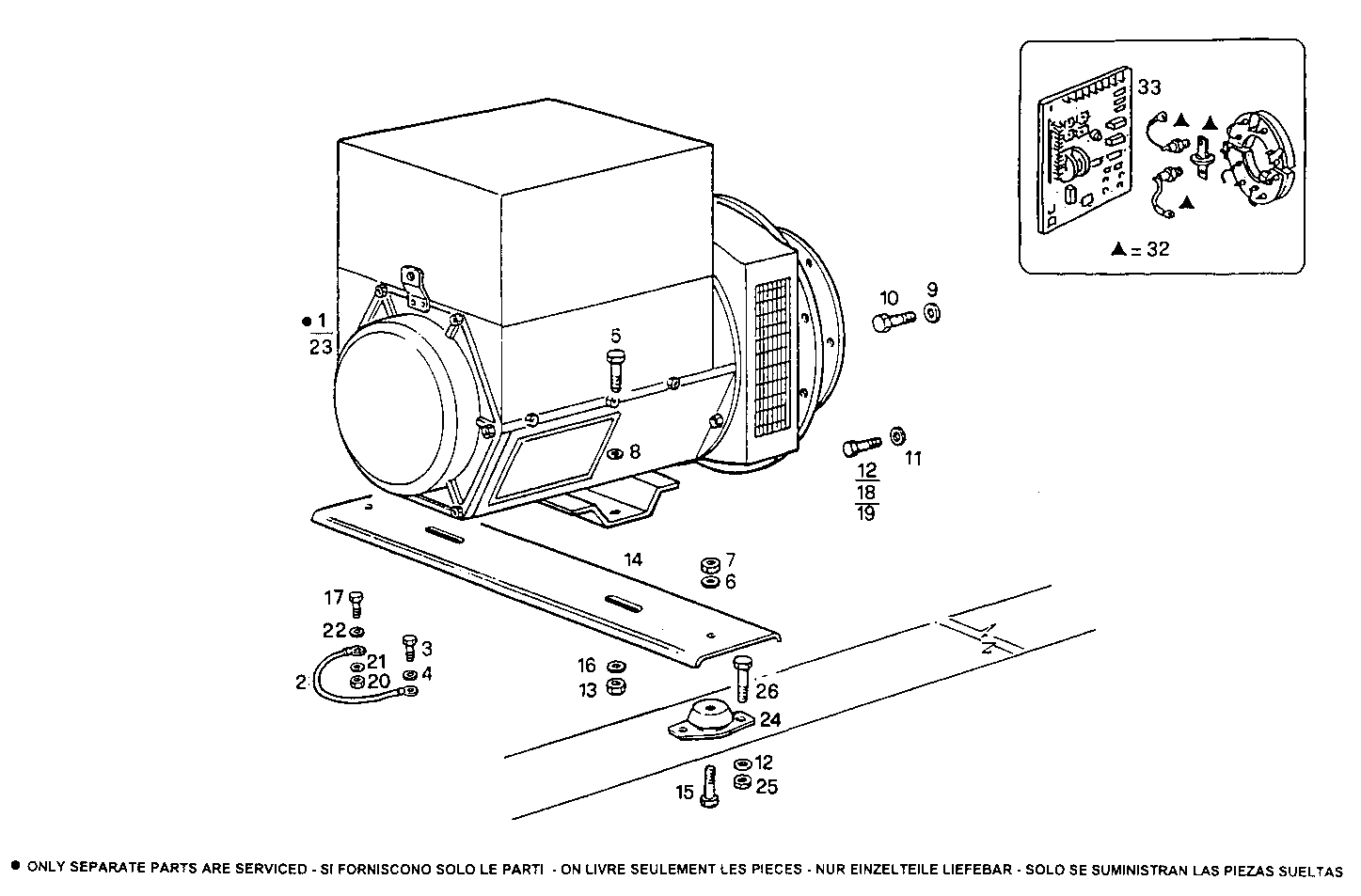

A37010055 SINGLE BEARING ELECTRIC MACHINE - STAMFORD

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8017427 ELECTRIC MACHINE UCI 224 D 14 50-60HZ [up to 05-95]
2 8110852 EARTH WIRE
3 16043124 SCREW M8X14 MM
4 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
5 16614824 SCREW M16X50
6 17092374 SPRING WASHER Ø16X34X3,6 MM
7 17038921 NUT M16X2
8 4929369 WASHER
9 17494934 WASHER Ø10X18,1X2,2 MM
10 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
11 17090174 SPRING WASHER Ø10X20 MM
12 16692324 SOCKET-HEAD SCREW M10X35 MM
14 8016047 SUPPORT
15 16614524 HEXAGON BOLT M16X35 MM
17 16605624 HEXAGON BOLT M8X25 MM (8.8)
18 16607824 HEXAGON BOLT M10X35 MM (8.8)
19 16608024 HEXAGON BOLT M10X1,25X45 MM
20 17037931 HEXAGON NUT M8X1,25
21 17710174 WASHER Ø6X11 MM
22 17094714 WASHER Ø6,4X12 MM
23 8020801 ELECTRIC MACHINE UCD 224 D 16 50-60HZ [from 05-95]
24 8016784 RUBBER PAD
25 17038121 HEXAGON NUT M10
26 16607624 SCREW M10X25
32 8092769 KIT-GENERATOR Stamford
33 8106738 EL.MACHINE VOLTAGE REGUL. Stamford
