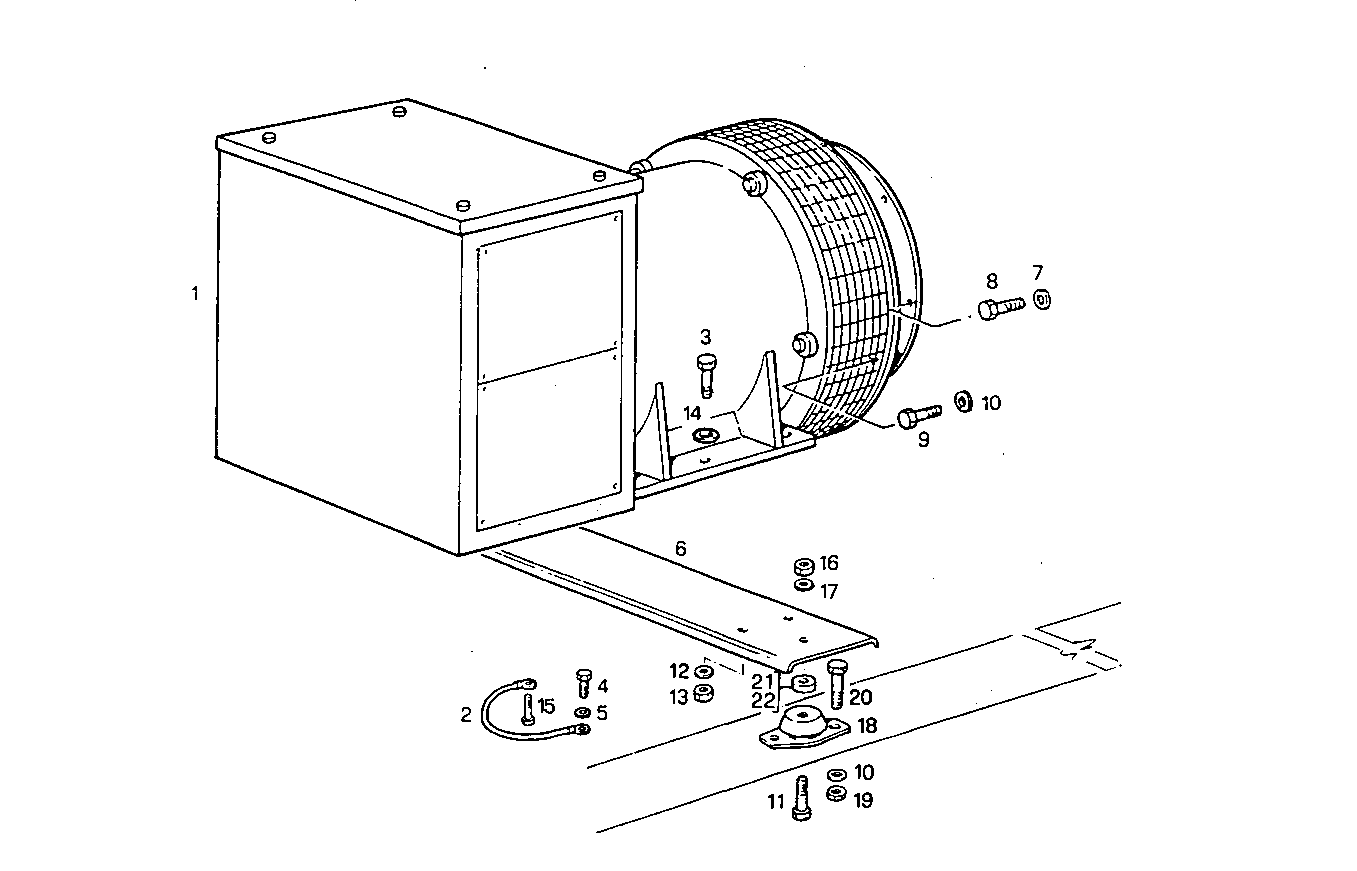

| Item |
Part number |
Description |
|
1 |
8017429 |
ELECTRIC MACHINE LSA 421 L8 L 50-60HZ |
|
2 |
8110852 |
EARTH WIRE |
|
3 |
16610124 |
HEXAGON BOLT M12X40 MM |
|
4 |
16043124 |
SCREW M8X14 MM |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8016047 |
SUPPORT |
|
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
8 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
|
9 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
|
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
11 |
16615324 |
HEXAGON BOLT M16X80 MM |
|
12 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
|
13 |
17038921 |
NUT M16X2 |
|
14 |
4929369 |
WASHER |
|
15 |
16603724 |
HEXAGON BOLT M6X20 MM (8.8) |
|
16 |
17038521 |
HEXAGON NUT M12X1,5 |
|
17 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
|
18 |
8016784 |
RUBBER PAD |
|
19 |
17038121 |
HEXAGON NUT M10 |
|
20 |
16607624 |
SCREW M10X25 |
|
21 |
8109912 |
SPACING BAR 10MM |
|
22 |
8005402 |
SPACING BAR 35MM |
