GE7450Si15.05A905

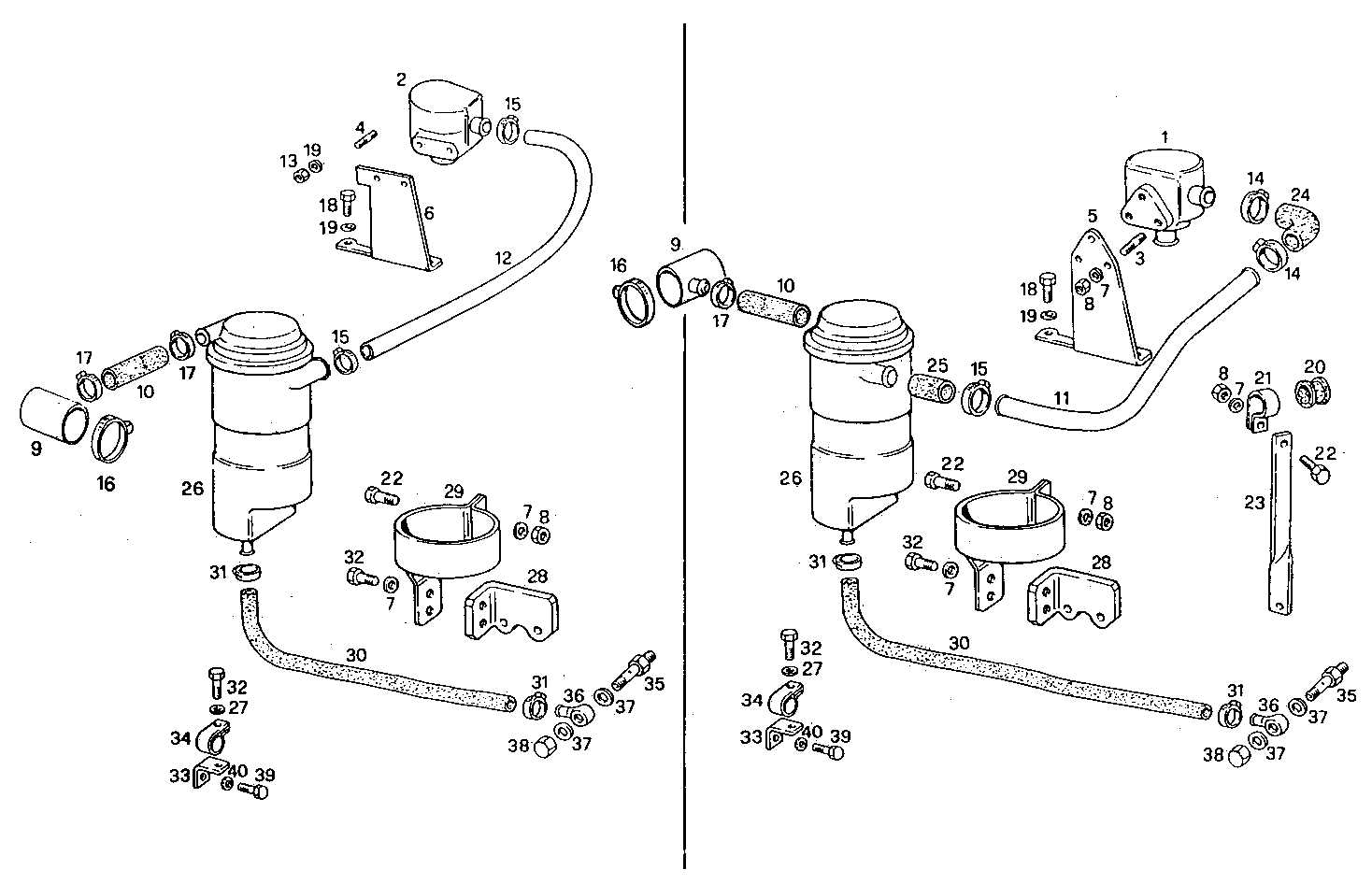

0450.082 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 8014172 BREATHER [up to 09-93]
2 8016815 BREATHER [from 09-93]
3 16279224 STUD
4 16731124 STUD M10X20
5 8014173 RETAINER [up to 09-93]
6 8016833 RETAINER [from 09-93]
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 17037931 HEXAGON NUT M8X1,25
9 8015202 RUBBER SLEEVE
10 8014770 OIL HOSE
11 8015273 AIR PIPE/DUCT
12 8016935 AIR HOSE
13 17038121 HEXAGON NUT M10
14 17764791 CLIP Ø32/50 MM
15 17764691 CLIP Ø25/40 MM
16 17765091 CLIP Ø60/80 MM
17 17764592 CLIP Ø20/32 MM
18 8015185 SCREW
19 17090174 SPRING WASHER Ø10X20 MM
20 4747140 RUBBER PAD
21 4810595 FASTENING BRACKET
22 16605524 HEXAGON BOLT M8X20 MM
23 8015183 RETAINER [up to 09-93]
24 61319112 RUBBER SLEEVE [up to 09-93]
25 8009117 RUBBER SLEEVE
26 7303441 BREATHER [up to 03-97]
27 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
28 8015130 RETAINER
29 4860370 SUPPORT [up to 03-97]
30 8016936 OIL HOSE
31 17764491 CLIP Ø16/25 MM
32 16605424 SCREW M8X16 MM (8.8)
33 8110294 RETAINER
34 17316990 LOCK/YOKE
35 8015162 PIPE SOCKET
36 98405552 PIPE SOCKET
37 98474308 SEAL GASKET Ø14X22 MM
38 10182817 LOCK PLUG
39 16603724 HEXAGON BOLT M6X20 MM (8.8)
40 17088974 SPRING WASHER Ø6X18X1,4 MM
