GE7450Si15.05A905

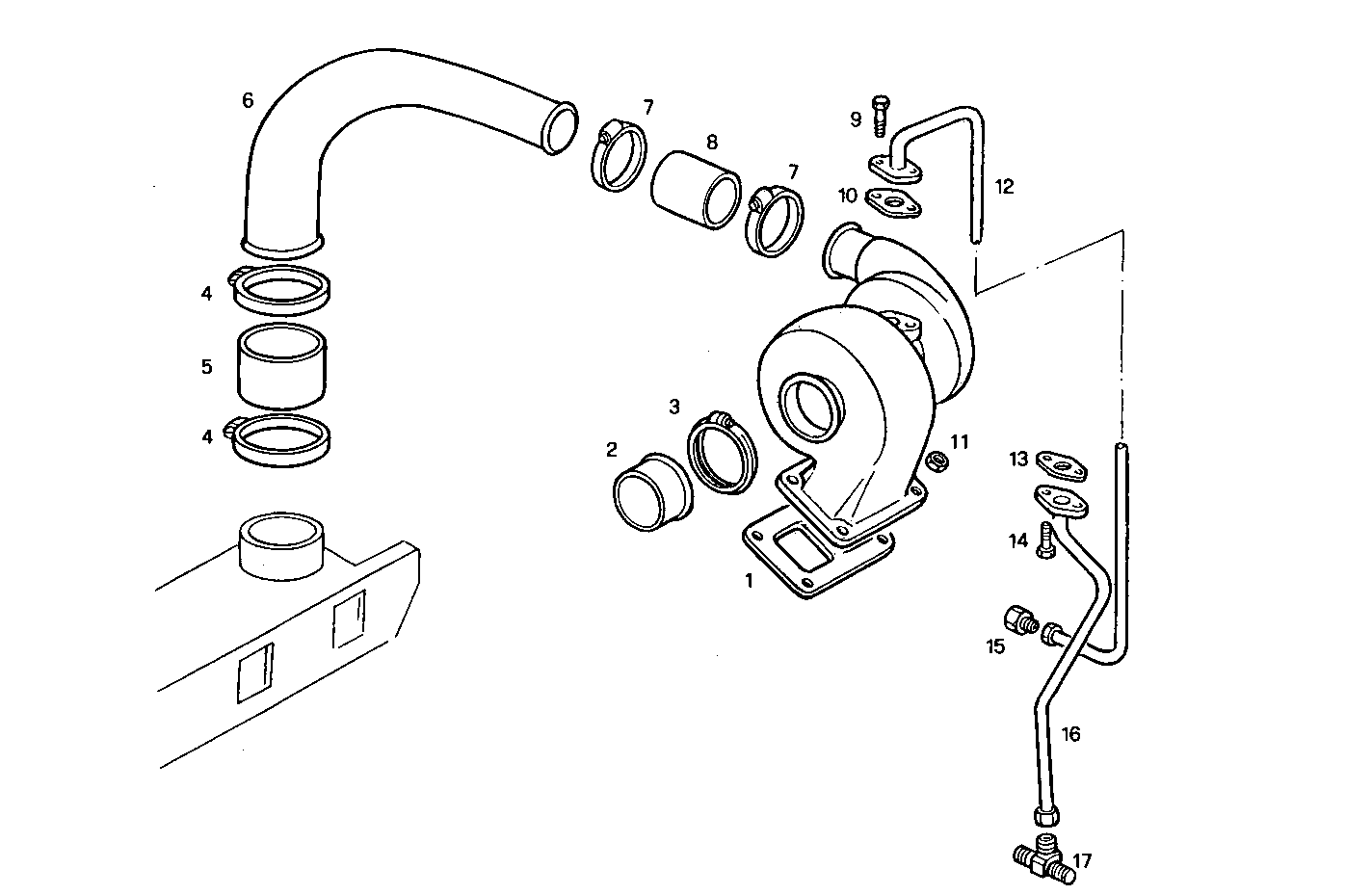

2420.057 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 83911642 | GASKET |
2 | 8014613 | FLANGE |
3 | 8015368 | CLIP 150 KVA |
4 | 81871498 | CLIP |
5 | 81862808 | RUBBER SLEEVE |
6 | 82859739 | INTAKE ELBOW |
7 | 81871496 | CLIP |
8 | 8015202 | RUBBER SLEEVE |
9 | 81879213 | SCREW |
10 | 83959841 | GASKET |
11 | 83993005 | NUT |
12 | 81879212 | OIL LINE |
13 | 83953341 | GASKET |
14 | 83908815 | SCREW |
15 | 81843887 | PIPE SOCKET |
16 | 82853711 | OIL LINE |
17 | 81869032 | PIPE SOCKET |
