GE7450Si15.05A905

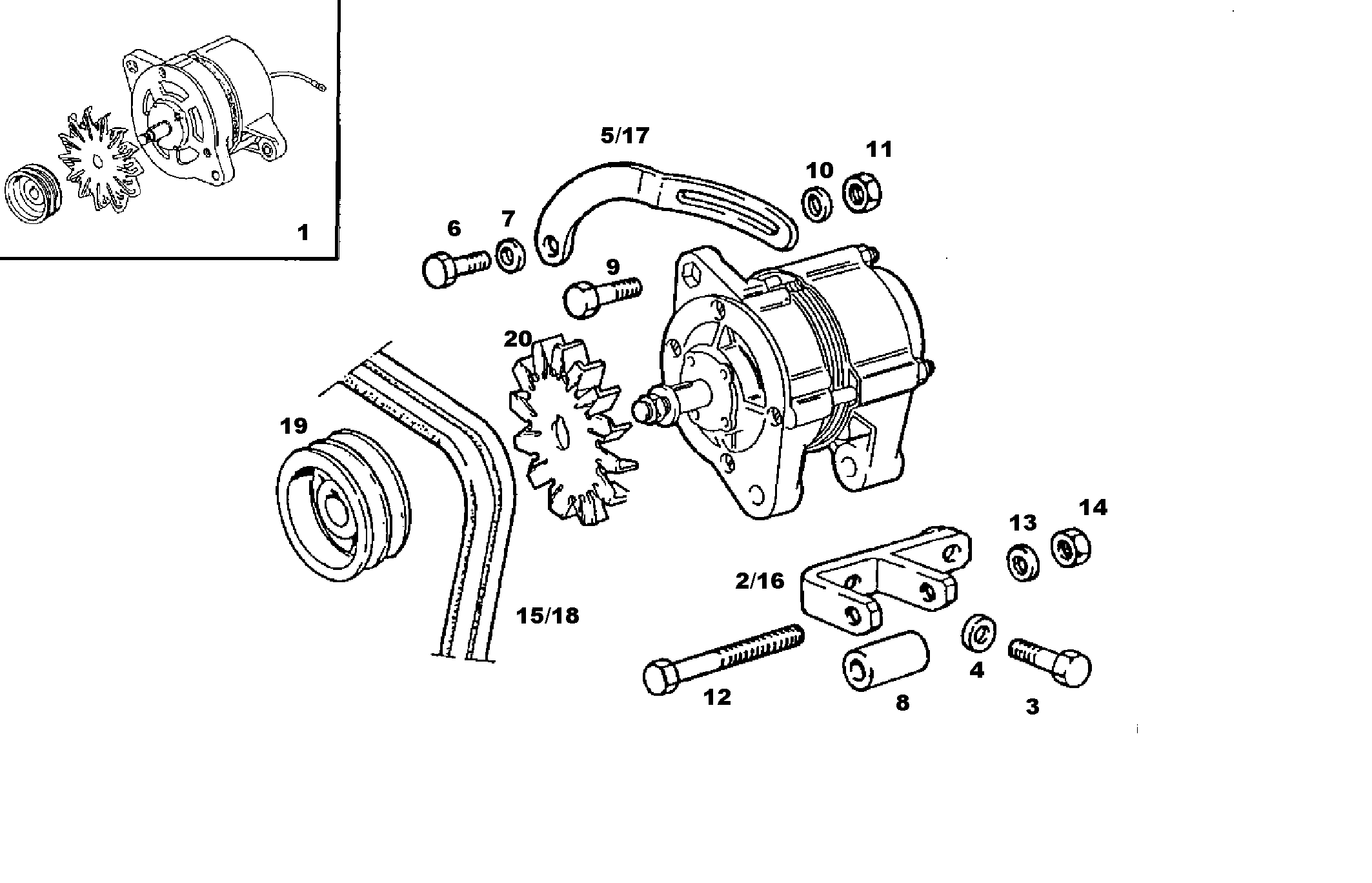

A14020010 SELF-REGULATED ALTERNATOR - 12V 45A

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 8014071 ALTERNATOR ASSY 12V
2 8015283 SUPPORT
3 8014502 SCREW
4 17090174 SPRING WASHER Ø10X20 MM
5 8015344 BELT TENSIONER
6 8014111 SCREW
7 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
8 8015304 SPACING BAR
9 16607924 HEXAGON BOLT M10X1,5X40 MM
10 17090474 SPRING WASHER Ø10X27 MM SP=2,5
11 17152921 HEXAGON NUT M10X1,5
12 16611324 HEXAGON BOLT M12X130 MM
13 17091074 WASHER Ø12X24X2,8 MM
14 17038521 HEXAGON NUT M12X1,5
15 4631961 SET OF V-BELTS KIT
16 8014072 SUPPORT [up to 02-93]
17 8014112 BELT TENSIONER [up to 02-93]
18 4759595 SET OF V-BELTS KIT [up to 02-93]
19 8014706 PULLEY
20 4717026 GENERATOR FAN MARELLI
