GE7450Si15.05A905

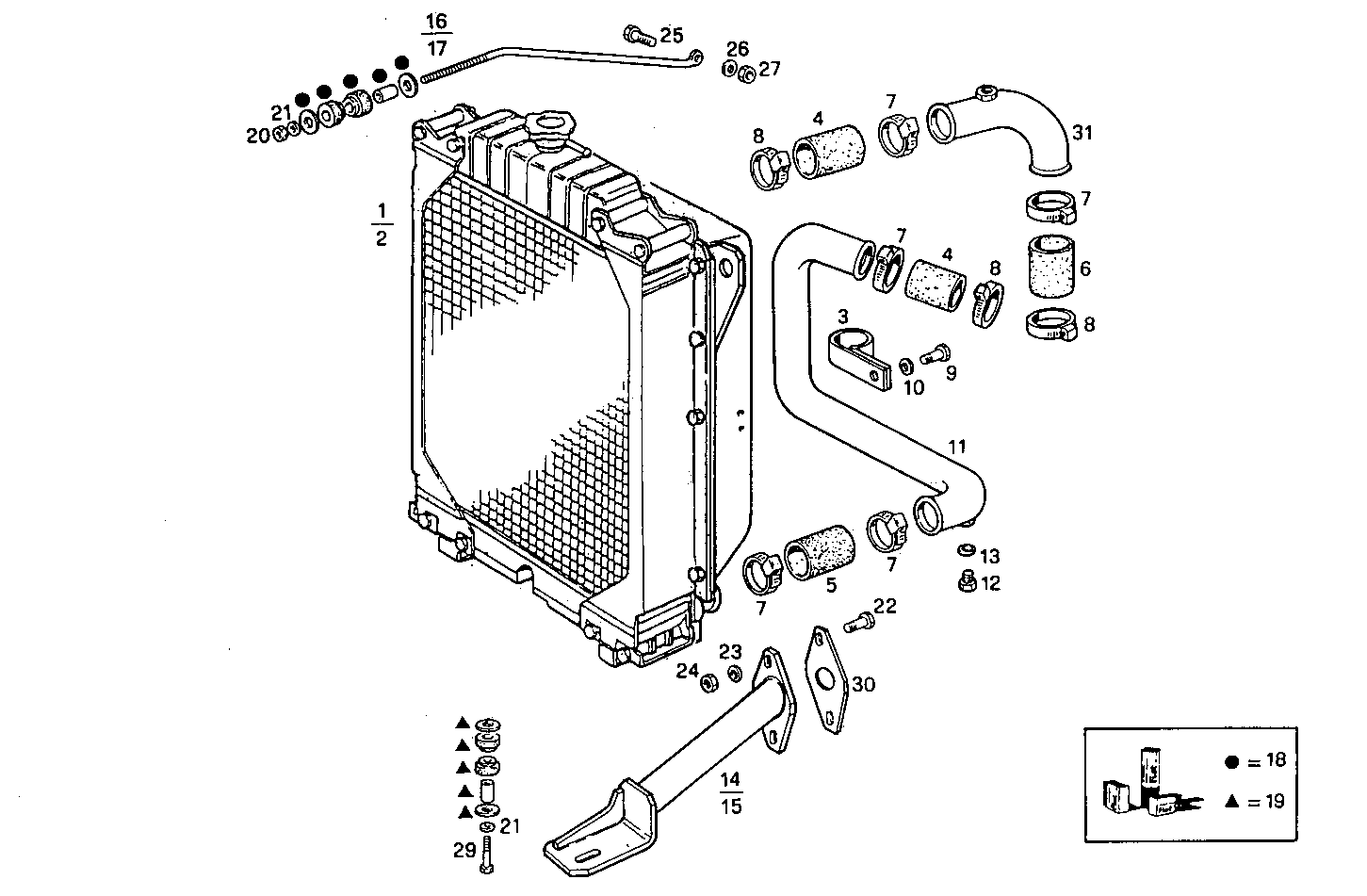

A22010041 RADIATOR FOR SETTING TILL MAX POWER - genset

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8018538 WATER RADIATOR ASSY
2 8024214 WATER RADIATOR ASSY
2 8014291 WATER PIPE
3 4936741 CLIP
4 8813238 WATER HOSE
5 8102099 RUBBER SLEEVE
6 17742687 RUBBER SLEEVE
7 17764791 CLIP Ø32/50 MM
8 17764891 CLIP Ø40/60 MM
9 16605524 HEXAGON BOLT M8X20 MM
10 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
11 8014963 WATER PIPE
12 16992111 THREADED PLUG M10X1
13 4858606 GASKET Ø10X14X1 MM
14 8020887 SUPPORT LEFT
15 8020885 SUPPORT RIGHT
16 8014303 TIE ROD LEFT
17 8014304 TIE ROD RIGHT
18 8090413 KIT-RADIATOR A.S. COMPLETE
19 8090341 KIT-RADIATOR A.S. COMPLETE
20 17038421 HEXAGON NUT M12 (8)
21 17091074 WASHER Ø12X24X2,8 MM
22 16614824 SCREW M16X50
23 17092174 SPRING WASHER Ø16X32X3,4
24 17038921 NUT M16X2
25 16605624 HEXAGON BOLT M8X25 MM (8.8)
26 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
27 17037931 HEXAGON NUT M8X1,25
28 4935488 RADIATOR PLUG
29 15541521 SCREW M12X1.25X90 [up to 565948]
30 8020833 SPACING BAR
