GE7450Si15.05A905

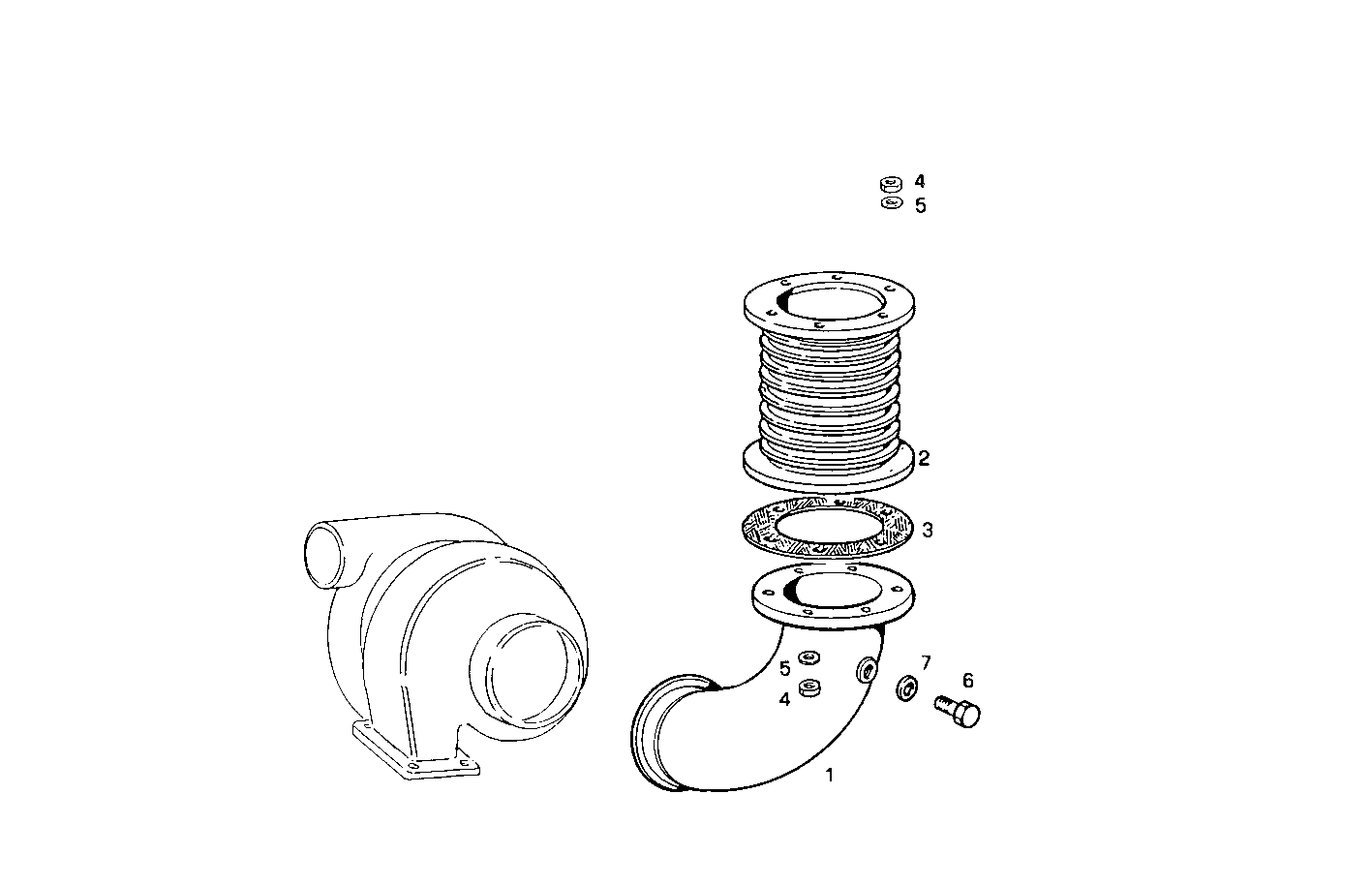

A40010012 TURNING EXHAUST ELBOW WITH BELLOWS
Item | Part number | Description |
---|---|---|
1 | 8014537 | EXHAUST ELBOW |
2 | 4935378 | EXHAUST BELLOWS |
3 | 8009606 | GASKET |
4 | 17037931 | HEXAGON NUT M8X1,25 |
5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 | 16992211 | THREADED PLUG M12X1,5 |
7 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
