GE7450Si15.05A905

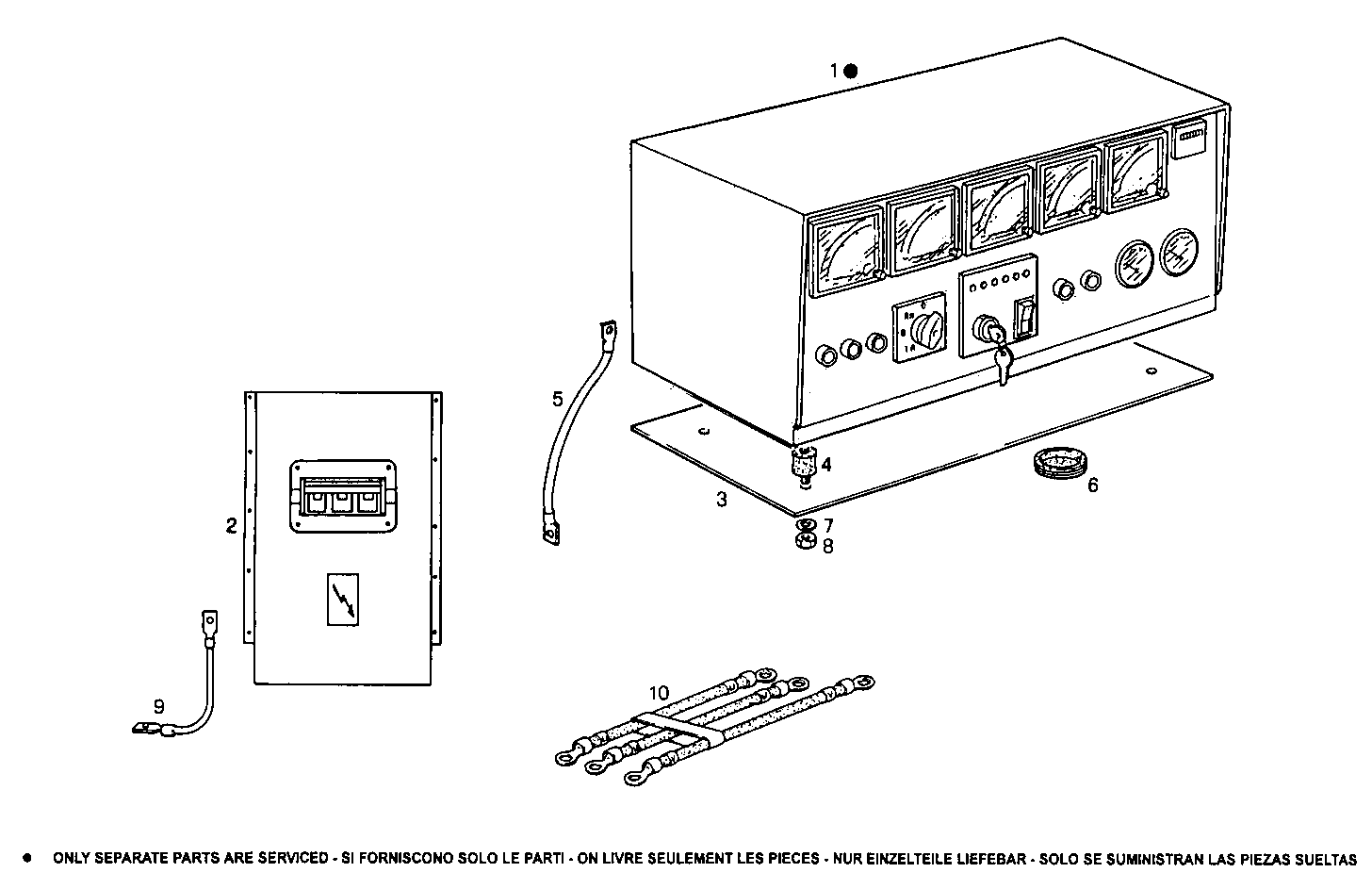

A60110055 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8018867 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 8007019 SWITCH 200A
3 8019139 COVER
4 8104155 DOWEL
5 8006993 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037821 HEXAGON NUT M6X1
9 8104707 WIRE/CABLE
10 8008335 EARTH WIRE
