GE7450Si16.05A905

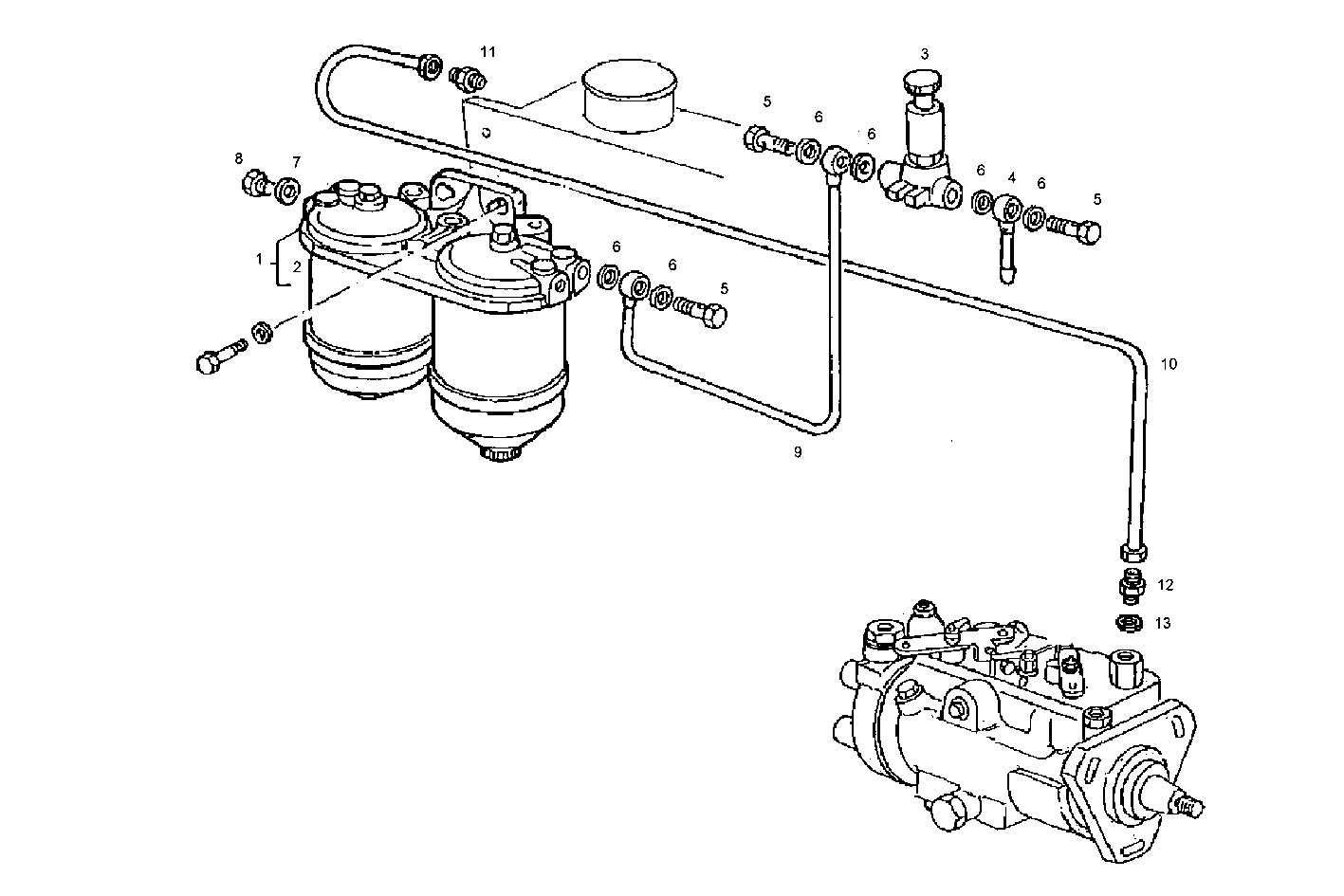

2030.087 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 98416659 FUEL FILTER ASSY
2 1901929 FUEL FILTER ELEM.
3 4797319 HAND PUMP ASSY
4 98404882 PIPE SOCKET Ø8 MM
5 4864083 SCREW CONNECTOR M14X1,5X30 MM
6 98474308 SEAL GASKET Ø14X22 MM
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 16992311 LOCK PLUG M14X1,5
9 8014056 FUEL LINE
10 8016057 FUEL LINE
11 8016056 THERMO-STARTER
12 8014066 PIPE SOCKET
13 17278081 O-RING Ø10,82X1,78 MM
