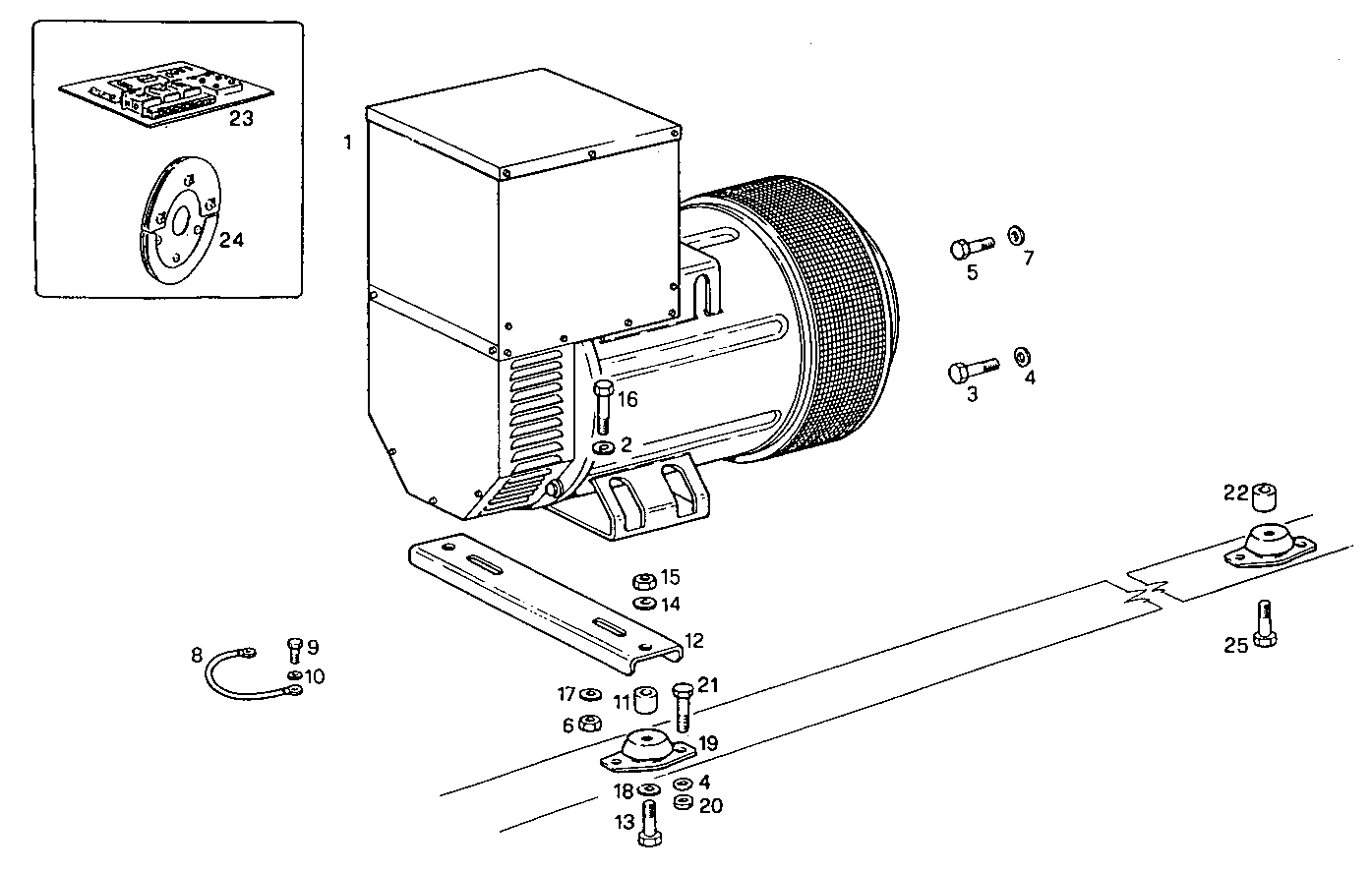

Item |
Part number |
Description |
1 |
8015000 |
ELECTRIC MACHINE ECN 34 SA/4 50-60HZ |
2 |
4279447 |
WASHER |
3 |
16608124 |
HEXAGON BOLT M10X1,5X50 MM |
4 |
17090174 |
SPRING WASHER Ø10X20 MM |
5 |
16607624 |
SCREW M10X25 |
6 |
17039321 |
NUT M20X2,5 |
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
8 |
8110852 |
EARTH WIRE |
9 |
16605424 |
SCREW M8X16 MM (8.8) |
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
11 |
8015985 |
SPACING BAR |
12 |
8015167 |
SUPPORT |
13 |
16614624 |
HEXAGON BOLT M16X40 MM |
14 |
17092374 |
SPRING WASHER Ø16X34X3,6 MM |
15 |
17038921 |
NUT M16X2 |
16 |
16617324 |
SCREW M20X55 |
17 |
17092774 |
WASHER Ø20X38X4,6 MM |
18 |
4929369 |
WASHER |
19 |
8016784 |
RUBBER PAD |
20 |
17038121 |
HEXAGON NUT M10 |
22 |
8016064 |
SPACING BAR |
23 |
8091776 |
EL.MACHINE VOLTAGE REGUL. MECC-ALTE |
24 |
8090799 |
EL.MACHINE DIODE MECC-ALTE |
25 |
16615224 |
HEXAGON BOLT M16X70 MM |
