GE7450Si16.05A905

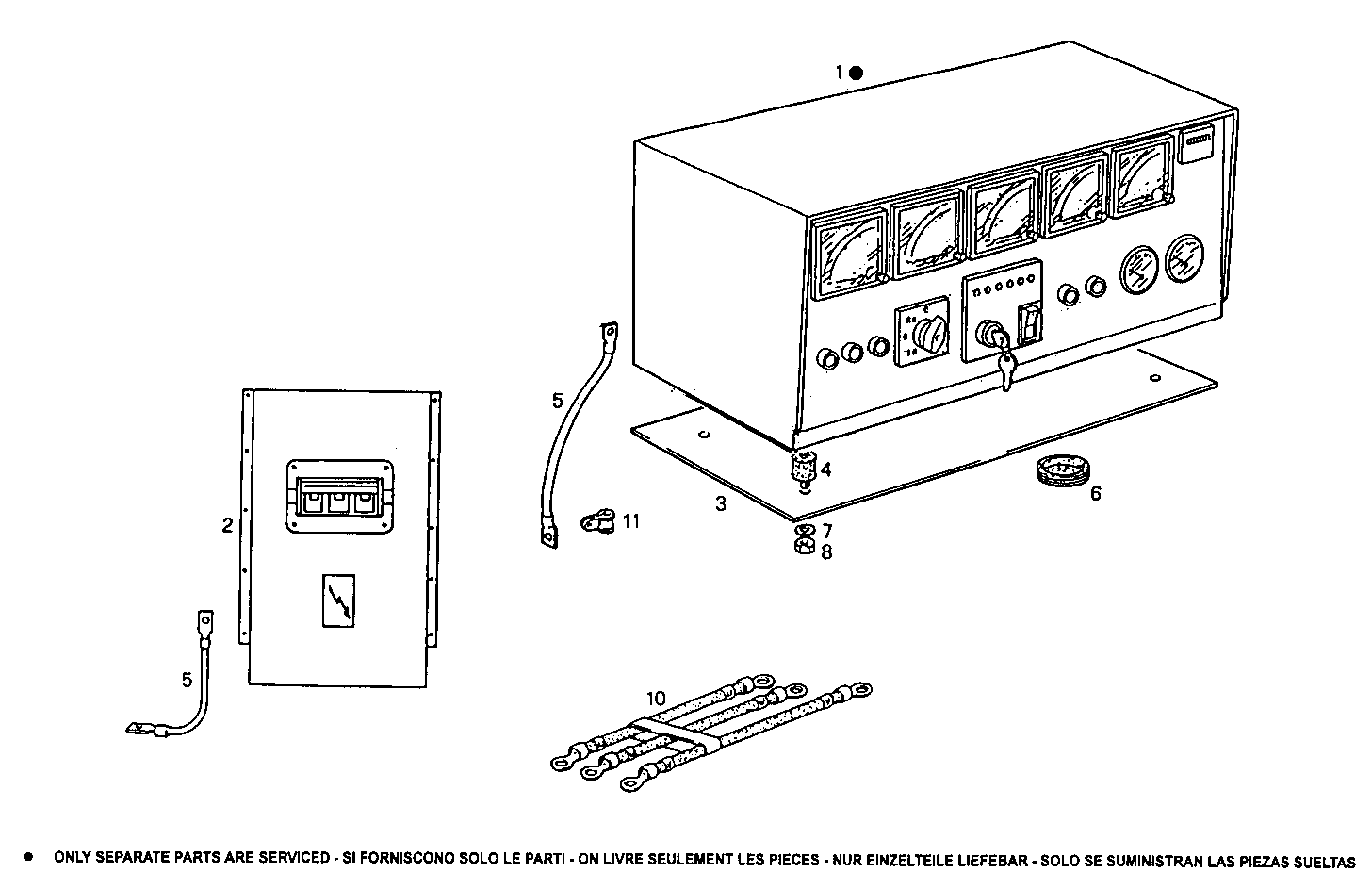

A60130033 MANUAL CONTROL BOARD FOR ELECT. MACHINE - MARELLI
Item | Part number | Description |
---|---|---|
1 | 8018867 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
2 | 8010121 | SWITCH 250A |
3 | 8019140 | COVER |
4 | 8104155 | DOWEL |
5 | 8110852 | EARTH WIRE |
6 | 8113214 | INSULATING RING |
7 | 17088474 | WASHER Ø6X12 MM |
8 | 17037821 | HEXAGON NUT M6X1 |
10 | 8010362 | EARTH WIRE |
11 | 17314890 | CLIP |
