GE7675i15.05A905

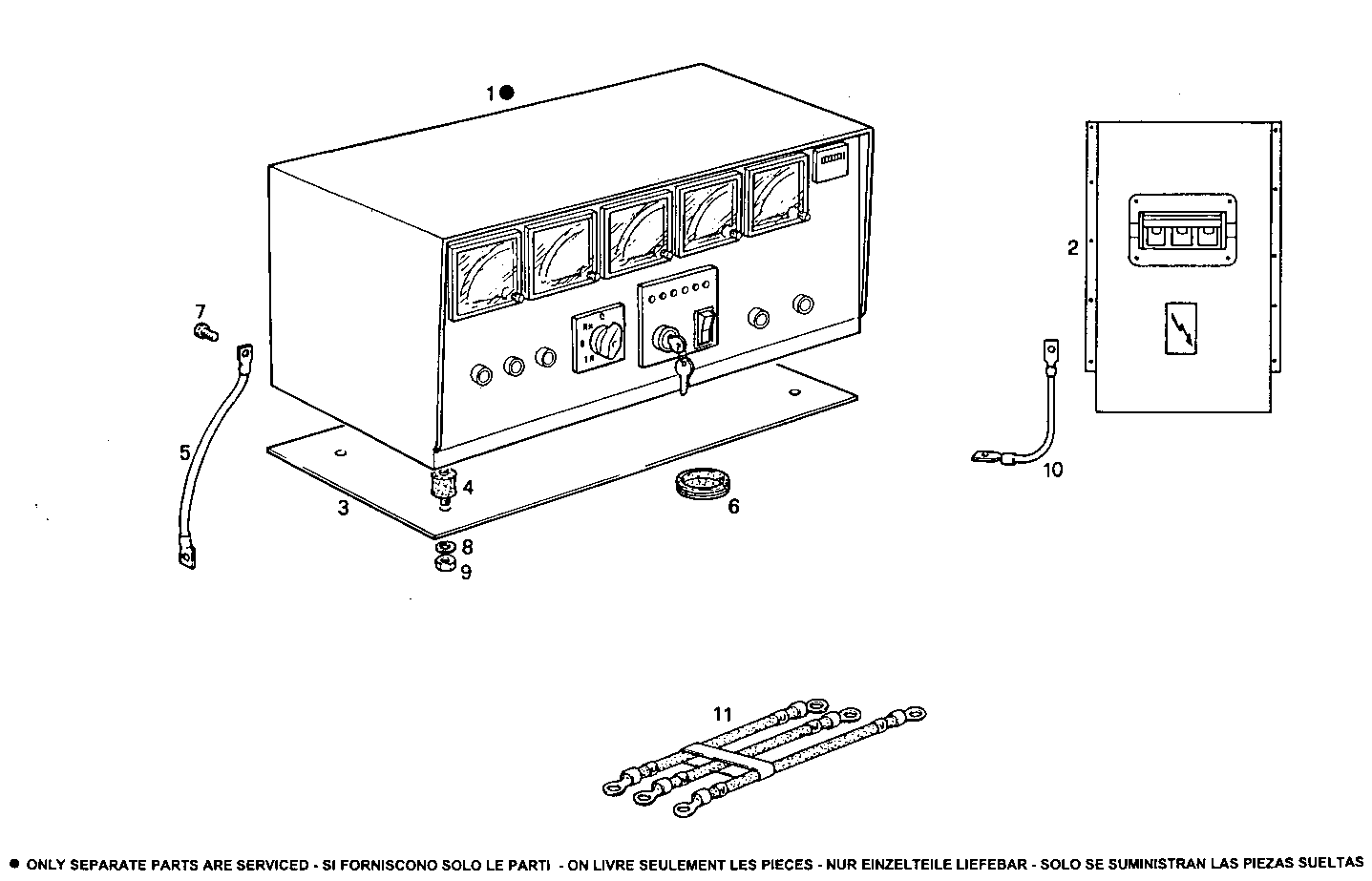

A60110073 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD
| Item | Part number | Description |
|---|---|---|
| 1 | 8018867 | CONTROL BOARD ASSY 220V/380V 50-60HZ |
| 2 | 8007019 | SWITCH 200A |
| 3 | 8019139 | COVER |
| 4 | 8104155 | DOWEL |
| 5 | 8006993 | EARTH WIRE |
| 6 | 8113214 | INSULATING RING |
| 7 | 16605524 | HEXAGON BOLT M8X20 MM |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 8104707 | WIRE/CABLE |
| 11 | 8008336 | EARTH WIRE |
