GE7675Si15.05A905

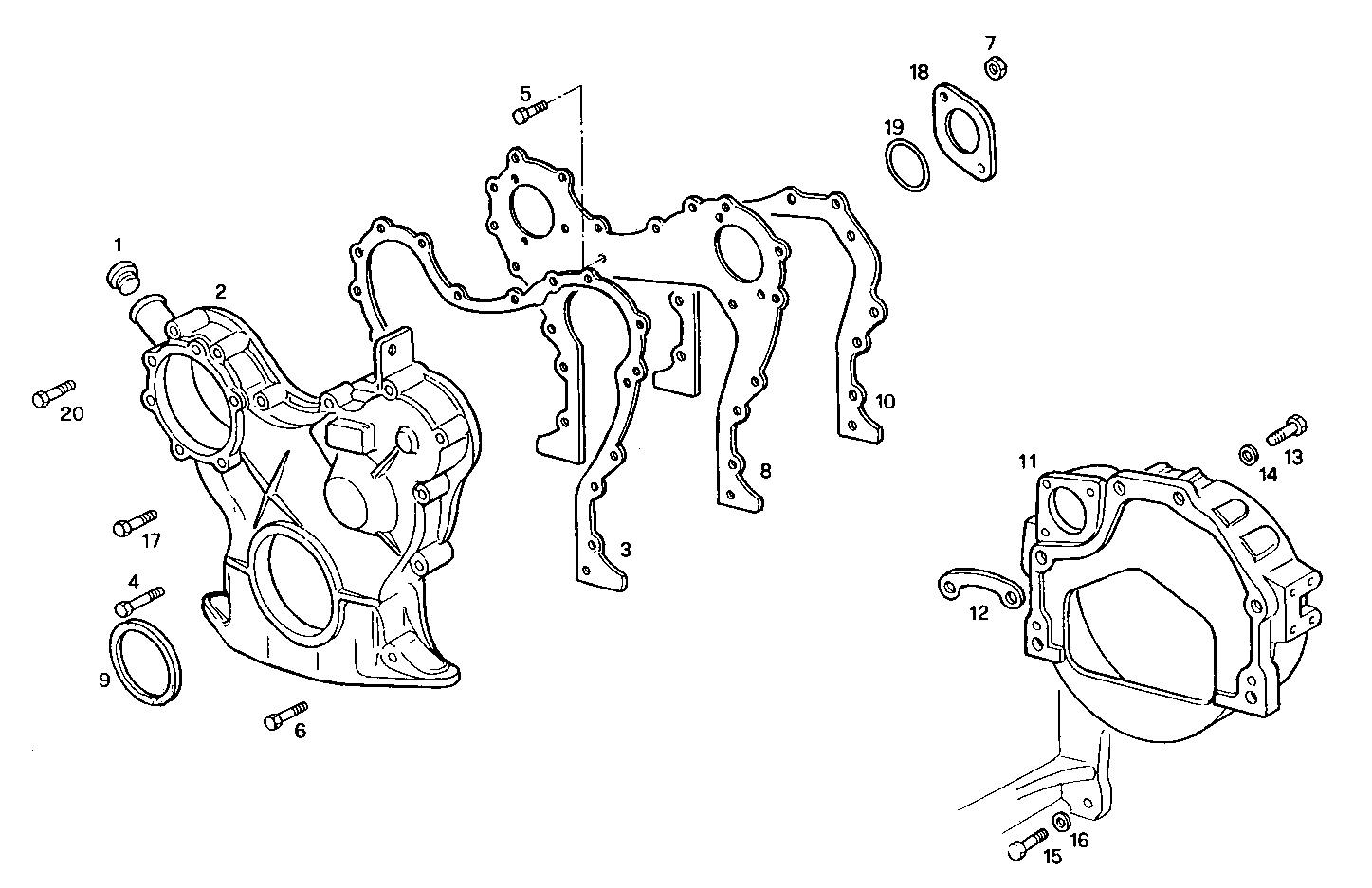

0430.096 INSERTED BOX ASSEM.
| Item | Part number | Description |
|---|---|---|
| 1 | 83907851 | PLUG |
| 2 | 87800077 | COVER |
| 3 | 83959876 | GASKET |
| 4 | 81867931 | SCREW |
| 5 | 81868845 | SCREW |
| 6 | 81876948 | SCREW |
| 7 | 81862931 | NUT |
| 8 | 83956701 | PLATE |
| 9 | 87800696 | OIL RETAINER |
| 10 | 83959396 | GASKET |
| 11 | 8012600 | FLYWHEEL HOUSING |
| 12 | 8015279 | SPACING BAR |
| 13 | 8014046 | SCREW |
| 14 | 17102134 | WASHER Ø20X30,6X4,5 MM |
| 15 | 16614924 | SCREW M16X55 |
| 16 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 17 | 83958244 | SCREW |
| 18 | 81803219 | COVER |
| 19 | 80510137 | O-RING |
| 20 | 81867943 | SCREW |
