GE7675Si15.05A905

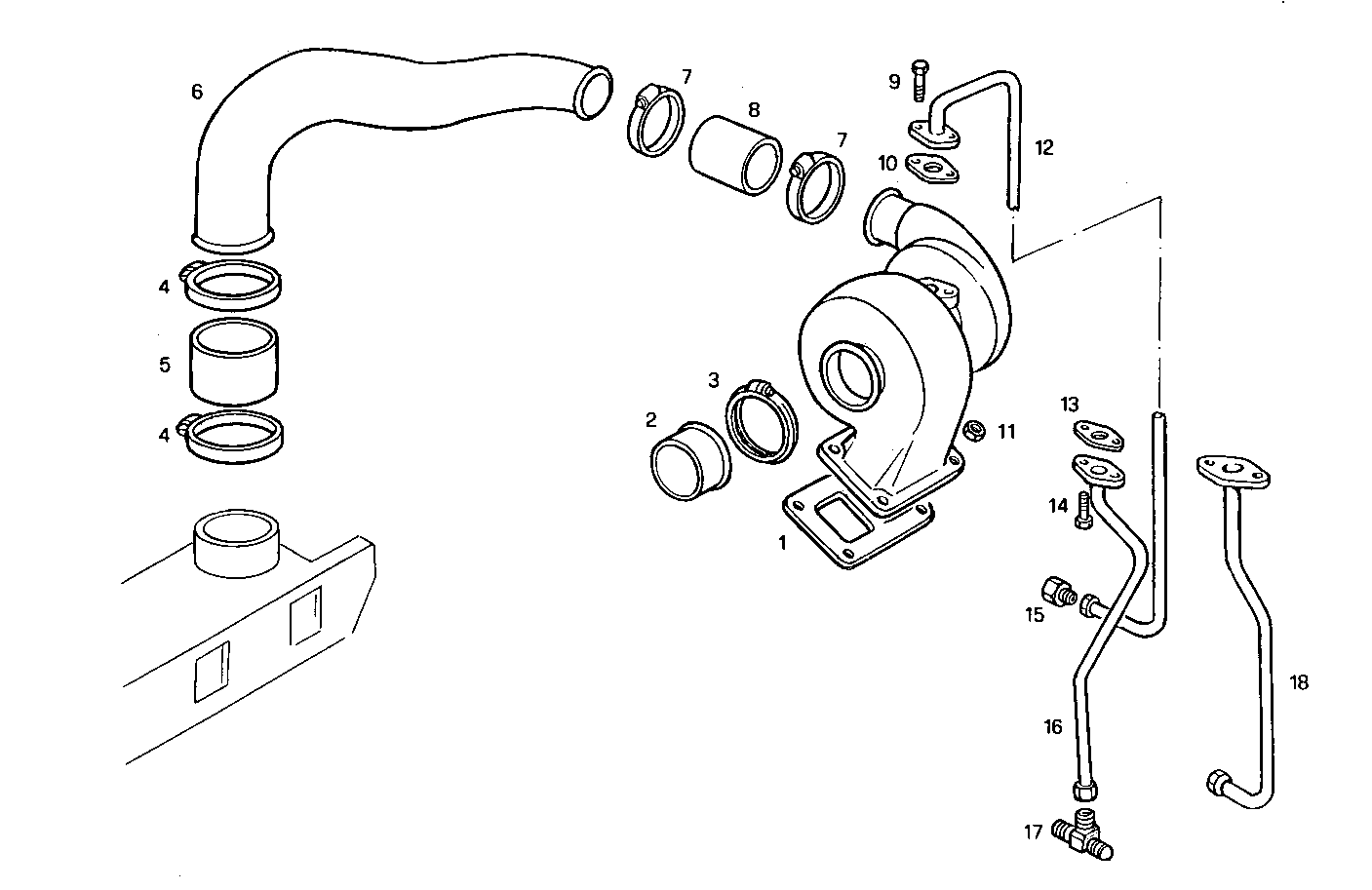

2420.102 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 83911642 | GASKET |
2 | 8014159 | FLANGE |
3 | 8015369 | CLIP |
4 | 81871498 | CLIP |
5 | 81862808 | RUBBER SLEEVE |
6 | 81879217 | INTAKE ELBOW |
7 | 81871496 | CLIP |
8 | 8015200 | RUBBER SLEEVE |
9 | 81879213 | SCREW |
10 | 83959841 | GASKET |
11 | 83993005 | NUT |
12 | 82852419 | OIL LINE |
13 | 83953341 | GASKET |
14 | 83908815 | SCREW |
15 | 81843887 | PIPE SOCKET |
16 | 82853712 | OIL LINE [from 05-97] |
17 | 81869032 | PIPE SOCKET |
18 | 81879214 | OIL LINE [up to 05-97] |
