GE7675Si15.05A905

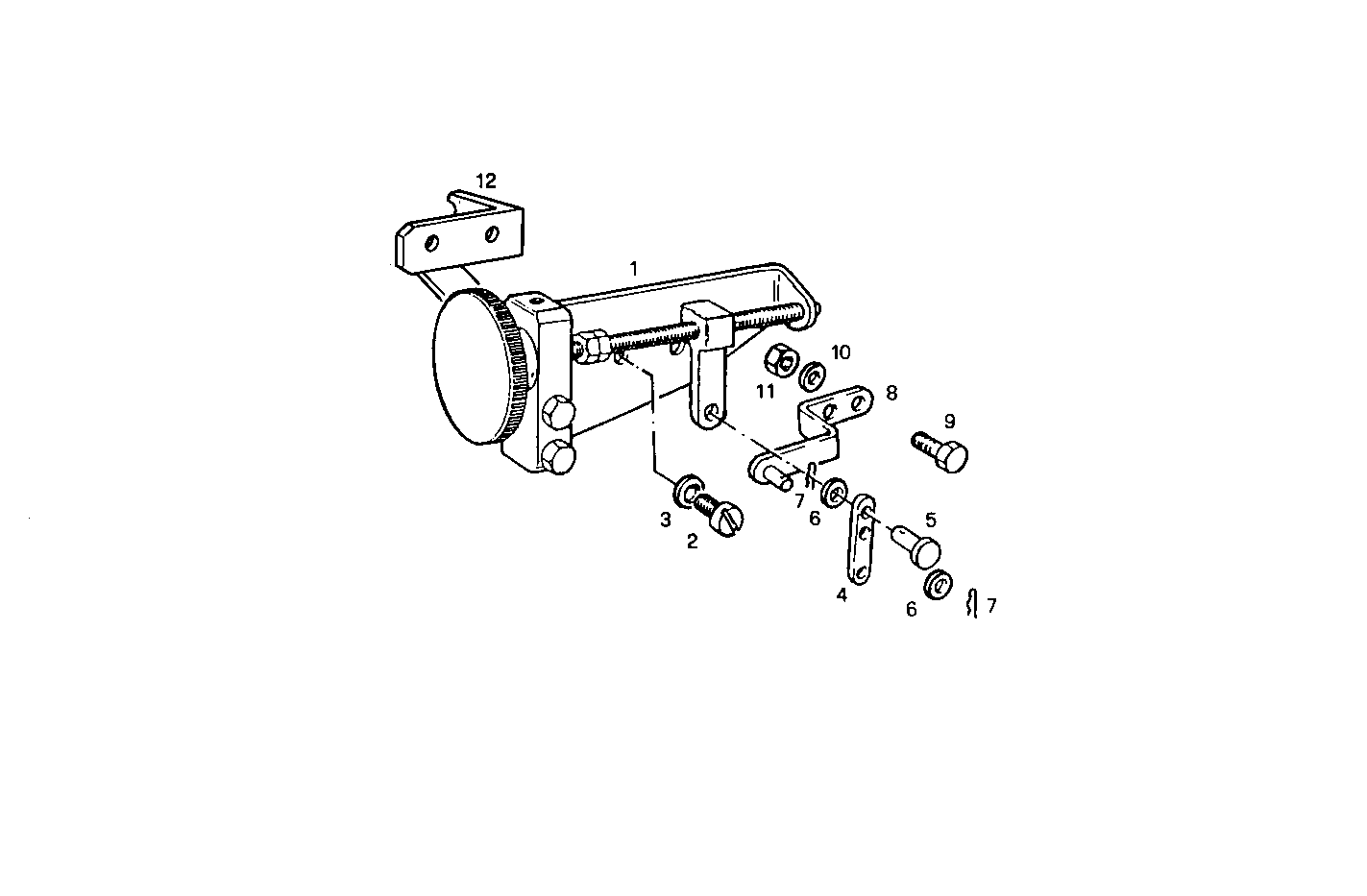

A24060013 PRECISION ADJUSTMENT ACCELERATOR - genset

Iveco/FPT PRECISION ADJUSTMENT ACCELERATOR

Item Part number Description
1 8012083 HAND ACCELERATOR
2 17133114 SCREW M6X12
3 10569279 WASHER Ø6X9,9X1,6 MM
4 8013480 CLEVIS
5 17718411 PIN Ø5 MM
6 17094504 WASHER Ø5,3X10 MM
7 16851301 SPLIT PIN
8 8014065 RETAINER
9 16603524 SCREW M6X12 MM (8.8)
10 17088474 WASHER Ø6X12 MM
11 17037821 HEXAGON NUT M6X1
12 8014058 SUPPORT
