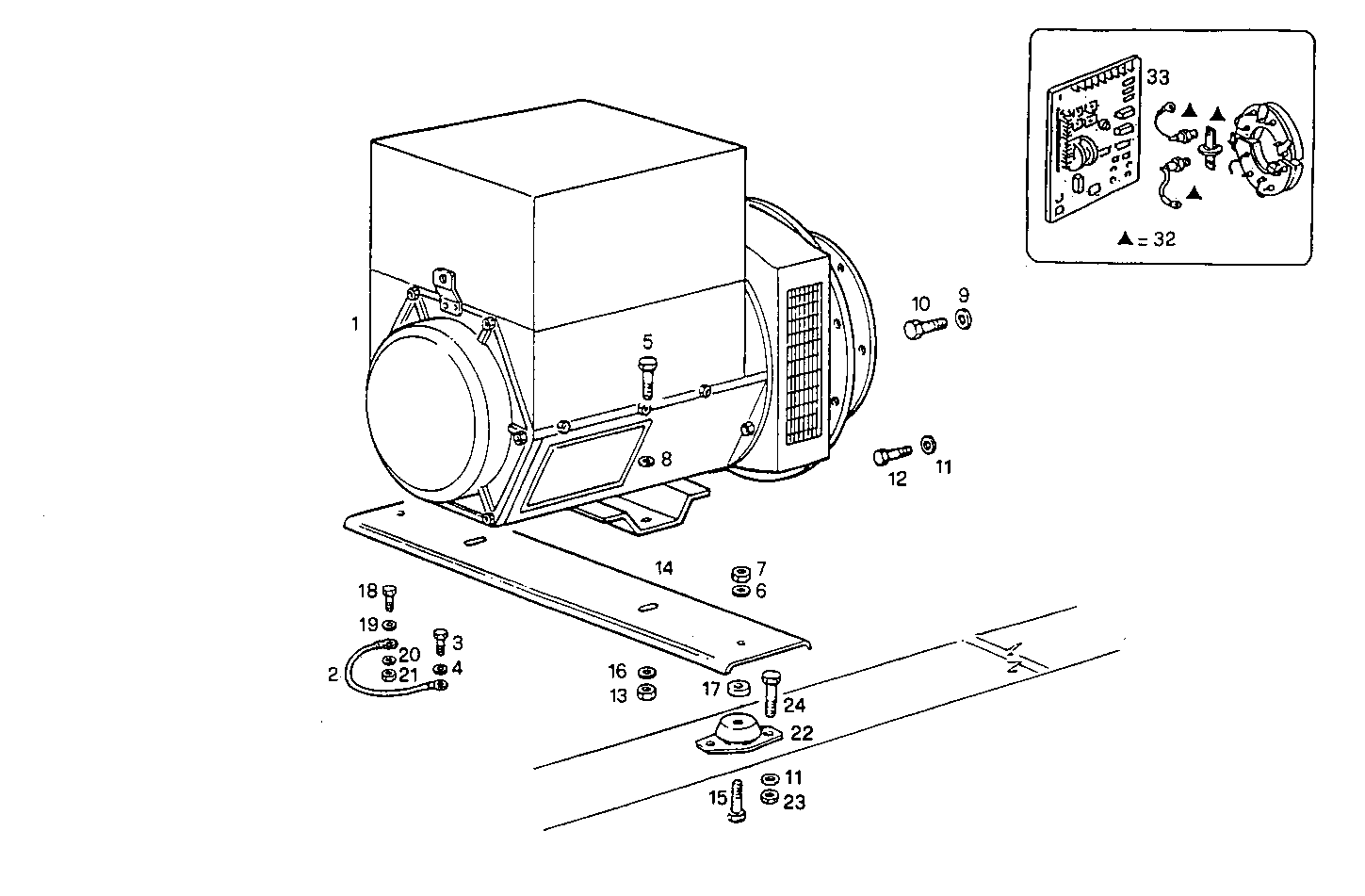

Item |
Part number |
Description |
1 |
8015606 |
ELECTRIC MACHINE UCI 274 C 14 50-60HZ |
2 |
8104707 |
WIRE/CABLE |
3 |
16043124 |
SCREW M8X14 MM |
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 |
16617224 |
SCREW M20X50 |
6 |
17093174 |
WASHER Ø24X46X5,4 MM |
7 |
17039721 |
HEXAGON NUT M24 |
8 |
4279447 |
WASHER |
9 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
10 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
11 |
17090174 |
SPRING WASHER Ø10X20 MM |
12 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
13 |
17039421 |
NUT M20X1,5 |
14 |
8015167 |
SUPPORT |
15 |
16620224 |
SCREW M24X90 |
16 |
17092774 |
WASHER Ø20X38X4,6 MM |
17 |
8016025 |
SPACING BAR |
18 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
19 |
17095004 |
WASHER Ø10X18X2 MM |
20 |
17710274 |
WASHER |
21 |
17038121 |
HEXAGON NUT M10 |
22 |
8016784 |
RUBBER PAD |
24 |
16607624 |
SCREW M10X25 |
32 |
8092769 |
KIT-GENERATOR Stamford |
33 |
8106738 |
EL.MACHINE VOLTAGE REGUL. Stamford |
