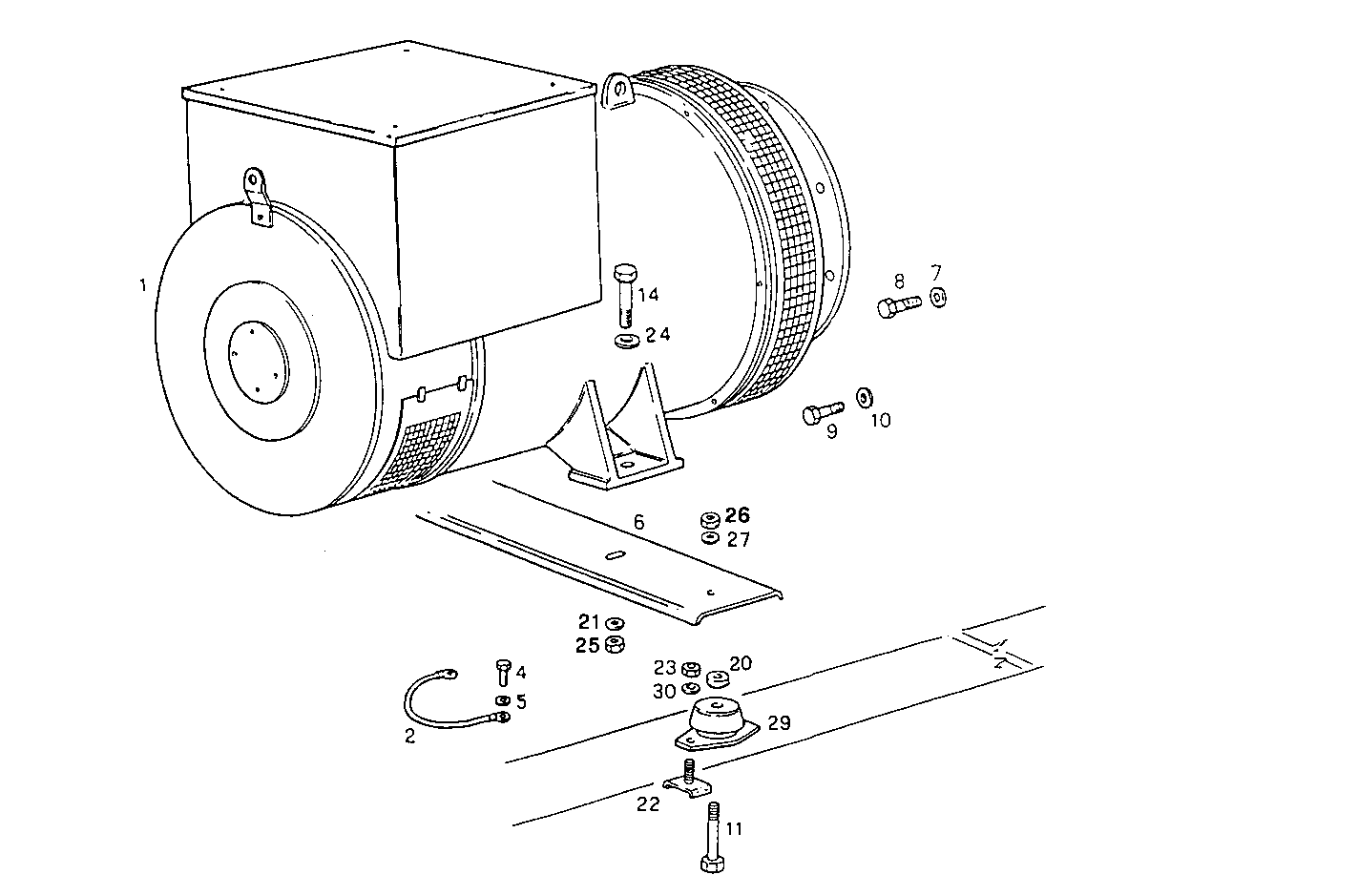

Item |
Part number |
Description |
1 |
8027682 |
ELECTRIC MACHINE LSA 442 VS4 50-60HZ |
2 |
8110852 |
EARTH WIRE |
4 |
16043124 |
SCREW M8X14 MM |
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
6 |
8015167 |
SUPPORT |
7 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
8 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
9 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
10 |
17090174 |
SPRING WASHER Ø10X20 MM |
11 |
16620124 |
SCREW M24X3X80 |
14 |
16614924 |
SCREW M16X55 |
20 |
8005402 |
SPACING BAR 35MM |
21 |
17092174 |
SPRING WASHER Ø16X32X3,4 |
22 |
8016024 |
SCREW |
23 |
17038121 |
HEXAGON NUT M10 |
24 |
4929369 |
WASHER |
25 |
17038921 |
NUT M16X2 |
26 |
17039721 |
HEXAGON NUT M24 |
27 |
17093174 |
WASHER Ø24X46X5,4 MM |
29 |
4911960 |
RUBBER PAD |
30 |
17090974 |
SPRING WASHER Ø12X24 MM |
