Item |
Part number |
Description |

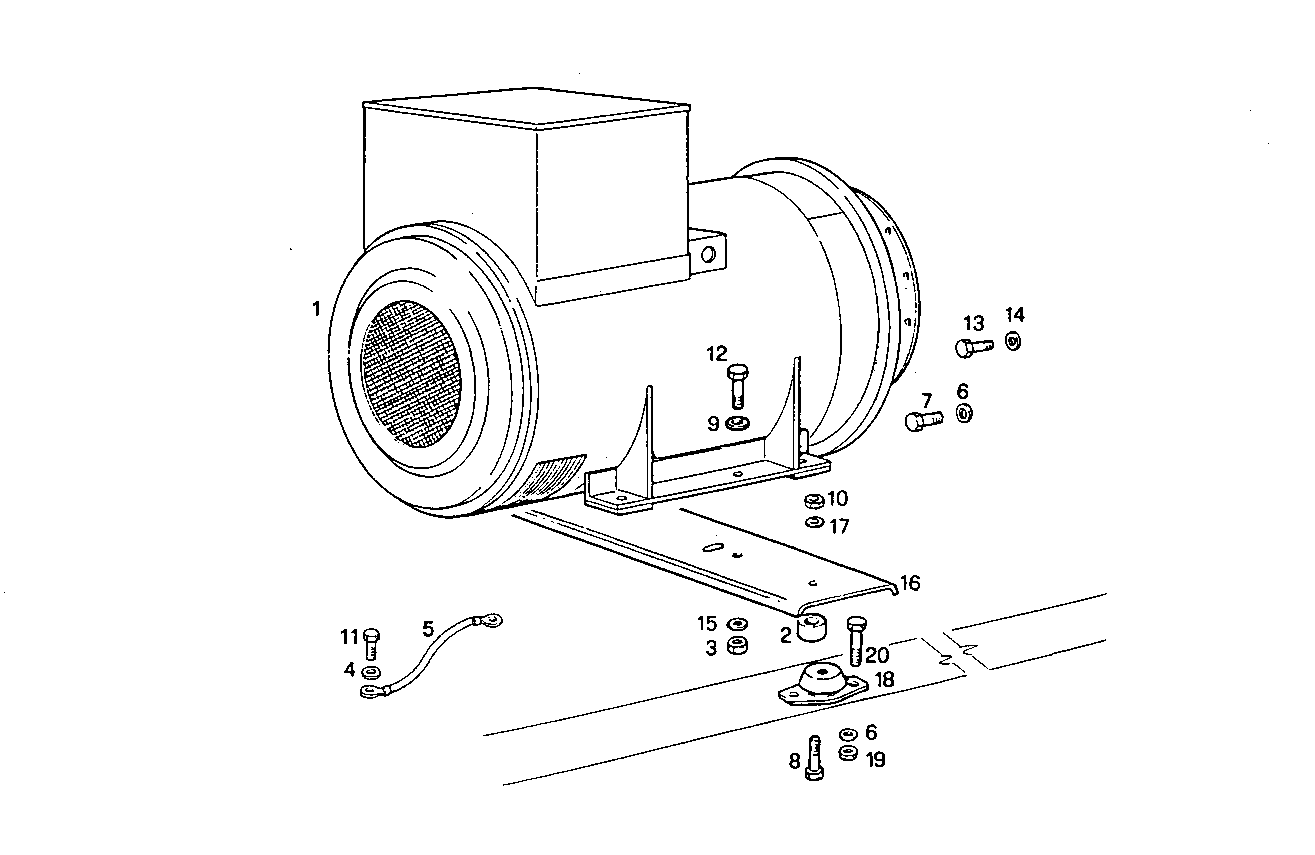

1 |
8009784 |
ELECTRIC MACHINE M7B 250 SA/4 50-60HZ |
2 |
8015985 |
SPACING BAR |
3 |
17039321 |
NUT M20X2,5 |
4 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
5 |
8104707 |
WIRE/CABLE |
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
7 |
16607824 |
HEXAGON BOLT M10X35 MM (8.8) |
8 |
16620424 |
HEXAGON BOLT M24X110 MM |
9 |
17092774 |
WASHER Ø20X38X4,6 MM |
10 |
17039721 |
HEXAGON NUT M24 |
11 |
16043124 |
SCREW M8X14 MM |
12 |
16614724 |
SCREW M16X45 |
13 |
16607524 |
HEXAGON BOLT M10X1,5X20 MM (8.8) |
14 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
15 |
4279447 |
WASHER |
16 |
8015167 |
SUPPORT |
17 |
17093174 |
WASHER Ø24X46X5,4 MM |
18 |
8016784 |
RUBBER PAD |
19 |
17038121 |
HEXAGON NUT M10 |
20 |
16607624 |
SCREW M10X25 |
