GE7675Si15.05A905

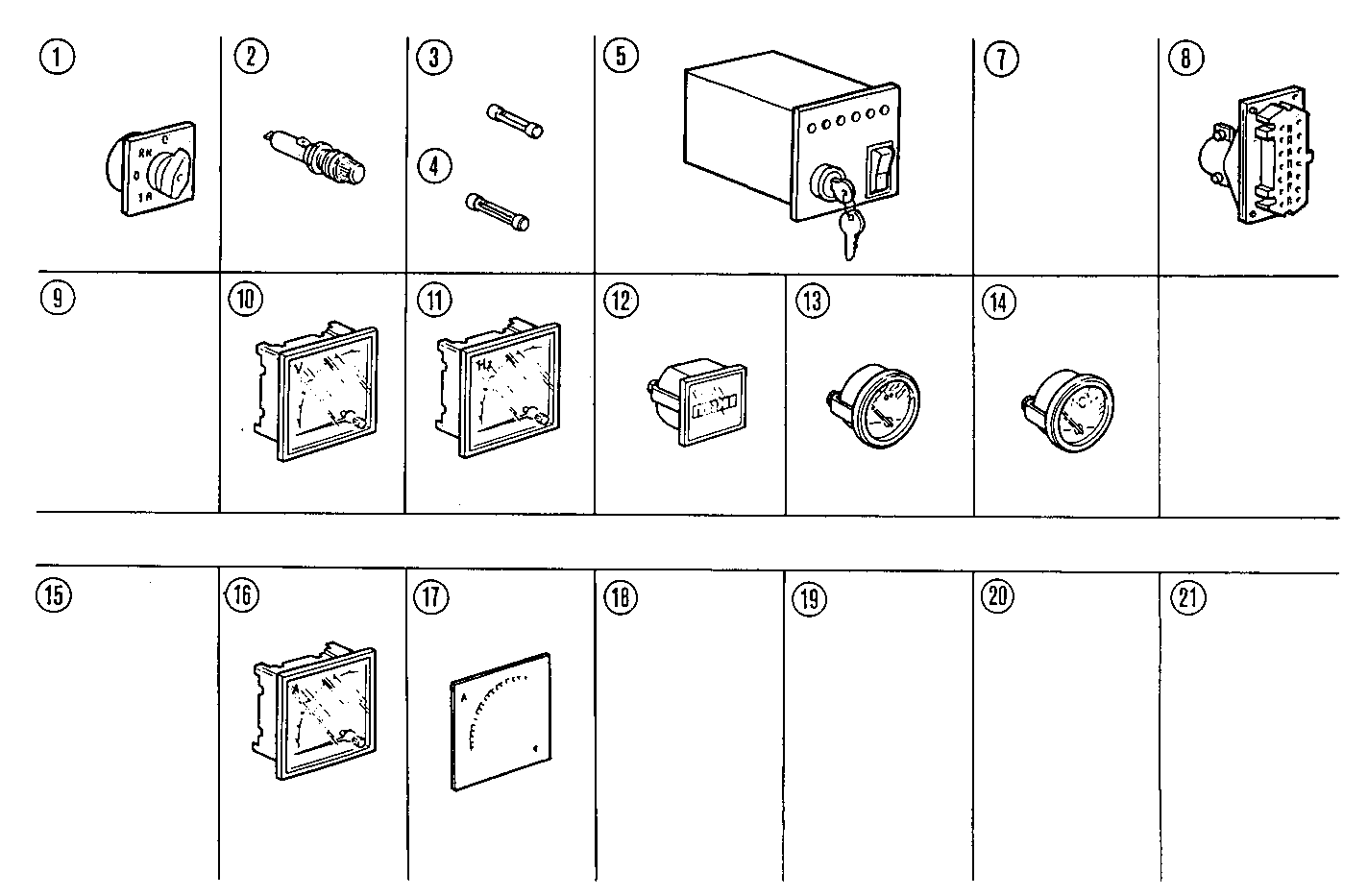

T0021064 MANUAL CONTROL BOARD - (components)
| Item | Part number | Description |
|---|---|---|
| 1 | 8104624 | SWITCH |
| 2 | 8105267 | FUSE BOX 2A |
| 3 | 8105268 | FUSE 2A |
| 4 | 8105216 | FUSE 10A |
| 5 | 8092698 | ELECTRONIC CARD |
| 8 | 8008930 | CONNECTION [from ...] |
| 10 | 8109465 | VOLTMETER |
| 10 | 8100665 | VOLTMETER |
| 11 | 8100632 | FREQUENCYMETER |
| 11 | 8109466 | FREQUENCYMETER |
| 12 | 8090251 | HOURMETER |
| 13 | 8105108 | THERMOMETER |
| 14 | 8105109 | PRESSURE GAUGE |
| 16 | 8110809 | AMMETER |
| 16 | 8090904 | AMMETER |
| 17 | 8110956 | STOP PLATE 400A - 800A |
