GE8031i05.05A901

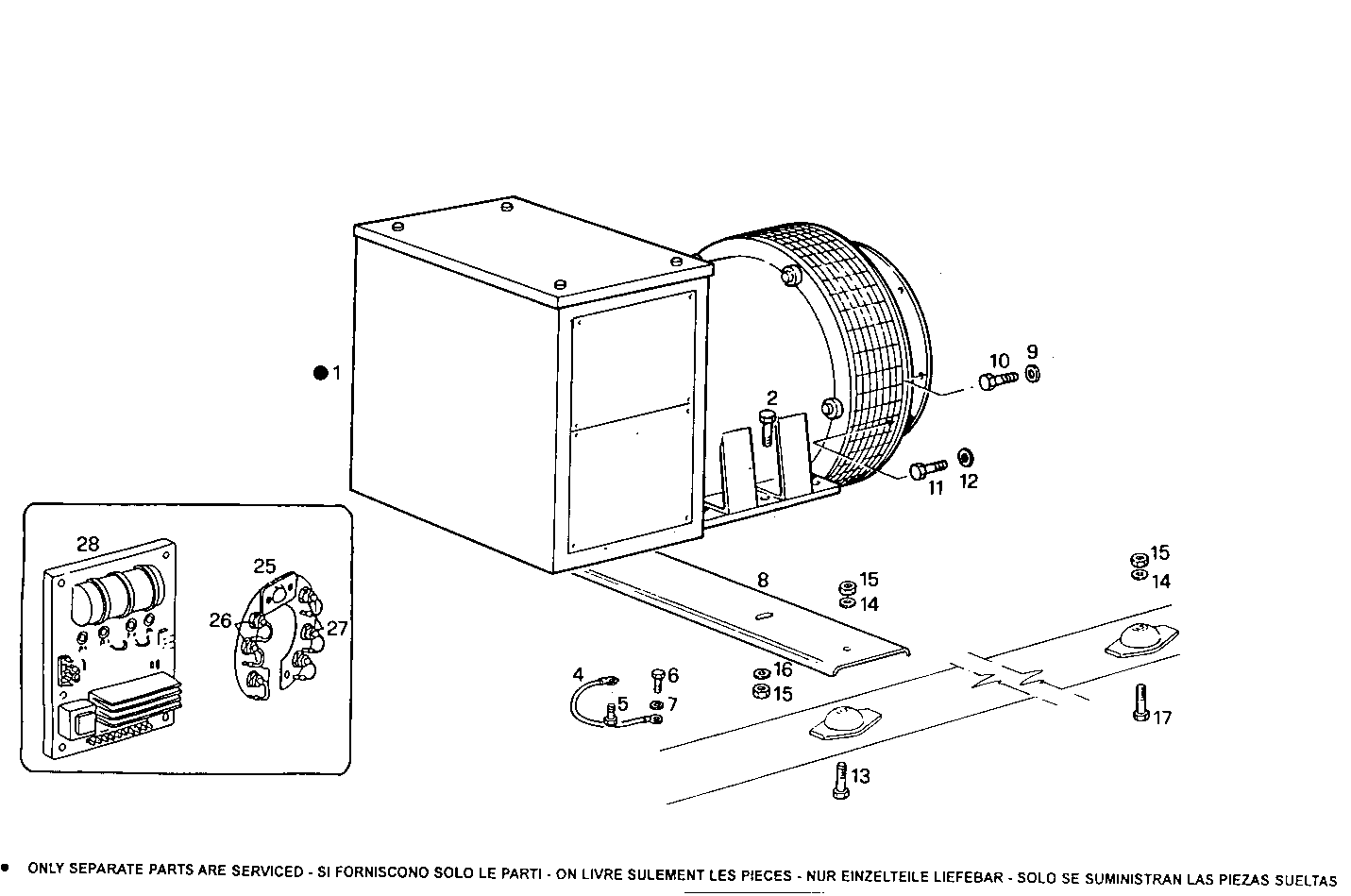

A37110013 SINGLE BEARING ELECTRIC MACHINE - LEROY

Iveco/FPT SINGLE BEARING ELECTRIC MACHINE

Item Part number Description
1 8110067 ELECTRIC MACHINE LSA 420 M3 60HZ
2 15541721 HEXAGON BOLT M12X1,25X110 MM
4 8107222 EARTH WIRE
5 10902421 HEXAGON BOLT M6X20 MM
6 16043124 SCREW M8X14 MM
7 11193879 SPRING WASHER Ø8X16 MM
8 8109282 SUPPORT
9 10516879 WASHER Ø10X18X2 MM
10 15970521 HEXAGON BOLT M10X20 MM
11 11306921 SCREW M10X1,25X30
12 11198379 SPRING WASHER Ø10X20 MM SP=2,6
13 15541621 HEXAGON BOLT M12X1,25X100 MM
14 11198779 SPRING WASHER Ø13 MM
15 16101511 HEXAGON NUT M12X1,25
16 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
17 15540621 HEXAGON BOLT M12X40 MM
25 8091778 SUPPRESSOR
26 8090760 EL.MACHINE DIODE -
27 8090759 EL.MACHINE DIODE +
28 8090756 EL.MACHINE VOLTAGE REGUL.
