GE8031i05.05A905

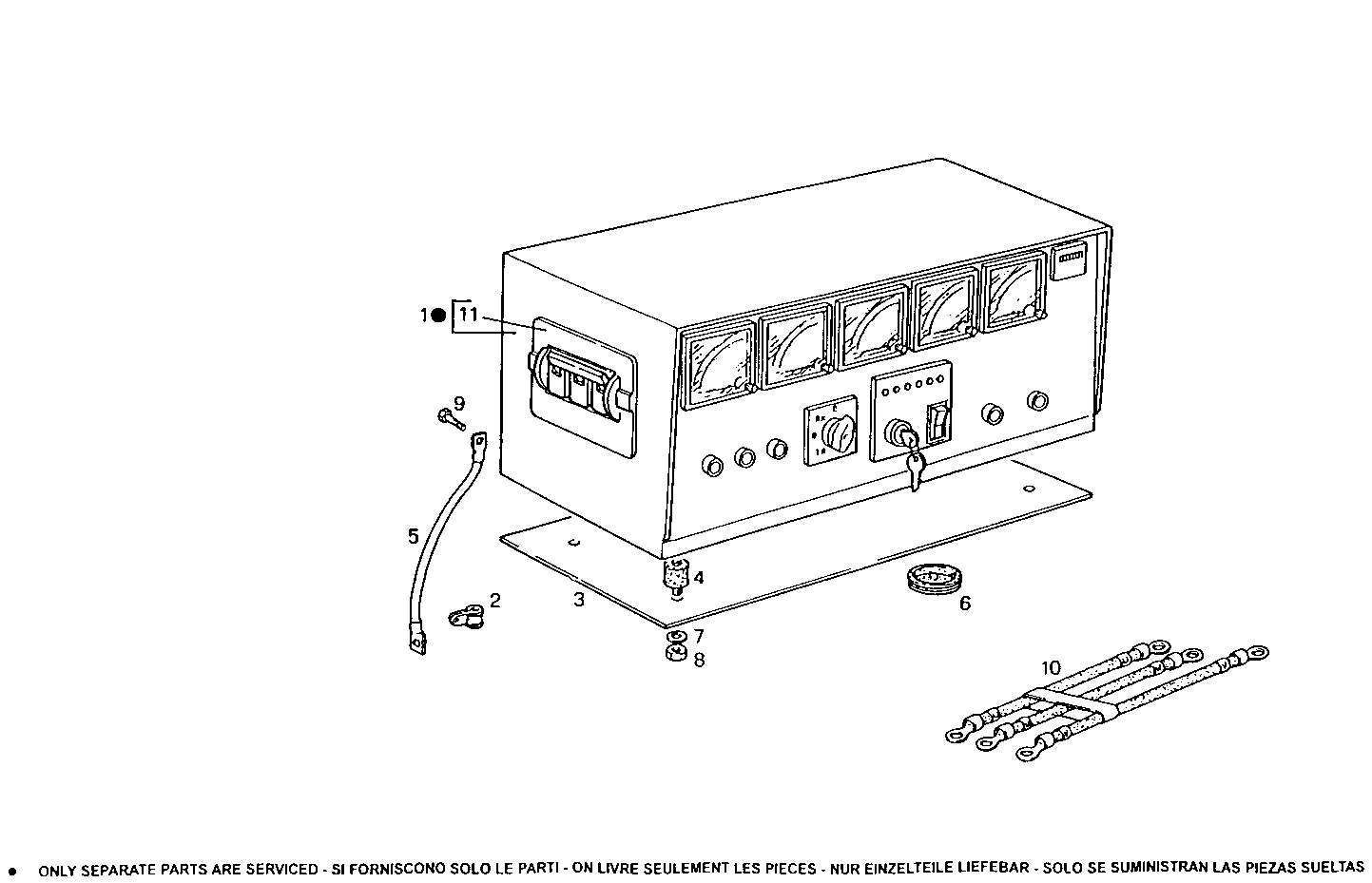

A60110050 MANUAL CONTROL BOARD FOR ELECT. MACHINE - STAMFORD

Iveco/FPT MANUAL CONTROL BOARD FOR ELECT. MACHINE

Item Part number Description
1 8018836 CONTROL BOARD ASSY 220V/380V 50-60HZ
2 17314990 FASTENING BRACKET
3 8019130 COVER
4 8018462 RUBBER PAD
5 8110792 EARTH WIRE
6 8113214 INSULATING RING
7 17088474 WASHER Ø6X12 MM
8 17037721 NUT M5X0,8
9 16603724 HEXAGON BOLT M6X20 MM (8.8)
10 8020863 WIRE/CABLE
11 8110803 SWITCH
